Intel NUC Board NUC5i5MYBE Technical Product Specification
34
1.10.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 8).
Item
Description
A
Link LED (Green)
B
Data Rate LED (Green/Yellow)

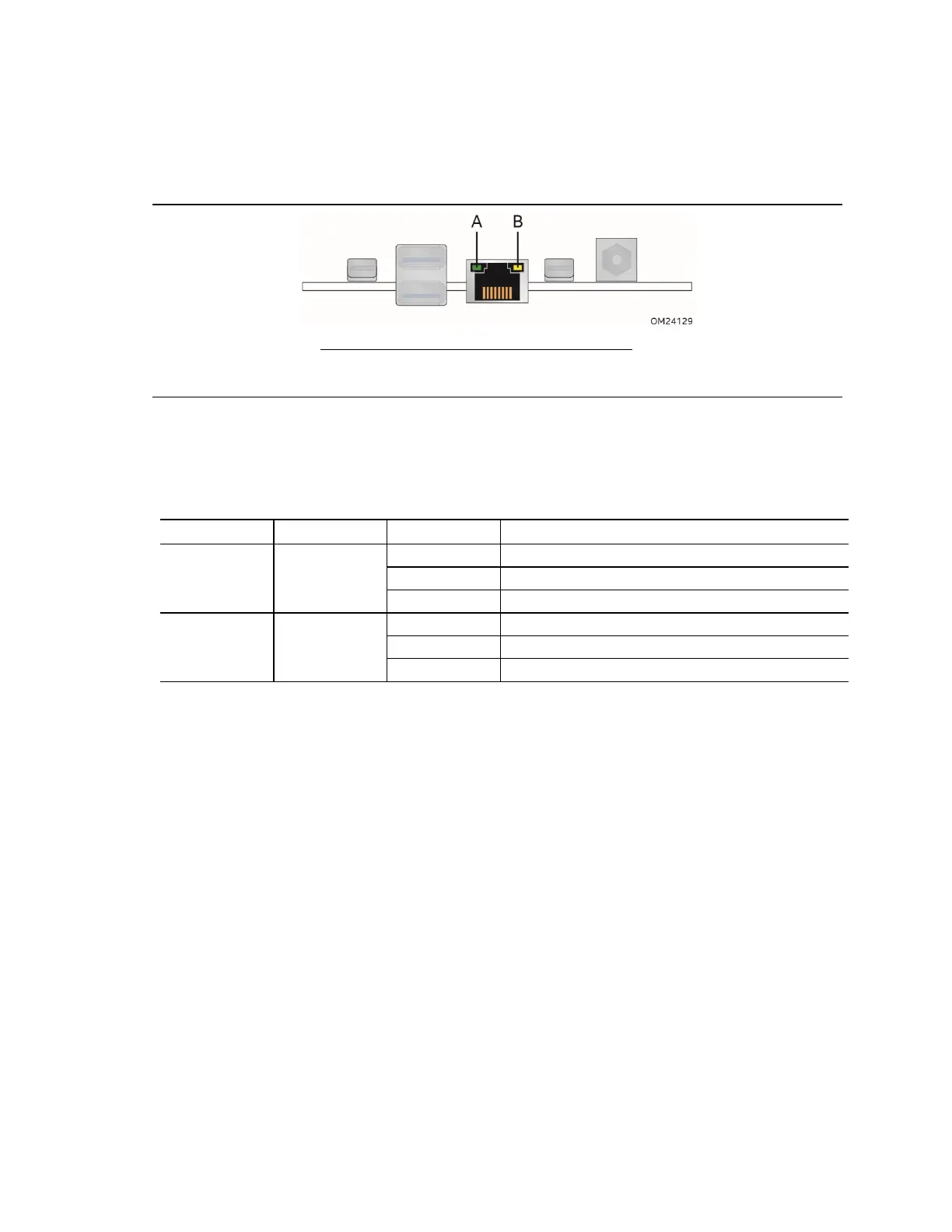

Figure 8. LAN Connector LED Locations
Table 12 describes the LED states when the board is powered up and the LAN subsystem is
operating.
Table 12. LAN Connector LED States
LED
LED Color
LED State
Condition
Link Green
Off
LAN link is not established.
On LAN link is established.
Blinking
LAN activity is occurring.
Data Rate Green/Yellow
Off
10 Mb/s data rate is selected.
Green
100 Mb/s data rate is selected.
Yellow 1000 Mb/s data rate is selected.
