Intel NUC Board NUC5i5MYBE Technical Product Specification
48
This section describes the board’s connectors and headers. The connectors and headers can be
divided into these groups:
• Front panel I/O connectors
• Back panel I/O connectors
• On-board I/O connectors and headers (see pages 49 and 50)
NOTE
Unless otherwise noted, all 2.0 mm headers are dual-row, straight, surface mount with each two-
pin section measuring 2.0 mm x 4.0 mm, with a pin height of 4.0 mm.
2.2.1 Front Panel Connectors

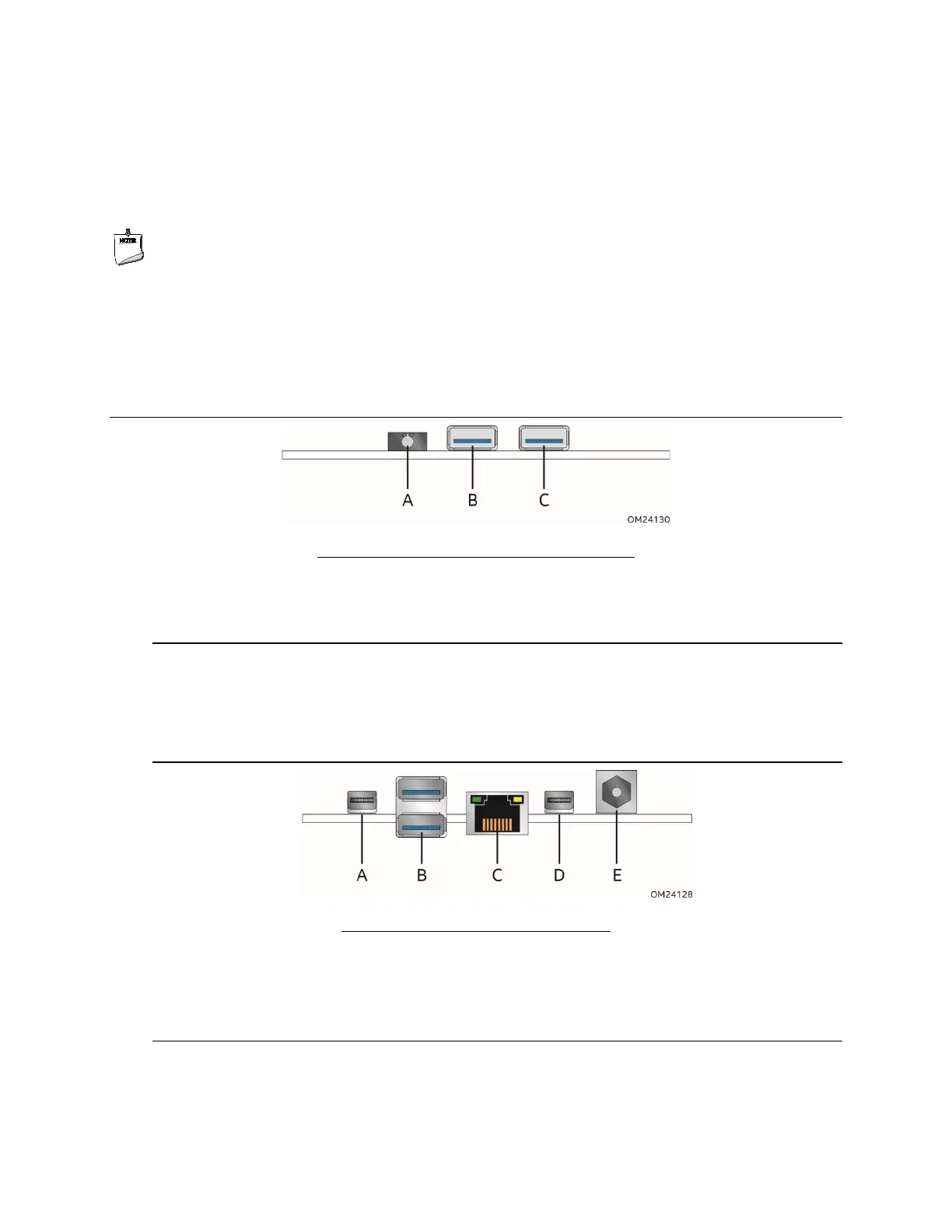

Figure 11 shows the location of the front panel connectors for the board.
Item
Description
A Front panel stereo microphone/
headphone jack
B USB 3.0 port
C USB 3.0 port
Figure 11. Front Panel Connectors
2.2.2 Back Panel Connectors
Figure 12 shows the location of the back panel connectors for the board.
Item
Description
A Mini DisplayPort connector
B USB 3.0 ports
C
LAN
D Mini DisplayPort connector
E
12-19 V DC input jack
Figure 12. Back Panel Connectors
