Intel NUC Board NUC5i5MYBE Technical Product Specification

1.11.3 Thermal Solution

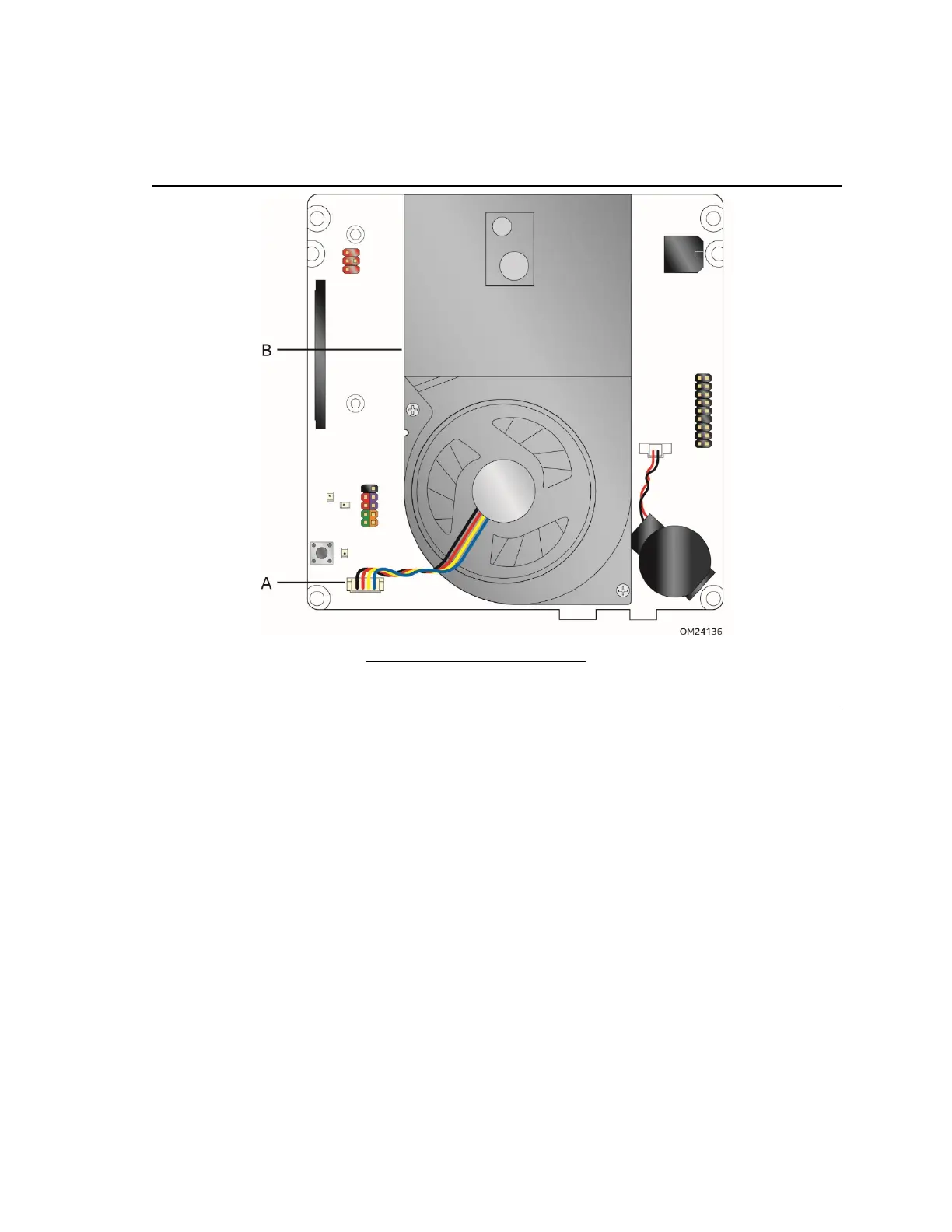

Figure 9 shows the location of the thermal solution and processor fan header.

Item

Description

Processor fan header

Thermal solution

Figure 9. Thermal Solution and Fan Header
