1.5.1.7 Flat Panel Display Interfaces

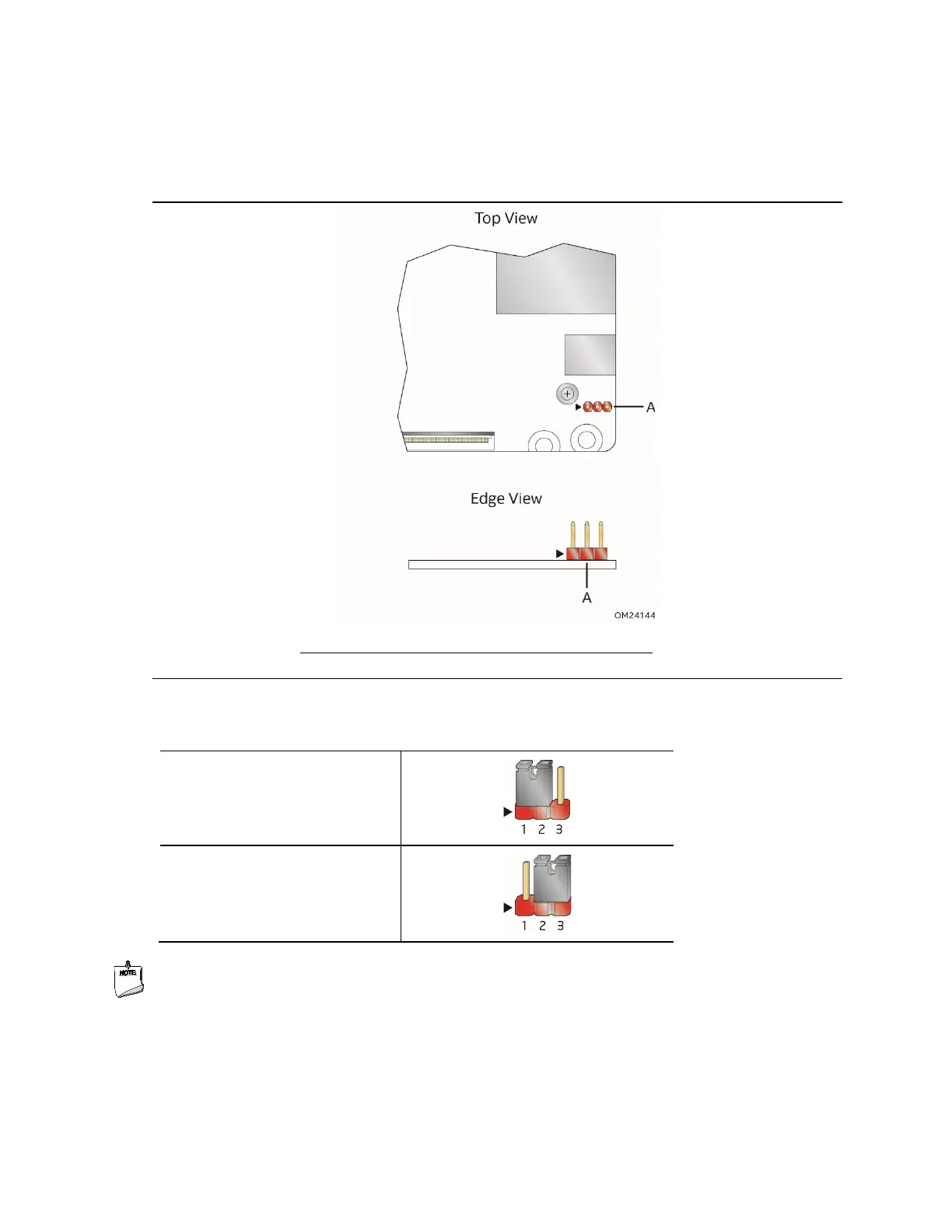

The board supports flat panel displays via the Embedded DisplayPort interface. Figure 5 shows
the flat panel connector on the bottom-side of the board.
Item
Description
A Backlight inverter voltage selection header
Figure 5. Flat Panel Connector on Bottom-side of the Board
Table 8. Backlight Inverter Voltage Selection Header Jumper Positions
5 Vsby ± 5% (2.0A)
(Vin) 19V ± 5% (2.0A)
NOTE
Backlight inverter voltage option “Vin” refers to board input voltage as provided to board power
input connector.
