Product Description
19
1.1.4 Block Diagram

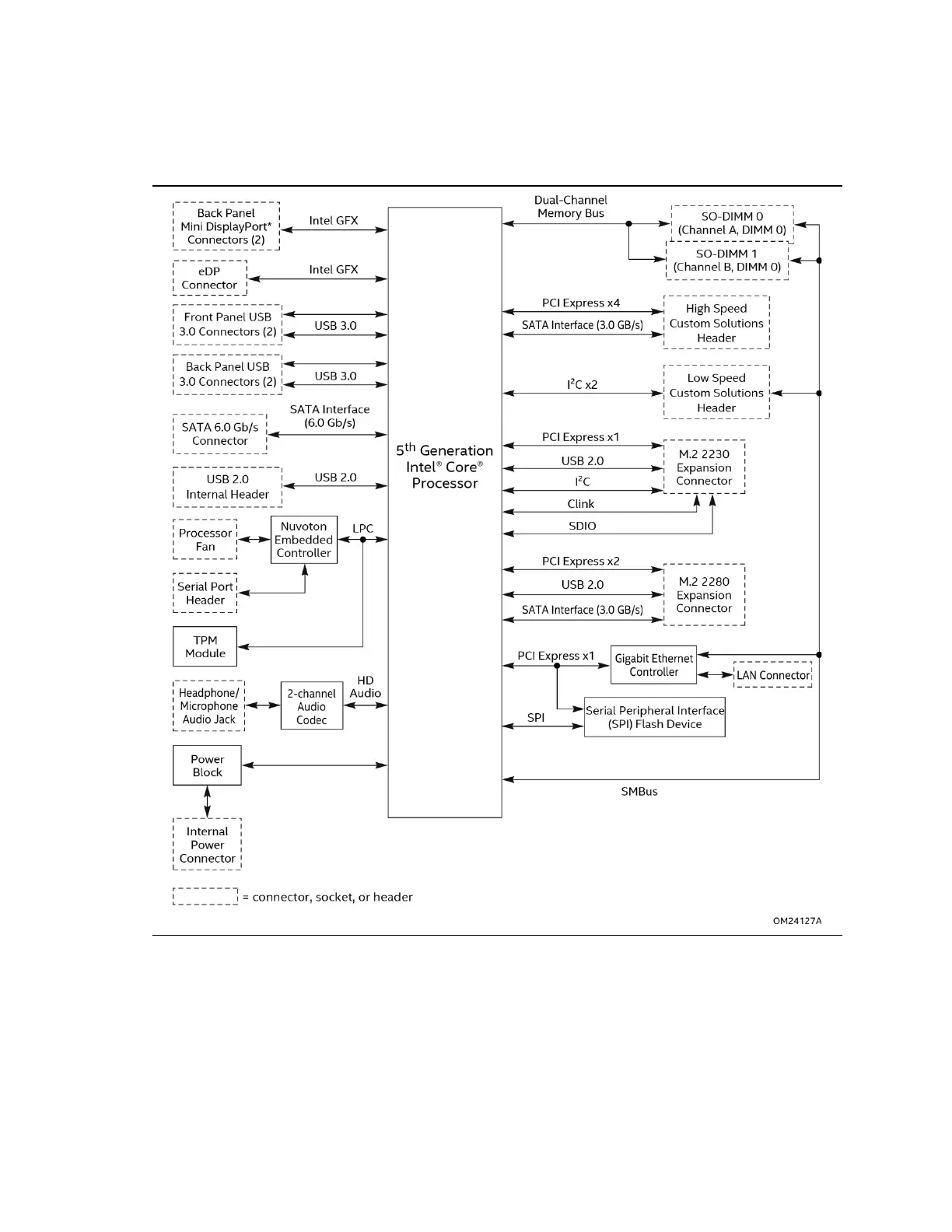

Figure 3 is a block diagram of the major functional areas of the board.
Figure 3. Block Diagram
