Intel NUC5i5MYBE - Localized High Temperature Zones

96 pages

To Next Page

To Previous Page

Technical Reference

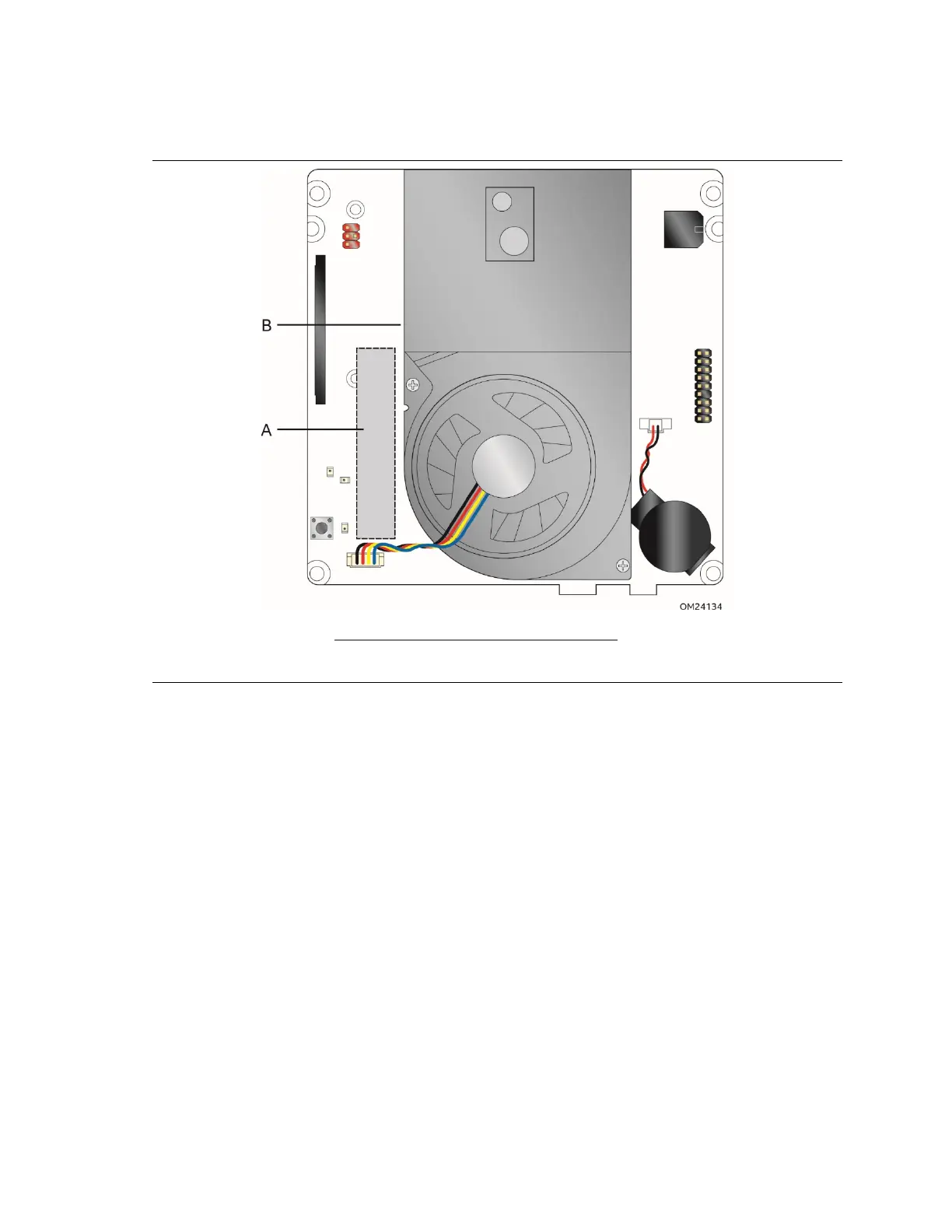

Figure 23 shows the locations of the localized high temperature zones.

Item Description

A Processor voltage regulator area

Thermal solution

Figure 23. Localized High Temperature Zones
