The location of the front panel USB headers
Figure 2, page 17
1.7 SATA Interface
The board provides the following SATA interfaces:
• One internal M.2 SATA port (Type 2242 and Type 2280 Modules) for SSD support
• One SATA 6.0 Gb/s port (blue)
The PCH provides independent SATA ports with a theoretical maximum transfer rate of 6 Gb/s. A
point-to-point interface is used for host to device connections.
1.7.1 SATA Disk-on-Module (DOM) Voltage Selection Header
The board provides support for SATA Disk-on-Module (DOM) via a user-selectable voltage level
on SATA data pin 7. See Table 11 for more details.

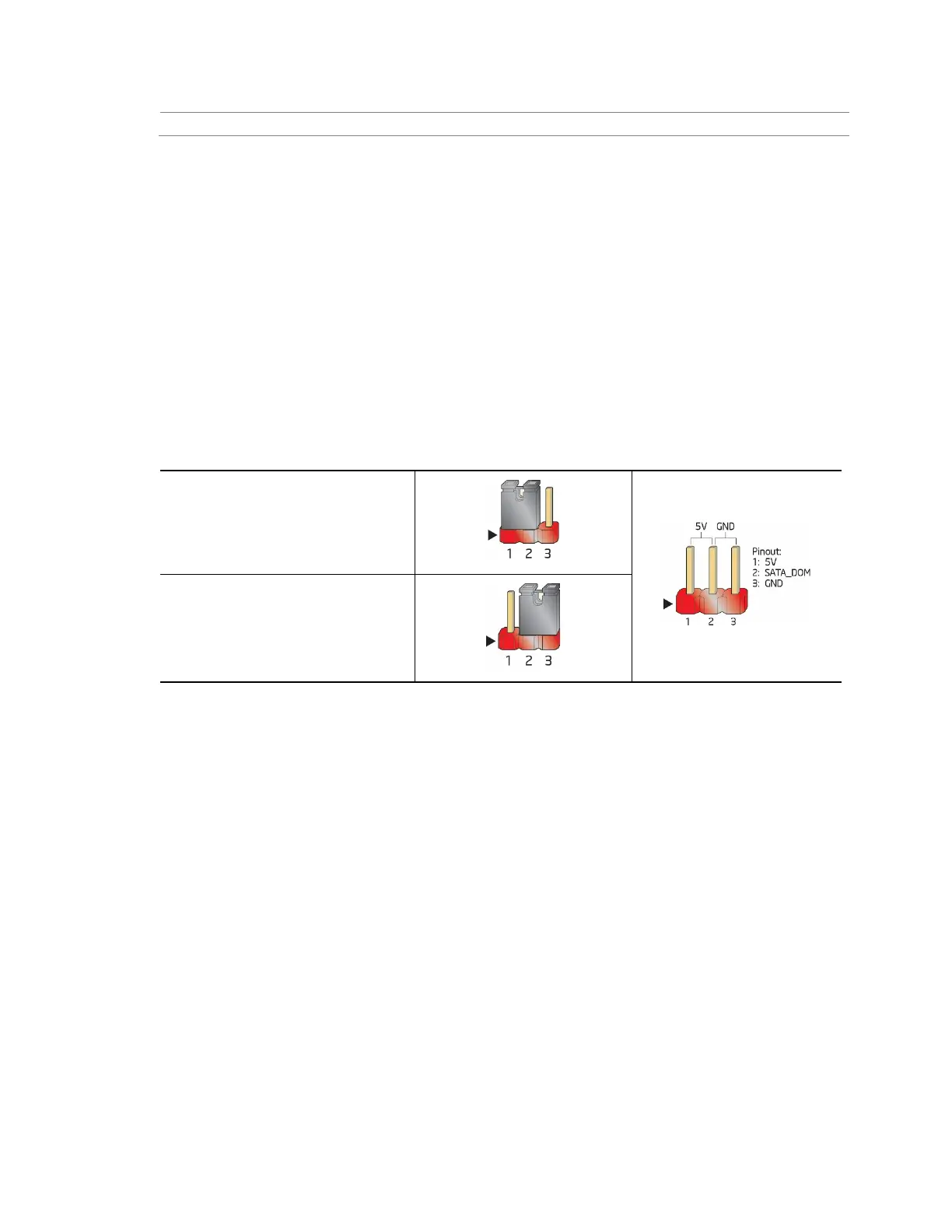

Table 11. SATA DOM Voltage Selection Header
Pins 1 and 2 jumper position for 5 V
Pins 3 and 2 jumper position for GND
(default)
