Intel NUC Board NUC5i5MYBE Technical Product Specification
28

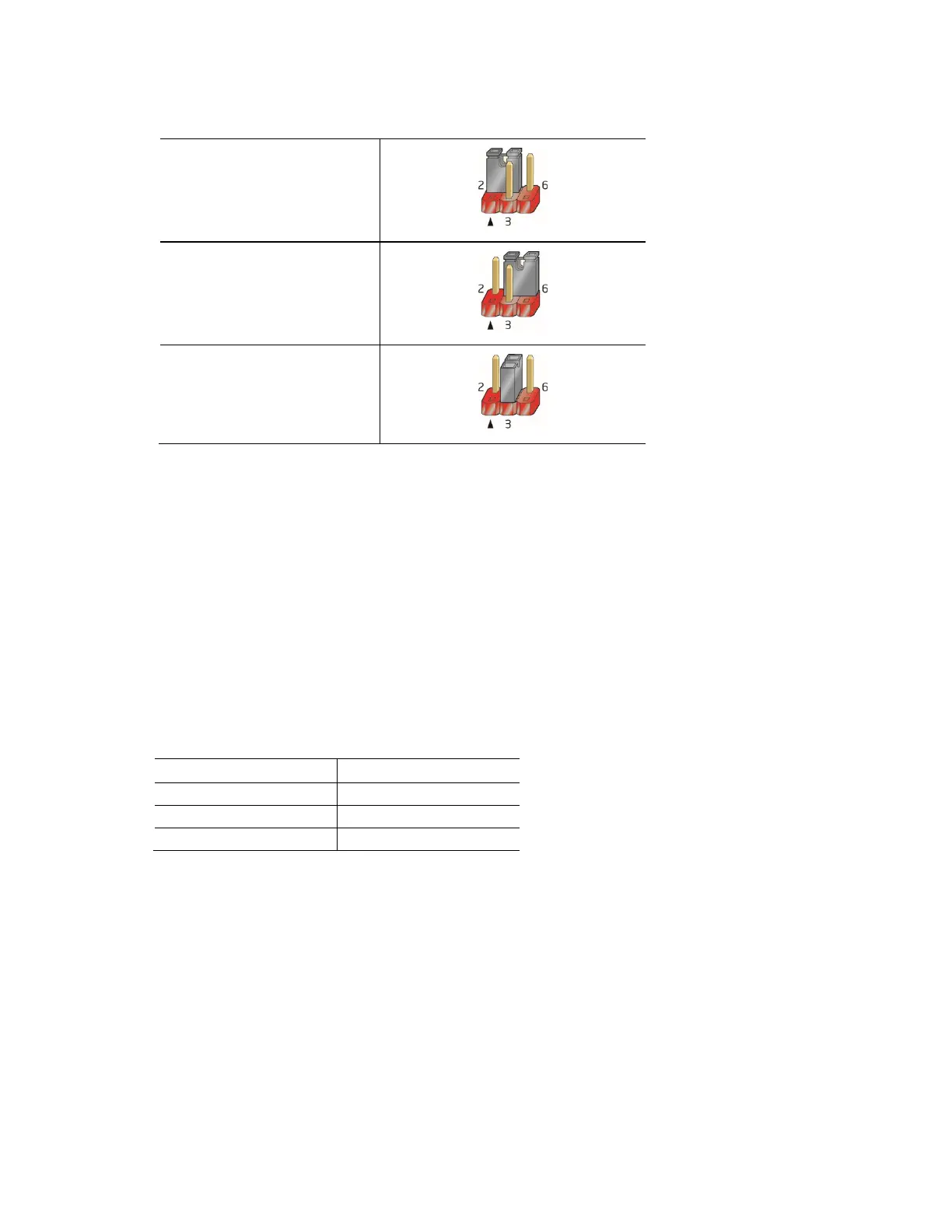

Table 9. Flat Panel Voltage Selection Header Jumper Positions
3.3 Vsby ± 5% (1.3A)
5 Vsby ± 5% (2.0A)
(Vin) 19V ± 5% (2.0A)
1.5.1.7.1 Embedded DisplayPort* (eDP) Interface
The Embedded DisplayPort (eDP) flat panel display interface supports the following:
• 2880 x 1800 @ 60 Hz resolution
• 1-lane and 2-lane bandwidth at 1.62 Gb/s or 2.7 Gb/s
• Multiple EDID data source capability (panel, predefined, and custom payloads)
• 3.3 V, 5 V, and 12 V flat panel display voltage flexibility, with up to 2 A current
• 5 V, 12 V, and Vin backlight inverter voltage flexibility, with up to 2 A current
• Backlight inverter signal redundancy on a dedicated header as well as on eDP connector (for
discrete inverter or panel-integrated inverter support using a single cable)
• Connector used is JAE FI- X30SSLA-HF two-lane, 1x30 eDP connector
Table 10. eDP Resolutions for 2 Lane Counts
Link Data Rate 2 Lane Counts
RBR (Reduced Bit Rate)
1400 x 1050
HBR (High Bit Rate) 1920 x 1200
HBR2 (High Bit Rate 2)
2880 x 1800
1.5.1.7.2 Configuration Modes
Video mode configuration for eDP displays is supported as follows:
• Automatic panel identification via Extended Display Identification Data (EDID) for panels with
onboard EDID support
• Panel selection from common predefined panel types (without onboard EDID)
• Custom EDID payload installation for ultimate parameter flexibility, allowing custom
definition of EDID data on panels without onboard EDID
