Intel NUC5i5MYBE User Manual

Technical Reference
59
• manages CPU power usage to maintain system power consumption below 65 W
• is designed for use with 65 W AC-DC adapters
NOTE
It is recommended that you disable this feature (via BIOS option) when using an AC-DC
adapter greater than 65 W.
For information about
Refer to
Power supply considerations
Section 2.5.1, page 68
2.2.4.4 Front Panel Header (2.0 mm Pitch)
This section describes the functions of the front panel header. Table 29 lists the signal names of
the front panel header. Figure 16 is a connection diagram for the front panel header.
Table 29. Front Panel Header (2.0 mm Pitch)
Pin
Signal Name
Description
Pin
Signal Name
Description
1
HDD_POWER_LED
Pull-up resistor (750 Ω)
to +5V
2
POWER_LED_MAIN
[Out] Front panel LED (main
color)
3 HDD_LED# [Out] Hard disk activity
LED
4 POWER_LED_ALT [Out] Front panel LED (alt
color)
5
GROUND
Ground
6
POWER_SWITCH#
[In] Power switch
7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground
9
+5V_DC
Power
10
Key
No pin

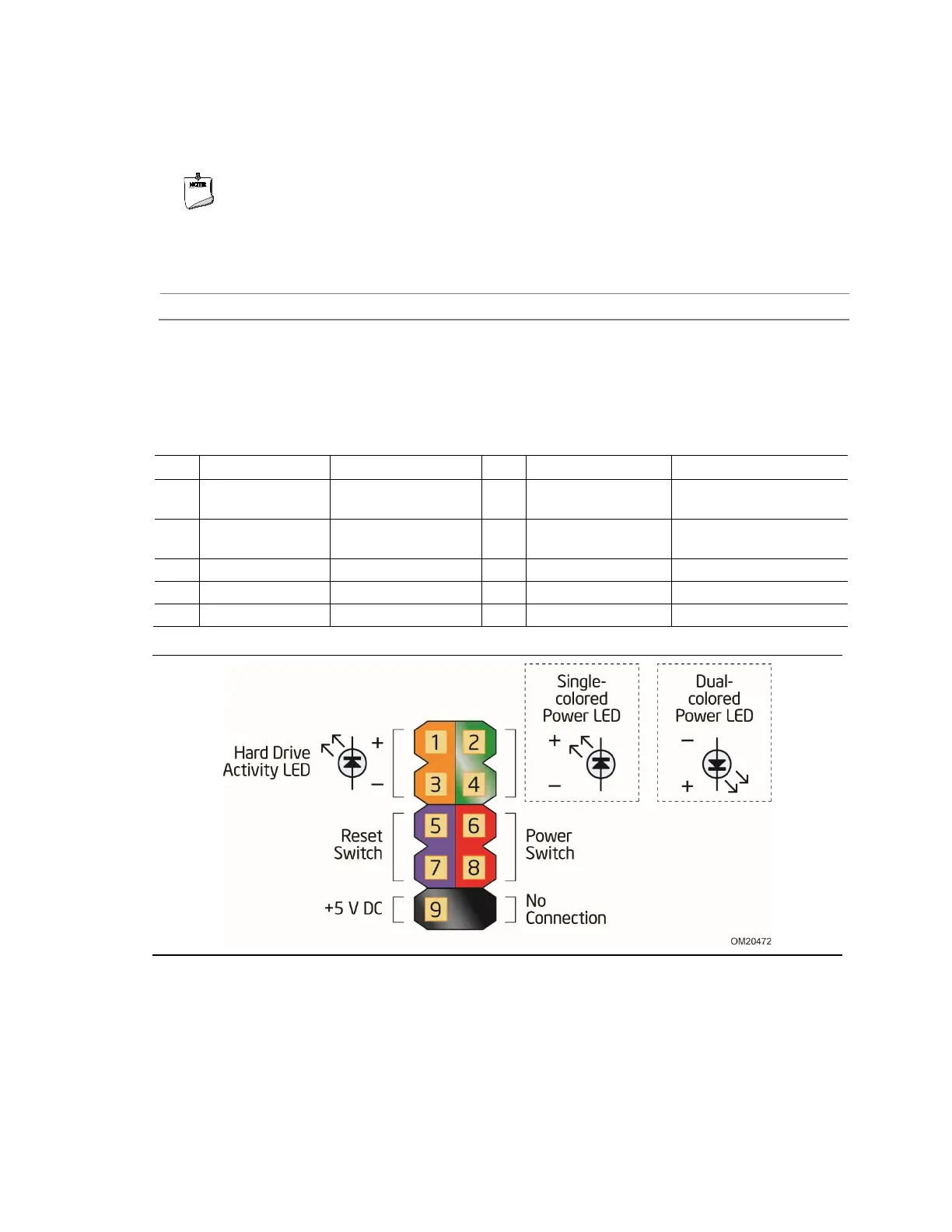

Figure 16. Connection Diagram for Front Panel Header (2.0 mm Pitch)
