Intel® Server Board S2400SC
TPS
Overview
Revis
ion 2.
0
Inte
l orde
r number
G3651
6
-
0
02
15
A
Serial Port A
E
Diagnosti
c LEDs
B
Video
F
ID LED
C
NIC Port 1 (1 Gb)
_USB_0-1
G
System St
atus LED
D
NIC Port 2 (1 Gb)_USB_2
-3

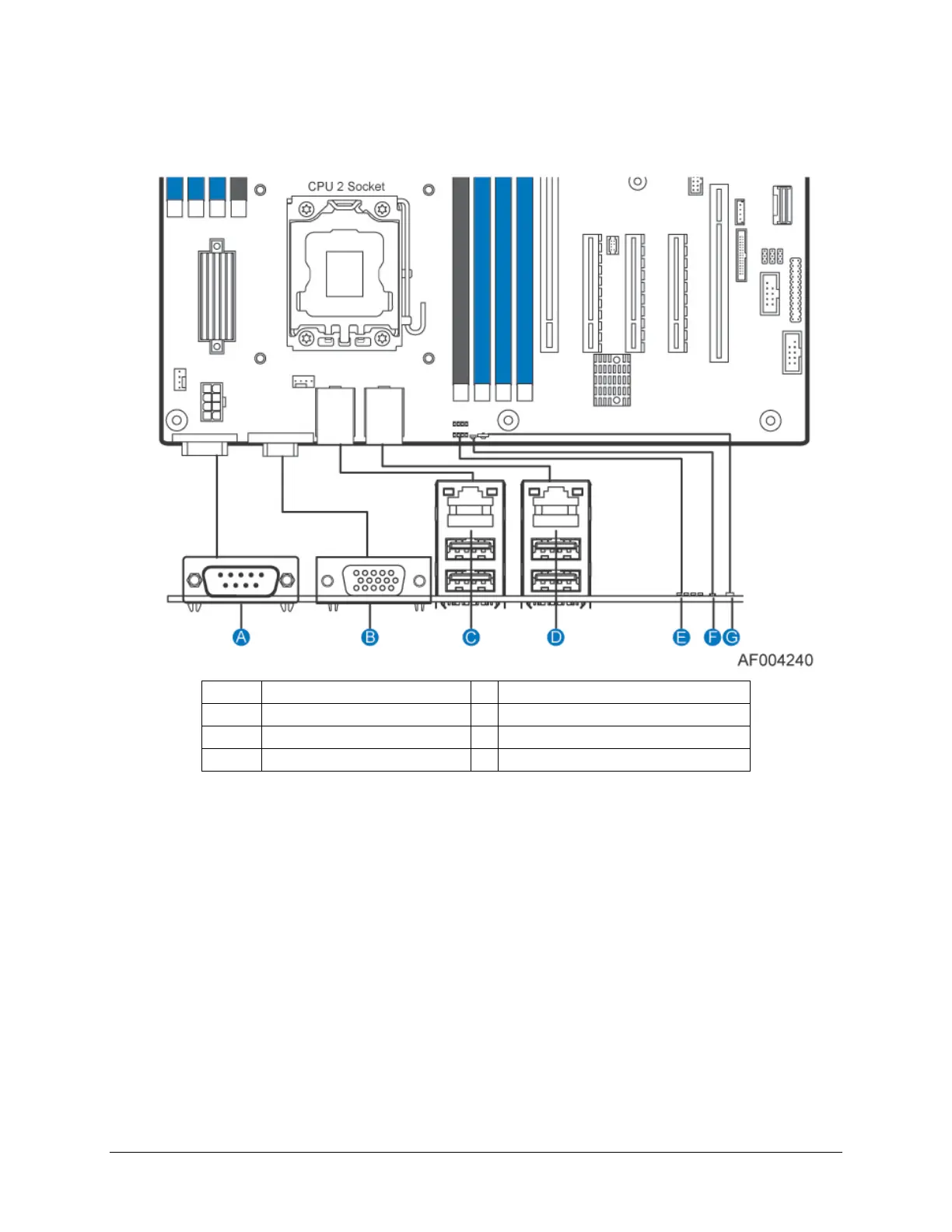

Figure
11
. Intel
®
Serv
er Bo
ards S24
00SC
Rear I/O L
ayout
26
28
Table of Contents
Default Chapter
2
Oct 2012
2
Table of Contents
4
1 Introduction
13
Chapter Outline
13
Server Board Use Disclaimer
13
2 Overview
14
Intel ® Server Boards S2400SC Feature Set
14
Figure 2. Intel
14
Figure 11. Intel
14
Figure 12. Intel
14
Figure 22. Intel
14
Server Board Layout
16
Server Board Connector and Component Layout
16
Figure 1. Intel Server Board S2400SC Layout
16
Figure 2. Intel ® Server Board S2400SC Layout
17
Server Board Mechanical Drawings
19
Figure 3. Intel Server Board S2400SC - Mounting Hole Locations (1 of 2)
19
Figure 4. Intel Server Board S2400SC - Mounting Hole Locations (2 of 2)
20
Figure 5. Intel Server Boards S2400SC - Major Connector Pin-1 Locations (1 of 2)
21
Figure 6. Intel Server Boards S2400SC - Major Connector Pin-1 Locations (2 of 2)
22
Figure 7. Intel Server Boards S2400SC - Primary Side Keepout Zone
23
Figure 8. Intel Server Boards S2400SC - Primary Side Card Side Keepout Zone
24
Figure 9. Intel Server Boards S2400SC - Primary Side Air Duct Keepout Zone
25
Server Board Rear I/O Layout
26
Figure 10. Intel Server Boards S2400SC - Second Side Keepout Zone
26
3 Functional Architecture
28
Processor Support
28
Processor Socket Assembly
29
Processor Population Rules
29
Figure 13. Processor Socket Assembly
29
Table 3. Mixed Processor Configurations
30
Processor Function Overview
33
Intel ® Quickpath Interconnect
34
Integrated Memory Controller (IMC) and Memory Subsystem
34
Table 4. UDIMM Support Guidelines
35
Table 5. RDIMM Support Guidelines
36
Figure 14. Intel Server Board S2400SC DIMM Slot Layout
37
Table 1. Intel
37
Table 2. Intel
37
Processor Integrated I/O Module (IIO)
43
Figure 15. Functional Block Diagram of Processor IIO Sub-System
44
Intel C602-A Chipset Functional Overview
45
Figure 16. Functional Block Diagram - Chipset Supported Features and Functions
45
Table 7. External RJ45 NIC Port LED Definition
45
Digital Media Interface (DMI)
46
PCI Express* Interface
46
Serial ATA (SATA) Controller
46
Ahci
47
Compatibility Modules (DMA Controller, Timer/Counters, Interrupt Controller)
47
Low Pin Count (LPC) Interface
47
PCI Interface
47
Rapid Storage Technology
47
Serial Peripheral Interface (SPI)
47
Advanced Programmable Interrupt Controller (APIC)
48
Gigabit Ethernet Controller
48
Universal Serial Bus (USB) Controller
48
Enhanced Power Management
49
Gpio
49
Manageability
49
Rtc
49
Integrated NVSRAM Controller
50
Intel ® Active Management Technology (Intel ® AMT)
50
JTAG Boundary-Scan
50
Kvm/Serial over LAN (SOL) Function
50
System Management Bus (Smbus* 2.0)
50
VT-D)
50
On-Board Serial Attached SCSI (Sas)/Serial ATA (SATA) Support and Options
51
Table 6. Intel
51
Table 8. Intel
52
Integrated Baseboard Management Controller (BMC) Overview
53
Figure 17. Integrated Baseboard Management Controller (BMC) Overview
53
Figure 18. Integrated BMC Hardware
54
Super I/O Controller
54
Graphics Controller and Video Support
55
Table 9. Video Modes
55
Baseboard Management Controller
56
Table 10. Video Mode
56
4 System Security
58
BIOS Password Protection
58
Trusted Platform Module (TPM) Support
59
TPM Security BIOS
59
Physical Presence
60
TPM Security Setup Options
60
Figure 19. Setup Utility - TPM Configuration Screen
61
Intel Trusted Execution Technology
62
Table 11. TPM Setup Utility - Security Configuration Screen Fields
62
5 Technology Support
64
Intel Trusted Execution Technology
64
Intel Virtualization Technology - Intel
64
VT-X/Vt-D/Vt-C
64
Intel Intelligent Power Node Manager
65
Table 12. Intel Intelligent Power Node Manager
65
Hardware Requirements
66
6 Platform Management Functional Overview
67
Baseboard Management Controller (BMC) Firmware Feature Support
67
IPMI 2.0 Features
67
Non IPMI Features
68
New Manageability Features
69
Basic and Advanced Features
70
Table 13. Basic and Advanced Features
70
Integrated BMC Hardware: Emulex* Pilot III
71
Emulex* Pilot III Baseboard Management Controller Functionality
71
Advanced Configuration and Power Interface (ACPI)
72
Power Control Sources
72
Table 14. ACPI Power States
72
Table 15. Power Control Initiators
72
BMC Watchdog
73
Fault Resilient Booting (FRB)
73
Sensor Monitoring
74
Field Replaceable Unit (FRU) Inventory Device
74
System Event Log (SEL)
75
6.11 System Fan Management
75
Thermal and Acoustic Management
75
Setting Throttling Mode
76
Altitude
76
Set Fan Profile
76
Fan PWM Offset
76
Quiet Fan Idle Mode
76
Fan Profiles
77
Table 16. Fan Profiles
77
Thermal Sensor Input to Fan Speed Control
78
Memory Thermal Throttling
79
Figure 20. Fan Speed Control Process
79
6.12 Messaging Interfaces
80
User Model
80
IPMB Communication Interface
80
Table 17. Messaging Interfaces
80
LAN Interface
81
Address Resolution Protocol (ARP)
86
Internet Control Message Protocol (ICMP)
86
Virtual Local Area Network (VLAN)
86
Secure Shell (SSH)
87
Serial-Over-LAN (SOL 2.0)
87
Platform Event Filter (PEF)
88
LAN Alerting
88
Table 18. Factory Configured PEF Table Entries
88
Alert Policy Table
89
SM-CLP (SM-CLP Lite)
89
Embedded Web Server
90
Virtual Front Panel
91
Embedded Platform Debug
92
Table 19. Diagnostic Data
93
Data Center Management Interface (DCMI)
94
Lightweight Directory Authentication Protocol (LDAP)
94
Table 20. Additional Diagnostics on Error
94
7 Advanced Management Feature Support (RMM4)
95
Figure 21. Intel RMM4 Lite Activation Key Installation
95
Table 21. RMM4 Option Kits
95
Keyboard, Video, Mouse (KVM) Redirection
96
Remote Console
97
Performance
97
Security
97
Availability
98
Usage
98
Force-Enter BIOS Setup
98
Media Redirection
98
Availability
99
Network Port Usage
99
8 On-Board Connector/Header Overview
100
Board Connector Information
100
Table 22. Board Connector Matrix
100
Power Connectors
101
Table 23. Main Power Connector Pin-Out (J1H3)
101
Table 24. CPU 1/CPU 2 Power Connector Pin-Out (J5J2, J8A1)
101
Table 25. Power Supply Auxiliary Signal Connector Pin-Out (J1J2)
101
System Management Headers
102
Intel ® Remote Management Module 4 Connector
102
TPM Connector
102
Table 26. Intel RMM4 Connector Pin-Out (J1C7)
102
Table 27. Intel RMM4 - Lite Connector Pin-Out (J3D1)
102
Table 28. TPM Connector Pin-Out (J4J1)
102
LCP Header
103
HSBP Header
103
SATA SGPIO Header
103
Front Panel Connector
103
Table 29. LCP Header Pin-Out (J3J4)
103
Table 30. HSBP_I2C Header Pin-Out (J3J1)
103
Table 31. SATA SGPIO Header Pin-Out(J2J4)
103
I/O Connectors
104
VGA Connector
104
Table 32. Front Panel SSI Standard 24-Pin Connector Pin-Out (J1C3)
104
Table 33. VGA Connector Pin-Out (J7A2)
104
SATA Connectors
105
Table 34. SATA Connector Pin-Out (J1G1, J1F1, J2H1, J1H2, J1H1, J1G2)
105
Table 35. Minisas Connector Pin-Out (J1D3, J1E1)
105
Table 36. Minisas Connector Pin-Out (J1D3, J1E1)
105
Serial Port Connectors
106
USB Connector
106
Table 37. External DB9 Serial a Port Pin-Out (J8A2)
106
Table 38. Internal 9-Pin Serial B Header Pin-Out (J1B1)
106
Table 39. External USB Connector Pin-Out (U6A1, U7A1)
106
Fan Headers
107
Table 40. Internal USB Connector Pin-Out (J1C2)
107
Table 41. Pin-Out of Internal Low-Profile USB Connector for Solid State Drive (J2E1)
107
Table 42. Internal Type a USB Port Pin-Out (J1J1)
107
Table 43. SSI 4-Pin Fan Header Pin-Out (J5J1, J7A1, J9A1)
108
Table 44. SSI 6-Pin Fan Header Pin-Out (J2J5, J2J6, J2J7, J2J8, J3J2 and J3J3)
108
9 Jumper Blocks
109
Table 45. Server Board Jumpers (J1C4, J1C5, J1C6, J2J2, J2J3, J2J4))
109
BIOS Default (CMOS Clear) and Password Clear Usage Procedure
110
Clearing CMOS (BIOS Default)
110
Clearing the Password
111
Force BMC Update Procedure
111
ME Force Update Jumper
112
BIOS Recovery Jumper
112
10 Intel Light Guided Diagnostics
114
10.1 5 V Stand-By LED
114
Figure 23. 5 V Stand-By Status LED Location
114
10.2 Fan Fault Leds
115
Figure 24. Fan Fault LED Locations
115
10.3 CPU Fault Leds
116
Figure 25. CPU Fault LED Locations
116
10.4 System Status LED
117
Figure 26. System Status LED Location
117
Table 46. System Status LED
118
10.5 DIMM Fault Leds
120
Figure 27. DIMM Fault Leds Location
120
10.6 BMC Boot/Reset Status LED Indicators
121
Table 47. BMC Boot/Reset Status LED Indicators
121
10.7 Post Code Diagnostic Leds
122
Figure 28. POST Code Diagnostic LED Locations
122
11 Environmental Limits Specification
123
11.1 Processor Thermal Design Power (TDP) Support
123
Table 48. Server Board Design Specifications
123
11.2 Mtbf
124
11.3 Server Board Power Distribution
124
Figure 29. Power Distribution Block Diagram
125
Appendix A: Integration and Usage Tips
126
Appendix B: Integrated BMC Sensor Tables
127
Table 49. Integrated BMC Core Sensors
129
Appendix C: POST Code Diagnostic LED Decoder
145
Table 50. POST Progress Code LED Example
146
Table 51. POST Progress Codes
146
Table 52. MRC Progress Codes
148
Table 53. POST Progress LED Codes
149
Appendix D: POST Code Errors
150
Table 54. POST Error Codes and Messages
151
Table 55. POST Error Beep Codes
154
Table 56. Integrated BMC Beep Codes
155
Appendix E: Supported Intel Server Chassis
156
Table 57. Intel ® Server Chassis P4000S for S2400 Family
156
Table 58. Intel ® Server Chassis P4000M Family
156
Figure 30. Processor Heatsink Installation
157
Glossary
158
Reference Documents
161
Other manuals for Intel S2400SC
Guide
141 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Intel S2400SC and is the answer not in the manual?
Ask a question
Intel S2400SC Specifications
General
Brand
Intel
Model
S2400SC
Category
Motherboard
Language
English
Related product manuals
Intel S2600GZ
141 pages
Intel S2600IP
186 pages
Intel S1200BT
122 pages
Intel S1400FP
141 pages
S5000XVN - Workstation Board Motherboard
88 pages
S3200SHV - Entry Server Board Motherboard
128 pages
630 - Pentium 4 630 3.0GHz 800MHz 2MB Socket 775 CPU
54 pages
Intel DH61BE
88 pages
Intel DH67BL
94 pages
Intel DG33BU
84 pages
Intel DH55HC
86 pages
Intel D865PERL
108 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
