Intel® Server Board S2400SC TPS Functional Architecture
Revision 2.0 Intel order number G36516-002 25
 Processor sockets are self-contained and autonomous. However, all memory subsystem
support (such as Memory RAS, Error Management,) in the BIOS setup are applied
commonly across processor sockets.
On the Intel
®
Server Board S2400SC, a total of 8 DIMM slots is provided (two CPUs – 3
Channels/CPU). The nomenclature for DIMM sockets is detailed in the following table:
Table 6. Intel
®
Server Board S2400SC DIMM Nomenclature
Processor Socket 1
Processor Socket 2
(0)
Channel A
(1)
Channel B
(2)
Channel C
(0)
Channel D
(1)
Channel E
(2)
Channel F
A1 B1 C1 C2 D1 E1 F1 F2

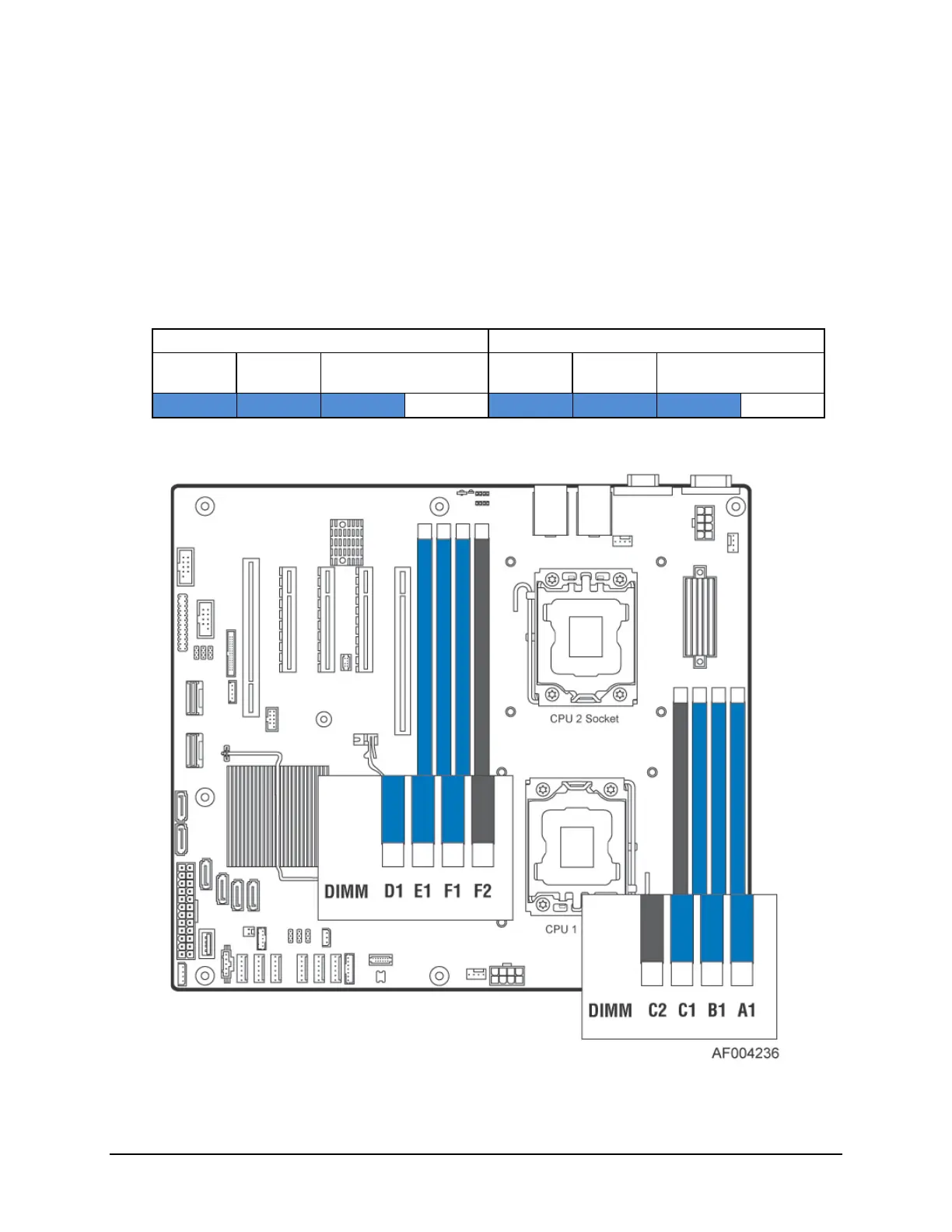

Figure 14. Intel
®
Server Board S2400SC DIMM Slot Layout
