Intel S2400SC - Figure 18. Integrated BMC Hardware; Super I;O Controller

Functional Architecture Intel® Server Board S2400SC TPS
42 Intel order number G36516-002 Revision 2.0

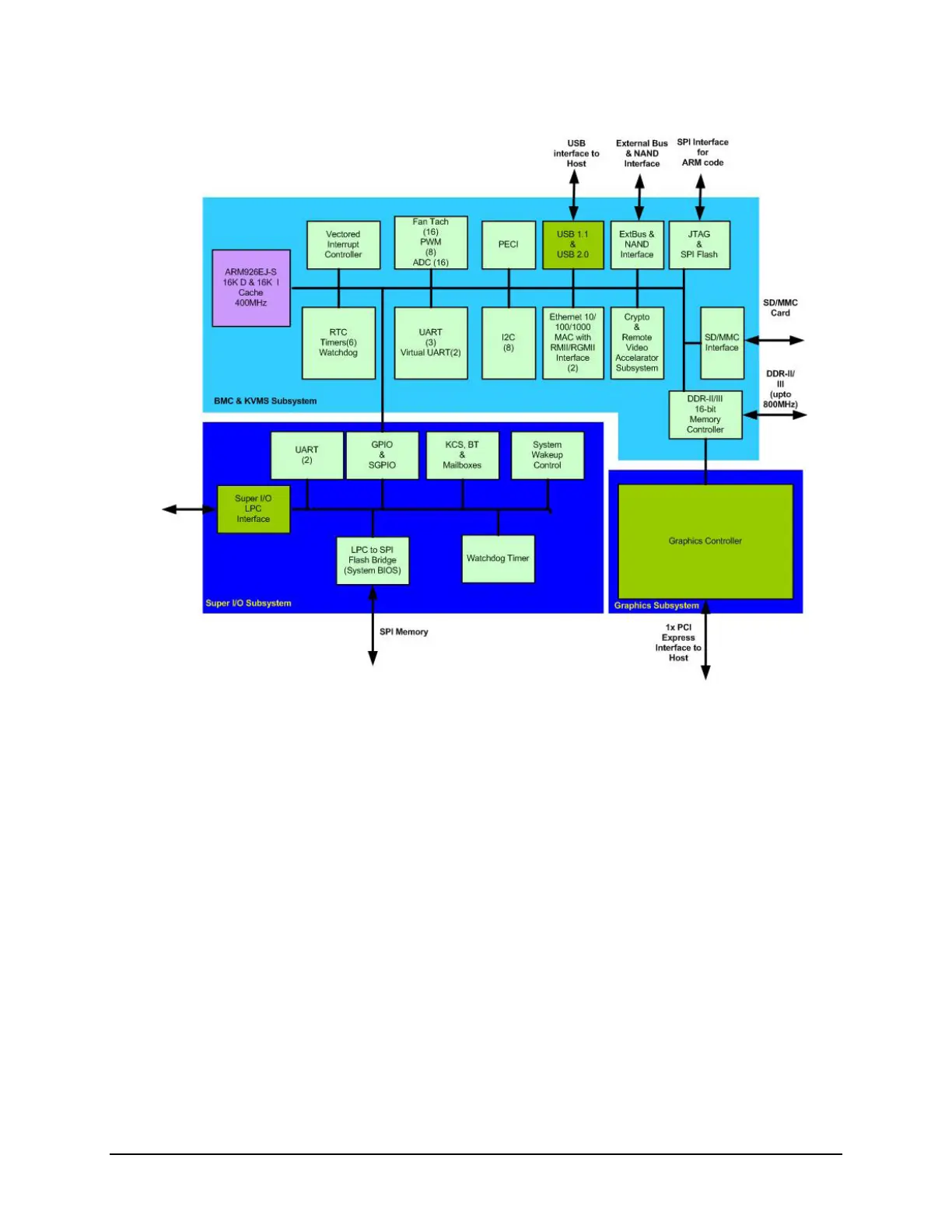

Figure 18. Integrated BMC Hardware
3.4.1
Super I/O Controller
The integrated super I/O controller provides support for the following features as implemented
on the server board:
 Two Fully Functional Serial Ports, compatible with the 16C550
 Serial IRQ Support
 Up to 16 Shared direct GPIO’s
 Serial GPIO support for 80 general purpose inputs and 80 general purpose outputs
available for host processor
 Programmable Wake-up Event Support
 Plug and Play Register Set
 Power Supply Control
 Host SPI bridge for system BIOS support
