Appendix B. Assembling Air-Conditioner (Optional)

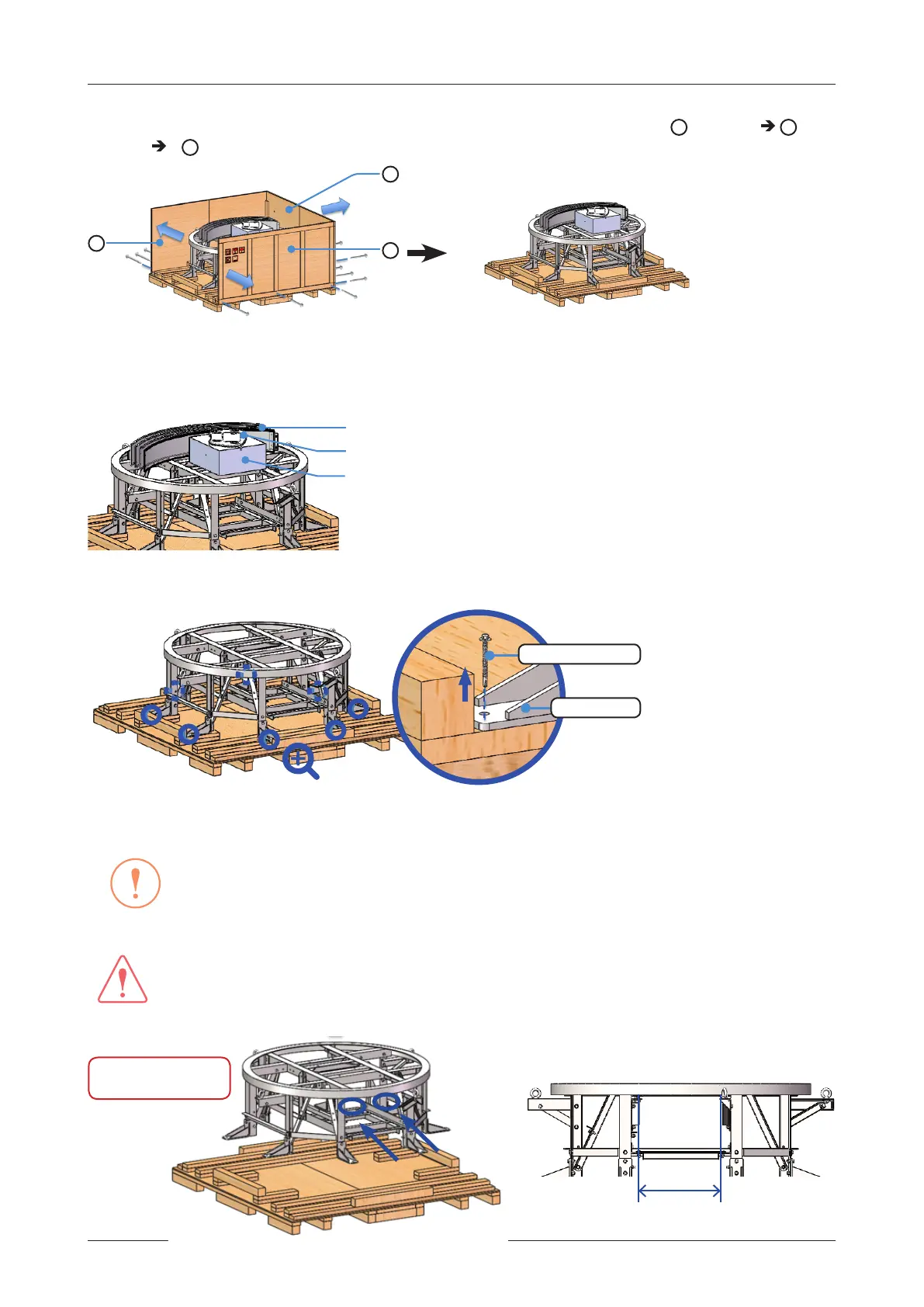

3. Remove the xing screws from the panels, and then detach the panels in order (
1
left panel
2
back
panel
3
right pane).
3
1
2
2. Removing Base Frame from Wooden Crate
1. The radome skirt, duct hatch, and install kit box are secured to the base frame with plastic straps. Release
them using a cutter, and move them to a safe place for the next step.
Duct Hatch
Radome Skirt
Install Kit Box
2. Remove the xing screws (8EA) on the base frame which secures the base frame to the pallet by using a
wrench.
Base Frame
Base Frame Bolt
3. Lift the base frame using a forklift and move it to the safe place to install the antenna. The width between
forks should be adjusted within 550 mm.
CAUTION
CAUTION
When using a forklift, be careful not to damage the base frame while inserting the fork. Intellian is not
responsible or liable for any damage incurred due to improper handling.
WARNING
WARNING
Be careful when lifting the heavy object. Incorrect handling of the heavy object may lead to injury to the
installers and/or cause signicant damage to the unit.
Base Frame Weight:
Total 250 Kg/551.15 Ib
Fork Width:
Max. 560 mm
