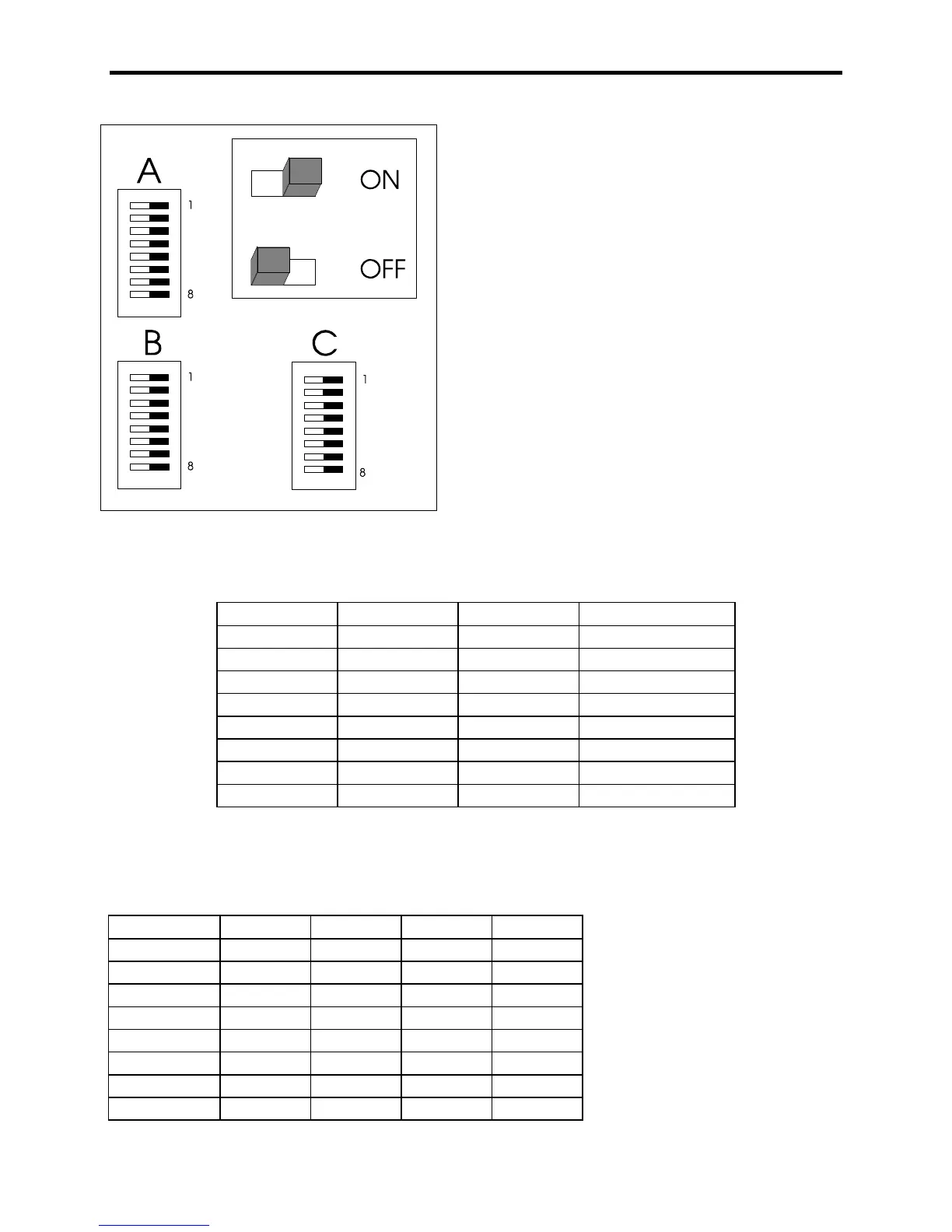

The above diagram is the S400 switch pack layout, The SA2000 has pack C below B.
The switch is to the right for on and to the left for off.
Switch # Pack A Pack B Pack C
1 OFF OFF See next page
2 ON ON "
3 ON OFF "
4 ON OFF "
5 ON ON ON
6 OFF ON ON
7 OFF ON OFF
8 ON ON OFF
The above switches should be set on switch packs A, B, and C.
Pack C, SW 1 to 4:
Baud Rate C-1 C-2 C-3 C-4
9600 ON ON ON OFF
4800 OFF ON ON OFF
2400 ON ON OFF OFF
1200 OFF OFF ON OFF
600 ON OFF OFF ON
300 OFF ON OFF OFF
150 ON OFF OFF OFF
75 OFF OFF ON ON
To Next Page
