Intergas XTREME 36 - Boiler Installation Procedures; Installation Location and Physical Setup

15
450
277
120
120
6565120 6565 70
275
148 98h
H
=320=
50
65
95
Connections
A
Central heating
flow
3/4"
B
Central heating
return
3/4"
C
Gas flow 1/2"
D
Domestic hot
water - cold
1/2"
E
Domestic hot
water - hot
1/2"
F
Condensation
drain
Ødn25
Z
Flue pipe / Air
supply
Ø60/100
(concentric,
wall terminal )
5 INSTALLATION
A
E C D
B
F
A B
D E
F
Z
C

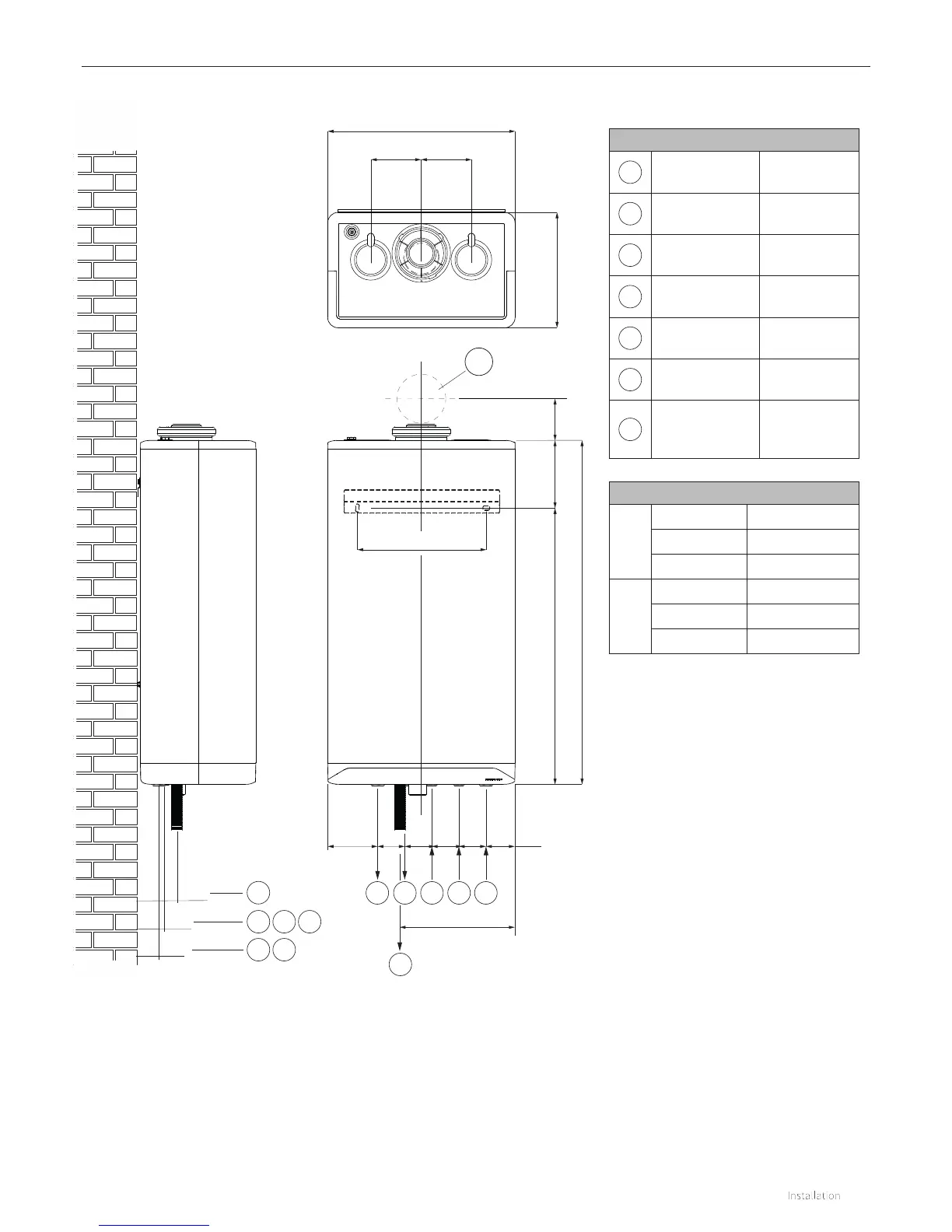

5.1 Overall dimensions of boiler + assembly bracket
5.1.1 Installing the wall bracket and assembly bracket
Using the corresponding fasteners, attach the wall bracket and
the assembly bracket horizontally to the wall. Refer to the drill
pattern in §5.1 or refer to the installation instructions supplied
with the assembly bracket.
Overall dimensions
h =
650 mm Xtreme 24
650 mm Xtreme 30
710 mm Xtreme 36
H =
766 mm Xtreme 24
766 mm Xtreme 30
826 mm Xtreme 36
