Intergas XTREME 36 - Data Plate; Operation

9

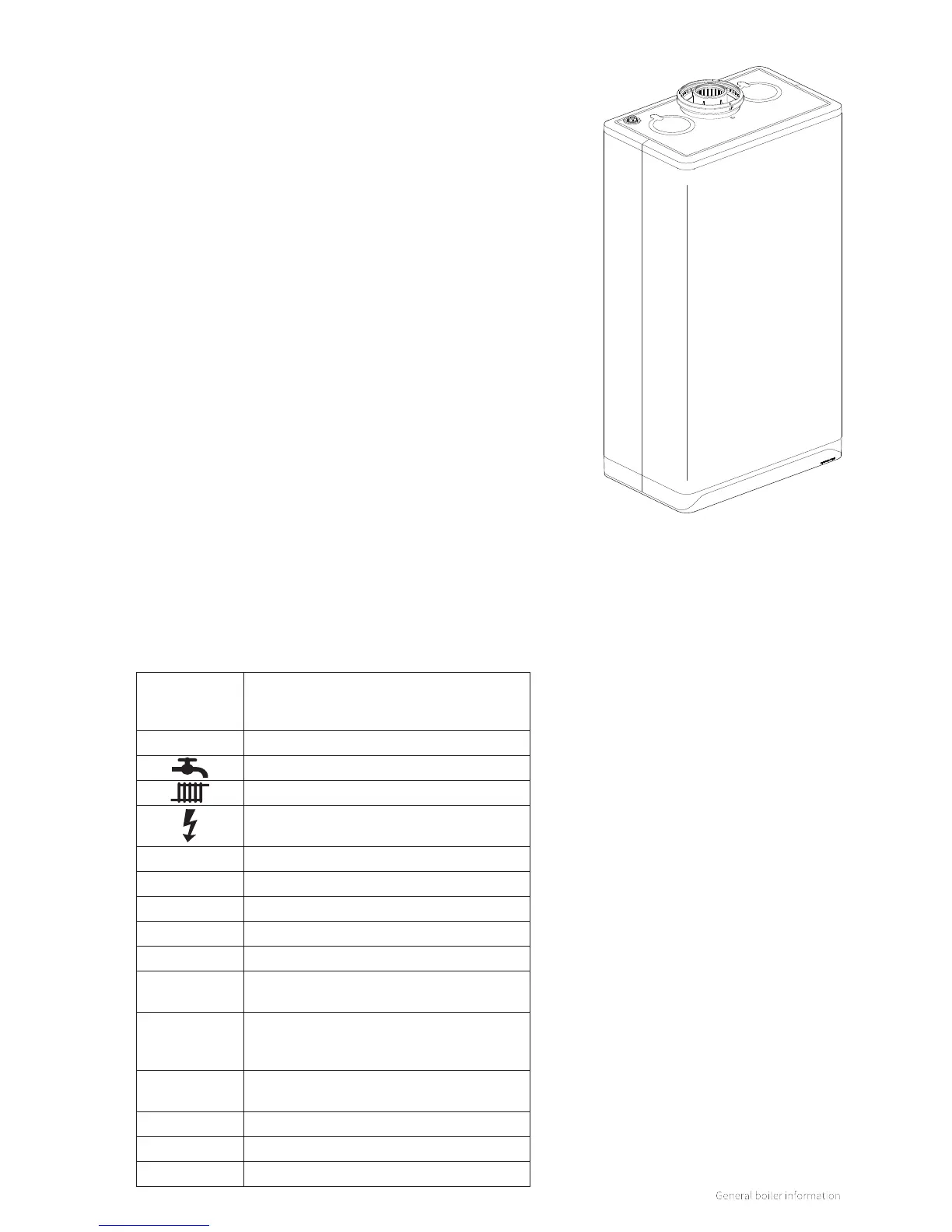

Identification of the product
You will find the unit details on the data plate on the bottom
of the unit. The data plate contains, beside the supplier
information and the boiler specification (boiler type and model
name), the following information:
3.3 Data plate
3.2 Operation
The Intergas Xtreme is a modulating high eiciency boiler. This means
that the capacity is adjusted according to the desired heating capacity.
Two separate copper circuits are integrated in the aluminium heat
exchanger.
In addition, the Intergas Xtremehas a second heat exchanger (heat
recovery unit). This second heat exchanger is integrated in the flue of the
boiler so that the eiciency of domestic hot water is increased further.
The residual heat of the flue gases of the central heating use is also used
to preheat the domestic hot water.
By applying this technology, less energy is required to bring the water to
the correct temperature and an extremely high eiciency is achieved.
The boiler has a burner controller which, with each heat demand of the
heater or the domestic hot water facility, controls the pump (only during
heat demand of the heater) and the fan, opens the gas valve, ignites the
burner and continuously monitors and regulates the flame, depending
on the requested capacity.
****
-yymm
****
Production code-Serial no.
YY = year of production,
mm = month of production
PIN
Product Information Number
Data related to Domestic Hot Water
Data related to Central Heating
Information regarding electrical power supply
(Voltage, mains frequency, elmax, IP-class)
PMS
Permissible overpressure in CH circuit in bar
PWS
Permissible overpressure in DHW circuit in bar
Qn HS
Input related to gross caloric value in kilowatts
Qn Hi
Input related to net caloric value in kilowatts
Pn
Output in kilowatts
BE, CH, DE, ES,
FR, GB, IE, IT, MT
Countries of Destination (EN 437)
I2E(s), I2H,
IIELL3P, II2H3P,
II2Esi3P
Approved unit categories (EN 437)
G20-20 mbar
G25-25 mbar
Gas group and gas connection pressure as set
at the factory (EN 437)
B23, ......C93(x)
Approved flue gas category (EN 15502)
Tmax
Maximum flow temperature in °C
IPX4D
Electrical protection class
