Intergas XTREME 36 - Electrical Schematic

72

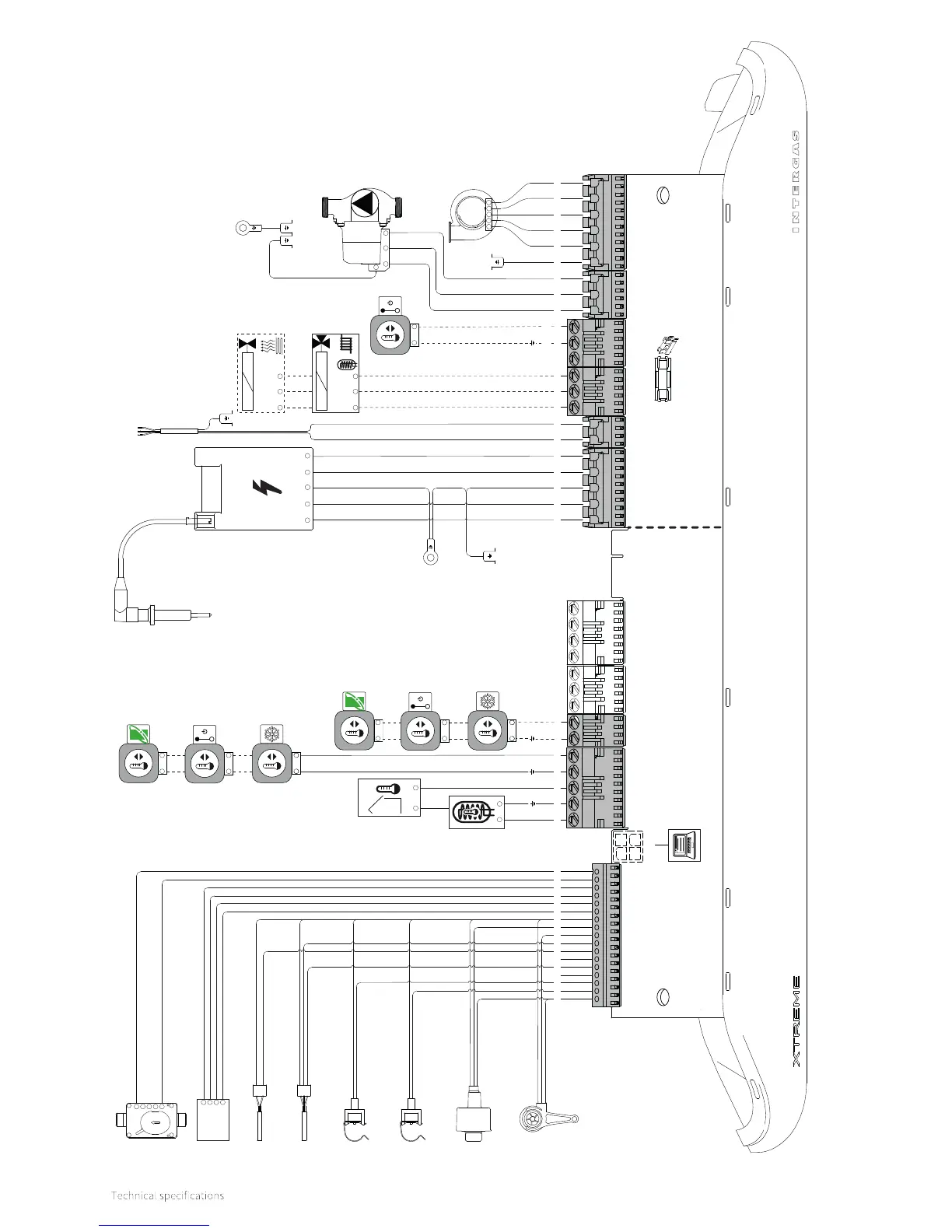

11.1 Electrical schematic
17
16
1415
13
12 11 10 9 8 7
6
5 4 3 2
1
Flow ssensor
Central heating flow sensor S1
Domestic hot water sensor S3 Heat exchanger sensor S0 Flue sensor S5
BMM
4
3 2 1
5
4
3 2
1
Gasvalve
X15
(24V=)
X14
PC
12345
12 12345 123
X13
(24V =)
X12
(24V =)
X11
(24V =)
N/A
X10
(24V =)
N/A
X8
(230V ~)
X5
(230V ~)
Ignition unit
Burner controller
123 123456
Earth connections heat exchanger
Power cord
Earth connections burner controller
Fan
Central heating pump
230V~ / 50Hz
Ignition pin
230V ~
24V =
4
5
3
4
Central heating pressure sensor
2
1
3
2
1
3
OpenTherm thermostat
OpenTherm thermostat
Outdoor sensor S6
Boiler sensor S7
3
2
1
4
3
5
http://www.intergasverwarming.nl
X4
(230V ~)
X3
(230V ~)
X2
(230V ~)
3
2
1
1
2
3
4
5
X1
(230V ~)
12
12
12
On
O
On/o thermostat Frost thermostat
12
12
12
On
O
On/o thermostat Frost thermostat
12
4
On
O
On/o thermostat
12
12 LS
F1 (3,15 AT)
FUSE
