Intergas XTREME 36 - Roof Terminal with Combi-Pipe Vertical Terminal and Twin-Pipe Vertical Terminal C33

34
Allowed pipeline length
► Twin-pipe
Air supply duct and flue pipe together, excluding the length of
the combi-pipe wall terminal or the twin-pipe wall terminal.
Boiler Length
Intergas Xtreme 24 100 m
Intergas Xtreme 30 85 m
Intergas Xtreme 36 80 m
Assembly of combi-pipe vertical terminal
► On a steep roof, install a vertical weather slate with scale at
the location of the terminal.
On a flat roof, a weather slate (flat roof) for a pipe (Ø126 mm)
must be installed.
► Disassemble the manifold from the combi-pipe wall terminal.
► Slide the combi-pipe wall terminal
from the outside to the inside:
With a steep roof, through the vertical weather slate with scale.
With a flat roof, through the weather slate.
► Install the manifold from the combi-pipe wall terminal and
secure this with a panel screw or blind rivet.
IMPORTANT
► If the Intergas combi-pipe vertical
terminal cannot be used, the air supply
duct and flue must be implemented
separately.
► The individual flue pipe (Ø80) and/
or the internal pipe of the combi-pipe
wall terminal / extension pipe must be
constructed of stainless steel or PP T120.
► Concentric
Air supply duct and combustible gas exhaust pipe, excluding
the length of the combi-pipe wall terminal.

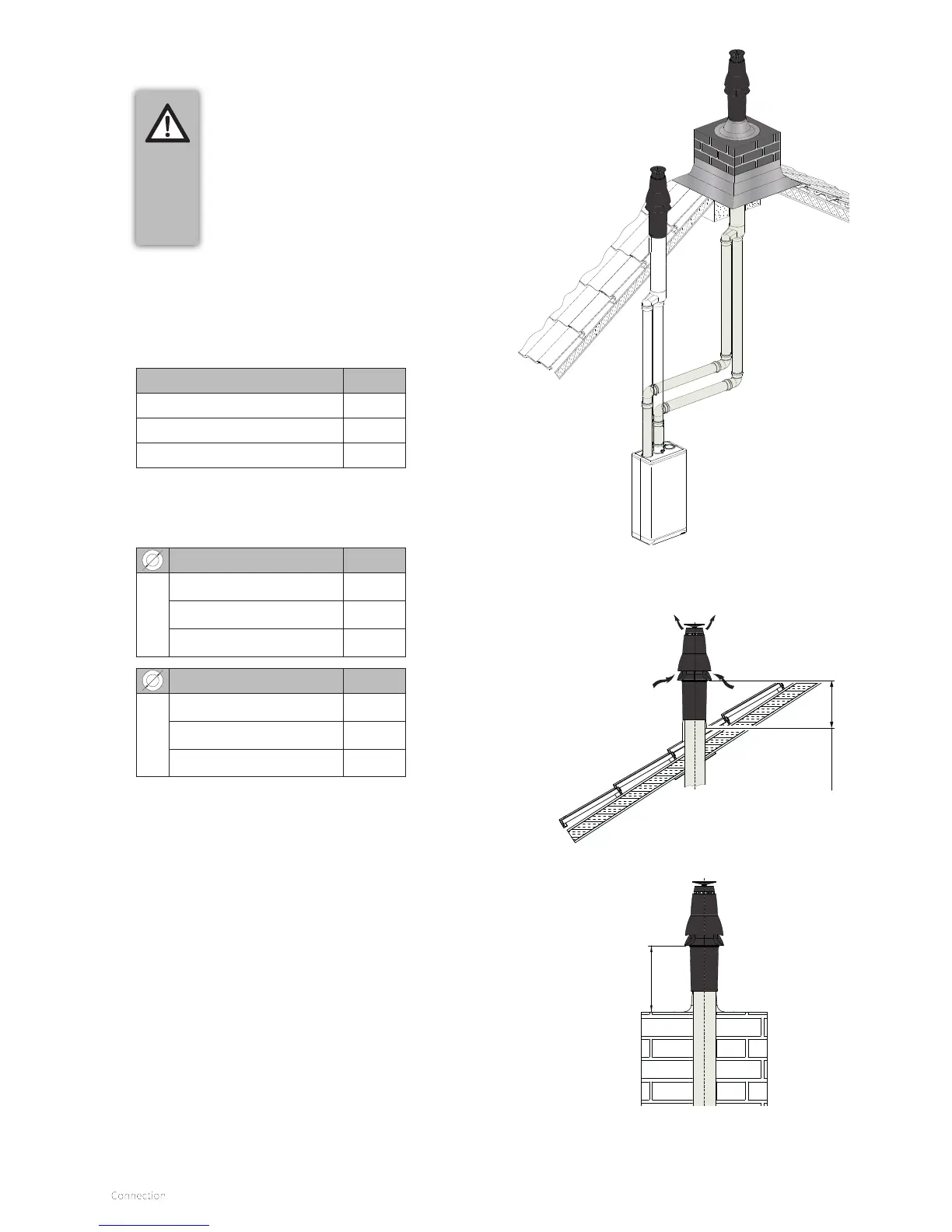

6.8.3 Roof terminal with combi-pipe vertical
terminal and twin-pipe vertical terminal C33
► Intergas combi-pipe vertical terminal
Boiler C33
Ø60/100
Intergas Xtreme 24 11 m
Intergas Xtreme 30 10 m
Intergas Xtreme 36 10 m
Boiler C33
Ø80/125
Intergas Xtreme 24 29 m
Intergas Xtreme 30 29 m
Intergas v vvvv 29 m
min. 300
min. 300
