Advisor Advanced ATSx000A(-IP) Installation and Programming Manual 1
General installation information
Advisor Advanced housings

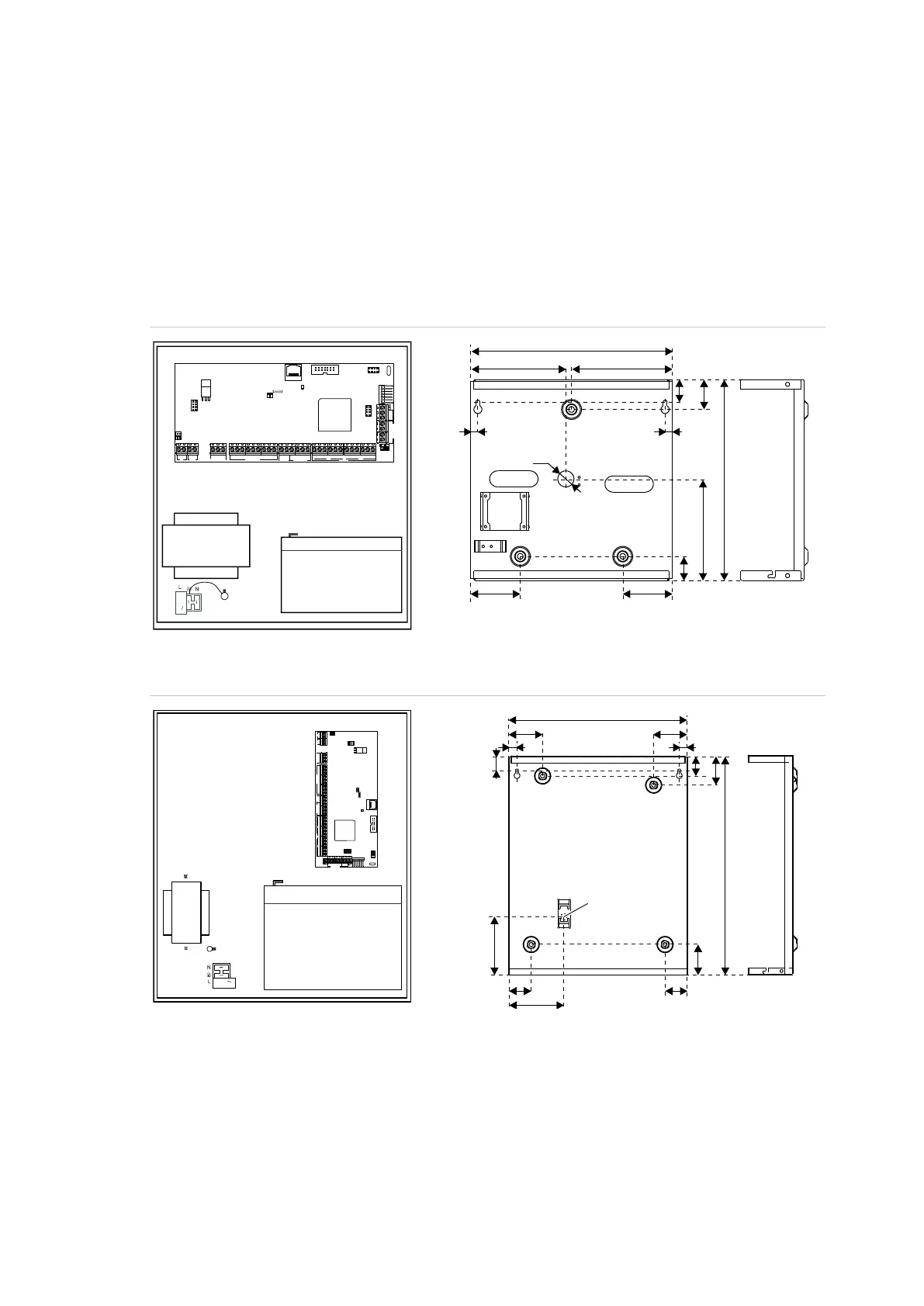

The housings with mounting holes (items 1) are shown in figures below.
Item 2 indicates the pry-off tamper wall stub location.
All dimensions are given in mm.
Figure 1: Small metal housing (-SM)
Figure 2: Medium metal housing (-MM)
RxTx
USB
MI
IP
CON12
CON13
T1
T2
S4
S5
+ +
S1
C
+
S2
C
T C
+ + - -
1 C 2 3 C 4 5 C 6 7 C 8
~
~
+ -
AC BATT
LC-OUTPUTS
HC-OUTPUTS
SIR TMP AUX POWER
INPUTS
CT
+
S3
C
CON16
NTC
COMMS
+12V 0VD+ D-
250
250
9
30
61.5
28.2
37.2
125
9
61.5
126.4
118
Ø20
(2)
()1 ()1
()1
()1 ()1
RxTx
USB
MI
IP
CON12
CON13
T1 T2
S4
S5
+
+
S1 C
+
S2 C
T C
+
+
- -
1 C 2 3 C 4 5 C 6 7 C 8
~
~
+ -
AC
BATT
LC-OUTPUTS
HC-OUTPUTS
SIR TMP AUX POWER
INPUTS
CT
+
S3 C
CON16
NTC
COMMS
+12V 0VD+ D-
315
40
385
55
(1)
(1)
(1)
(1)
(1)
(1)
15
104.9
102.5
60
(2)
60
15
24.1
51
35
40
