20 Advisor Advanced ATSx000A(-IP) Installation and Programming Manual
Siren connection

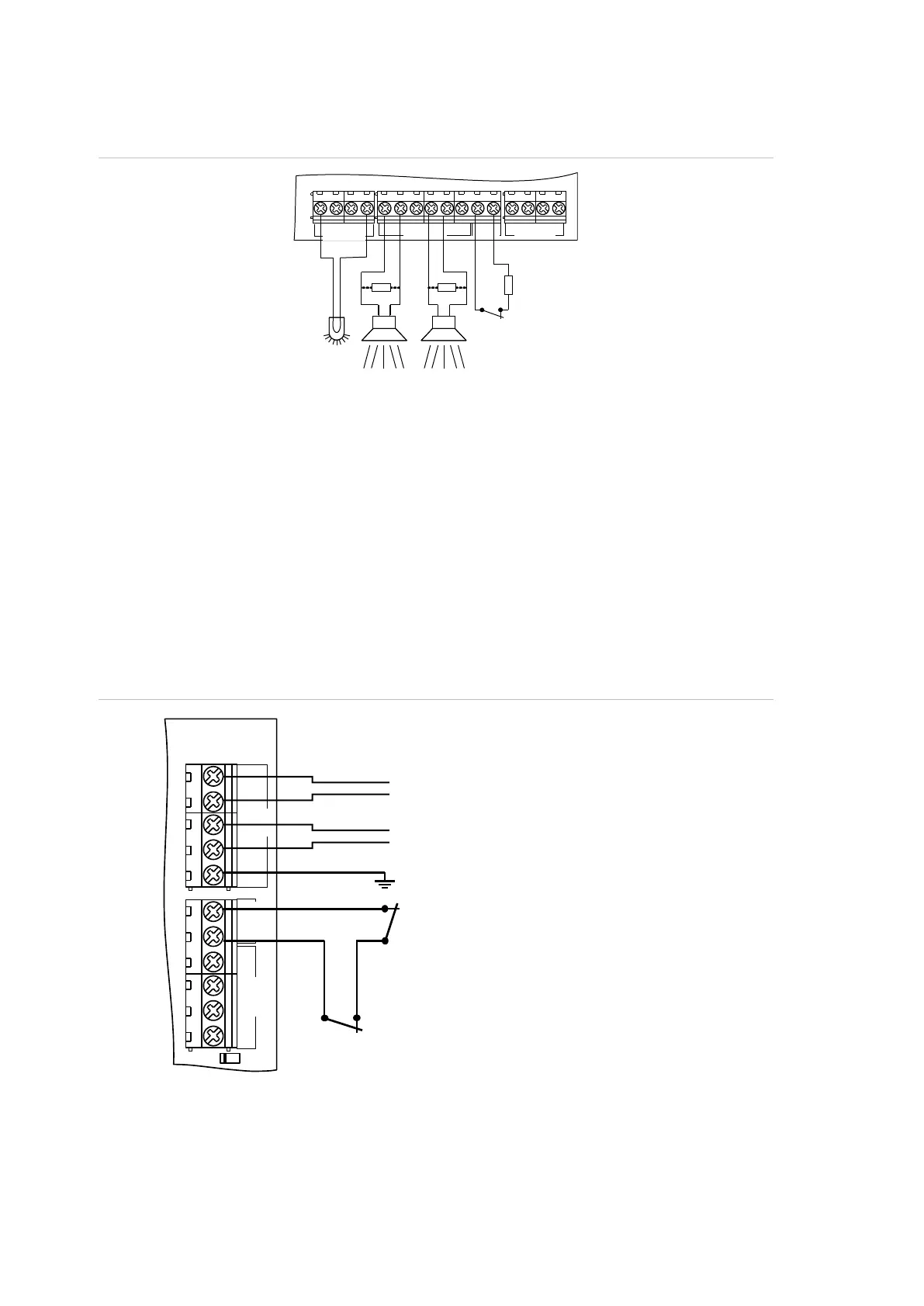

Figure 18: Siren connection examples
(1) Siren EOL resistor (1 kΩ). It must be
installed if siren does not contain a
built-in resistor.
(2) Siren.
(3) Beacon, maximum 50 mA.
(4) Siren tamper EOL resistor.
(5) Siren tamper (normally closed).
Note: Siren output can be configured as internal or external. This is accomplished via panel
settings, not by configuring the panel hardware. See “Default output assignments” on page 23
and “Filters, outputs, and triggers” on page 116.
Other connections
Tamper connection
Figure 19: Earthing, external tamper, and PSTN connection in ATSx000A(-IP)
(1) Phone (switched)
(2) PSTN line
(3) Earthing
(4) External tamper (normally closed)
(5) Optional pry-off tamper (normally
closed) required by EN 50131
Grade 3 and VdS-C regulations
PSTN connection
For ATSx000A(-IP), refer to Figure 19 above.
+ +
S1
C
+
S2
C T C + + - -
LC-OUTPUTS
HC-OUTPUTS SIR TMP AUX POWER
S3
S4
S5
(1)
(2)
(3)
(4)
(5)
(1)
(2)
Tx
Ax/R1
B/TA/R
EARTH
CTD-
D+
0V
+12V
COMMS
TAMPER
PSTN
(1)
(2)
(3)
(4)
()5
