16 Advisor Advanced ATSx000A(-IP) Installation and Programming Manual

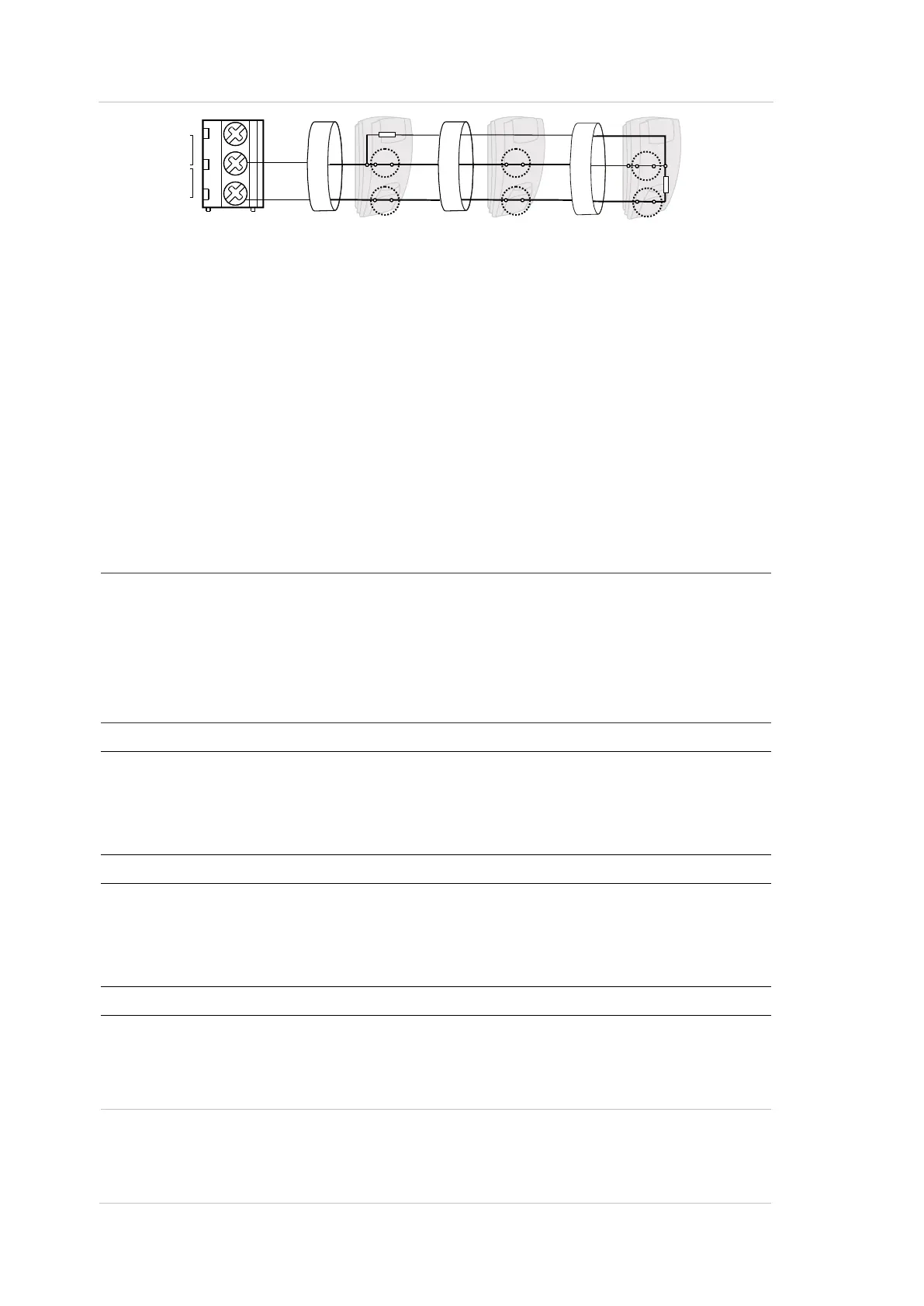

Figure 16: Dual loop example
(1) Zone terminal
C Common terminal
Z1 Zone 1 input
Z2 Zone 2 input
(2) Detector
A Alarm relay
T Tamper relay
Possible EOL connections are listed in “EOL connection types” on page 19.
Values for end-of-line resistors
The following list contains the values for end-of-line resistors and possible zone
states. Both the resistance and the voltage measured across the zone are
shown.
Depending on the input type and anti-masking option, the following EOL values
can be available.
Note: Values for other EOL are equal to Dual, except all ranges but normal are
alarm ranges.
Note: Values for other EOL are equal to Dual, except all ranges but normal are
alarm ranges.
RA=10 kΩ, RT=5 kΩ,
RF=5 kΩ
C
Z2
(1)
RA
A
()2
RT
T
Z1
A A
T T
()2 ()2
