Radar Target Generator - RTG1002 Edition Date: 19-Apr-18
used when analyzing the range Doppler compensation on high velocity targets.
5. Forced Trigger mode: Will allow the target generator to create trigger events every Xus
(determined by the pulse period) It allows to delay continuous wave signals, could be useful on
FMCW radar.
On pulse Doppler radar, this checkbox should be off, for normal operation.
6. Adaptive beam modulation: when OFF, RTG1002 will return the signal level calculated in the
didactical panel, regardless of the power that was received. This behavior is similar to the operation
of RTG698, predecessor of RTG1002. When ON, the return power of RTG1002 will be adjusted
according to the received power, the calculated peak power will be used as a relative reference.

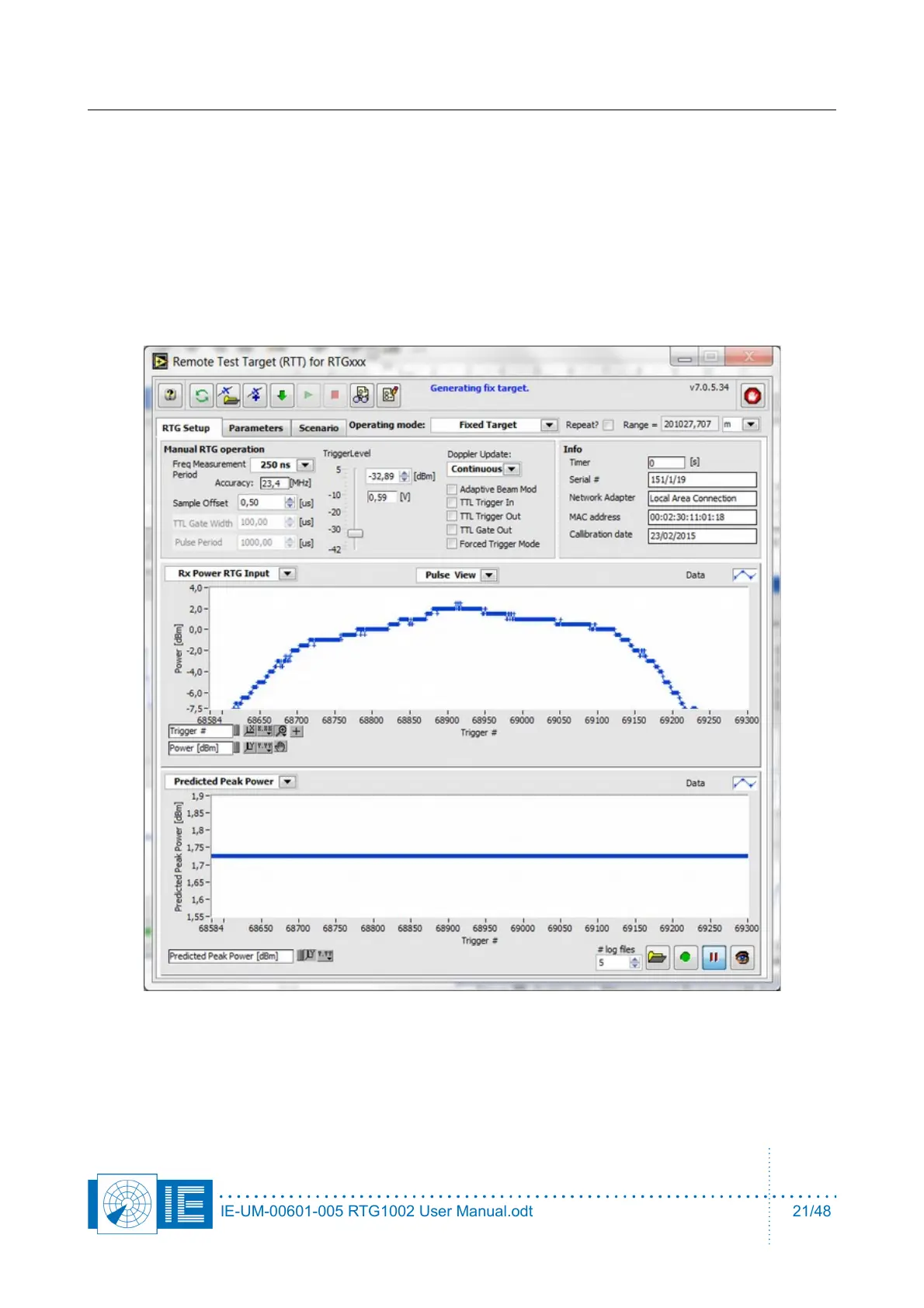

7. The predicted peak power is displayed in the didactical panel, it can also be viewed in the pulse view
window of RTG setup.
IE-UM-00601-005 RTG1002 User Manual.odt 21/48
