Intersoft Electronics RTG1002 - Figure 27: Modulator 2 Used to Modulate a Signal Vs Azimuth to Simulate a Jammer or Interfering

Radar Target Generator - RTG1002 Edition Date: 19-Apr-18
Verify the output powers injected in the radar vs range. Make sure the powers are within the available
dynamic range indicated by the horizontal lines in red and blue color.
Verify the RTG1002 output power vs azimuth. This view is selectable for every scan nr of the scenario.
Modulator 2 setting will depend on the the use of modulator 2 as well.
IE-UM-00601-005 RTG1002 User Manual.odt 39/48

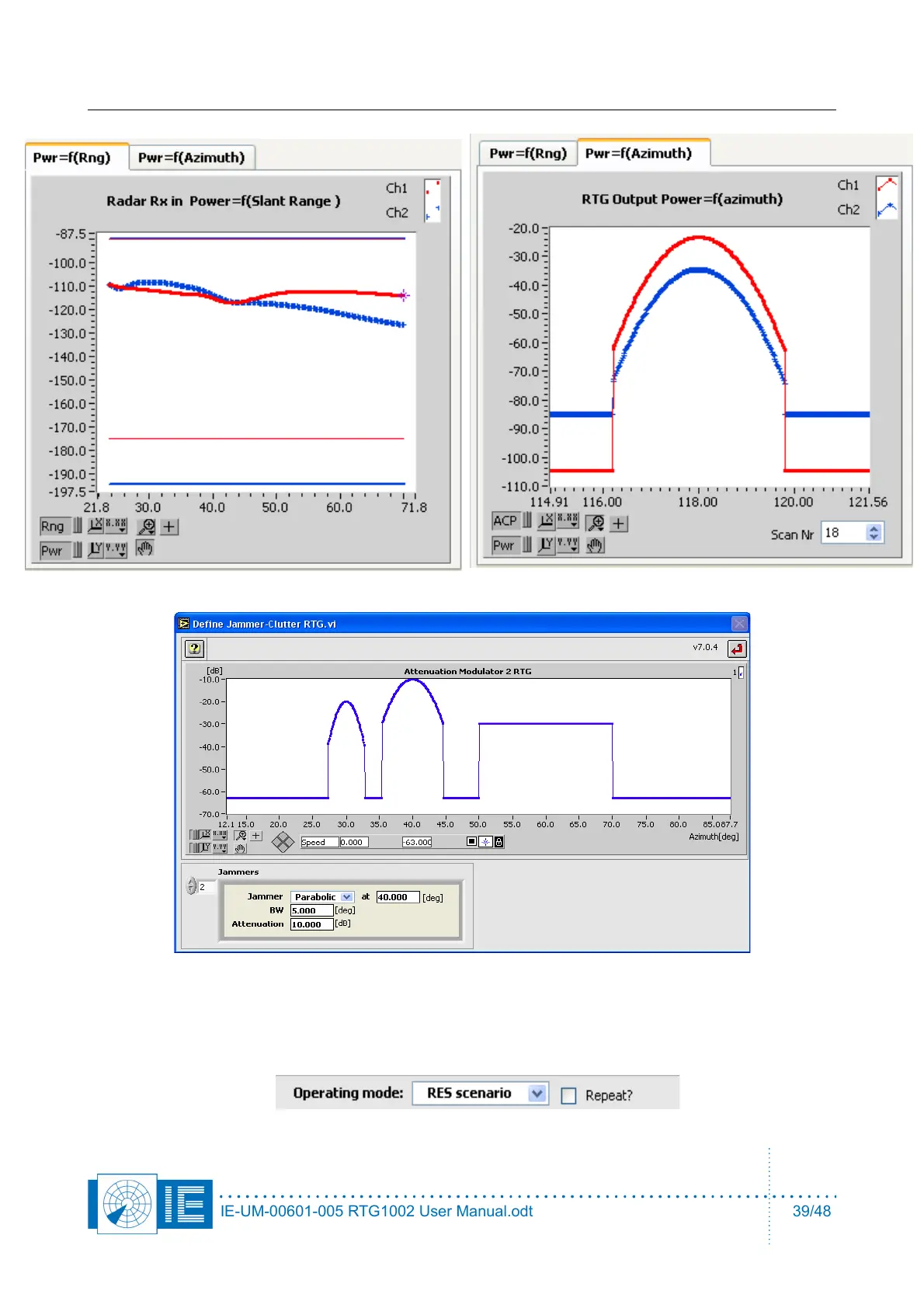

Figure 27: Modulator 2 used to modulate a signal vs azimuth to simulate a jammer
or interfering signals.
