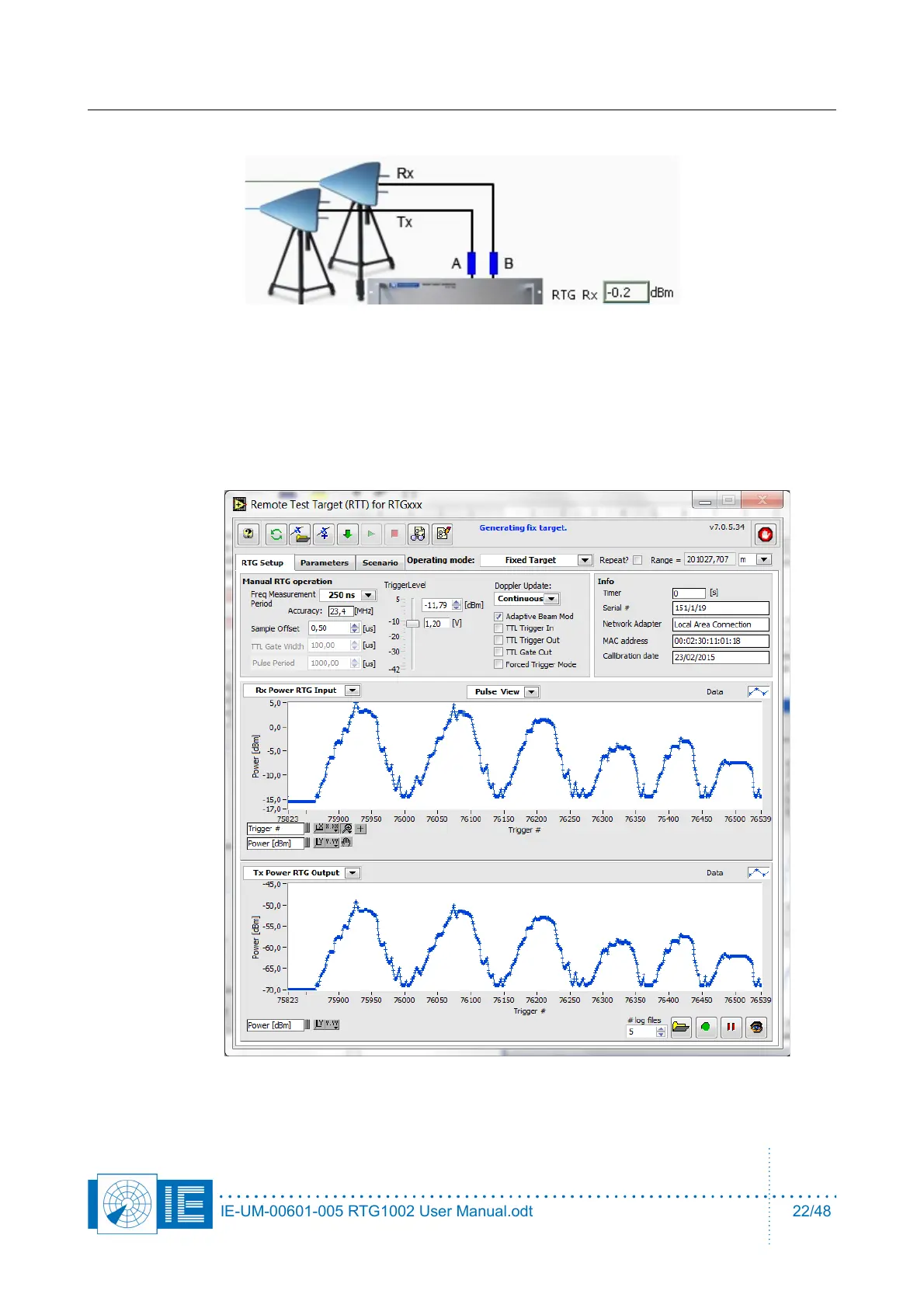

Intersoft Electronics RTG1002 - Figure 10: Predicted Peak Power in the Didactical Panel; Figure 11: Pulse View, RX Power and Tx Power with Adaptive Beam Modulation ON, Fixed Target

Radar Target Generator - RTG1002 Edition Date: 19-Apr-18
8. The predicted peak power is -0.2dBm in this example and the peak power measured on the beam
dwell is +0.5dBm. Then RTG1002 will return 0.7dB less then precalculated peak power level for the
test target with a given RCS. This will generate a more realistic test target especially when the radar
has the ability to point the transmit beam in different ways. On the other hand it will double the effect
of 'not taking the cable loss into account' on the generated RCS, so it should be used with some
precaution.
9. The data, available in pulse view, can be recorded in a logfile.
IE-UM-00601-005 RTG1002 User Manual.odt 22/48
Figure 11: Pulse view , RX power and Tx power with Adaptive Beam Modulation ON,
fixed target
Figure 10: Predicted peak power in the didactical panel
