SECTION 2—FRONT HANGERS
1 0
2. Reposition footplate to desired height, securely tighten locking screw
B
.
3. If necessary, repeat STEPS 1
-
2 to adjust remaining footplate height.
Adjusting Calf pad Height
1. Loosen the locking button
C
that secure the calf pad bracket to the elevating legrest
assembly.
2. Slide the calf pad bracket up or down until the desired calf pad height is obtained.
3. Tighten the locking button
C
securing the calf pad bracket to the elevating legrest
assembly.
4.
If necessary, repeat STEPS 1
-
3 to adjust remaining calf pad bracket.
Adjusting Calf pad Depth
1. Remove the mounting screw
F
that secure the calf pad
E
to the calf pad bracket.
2. Insert mounting screw
F
through one of four calf pad bracket mounting holes.
3. Using the mounting screw
F
, secure the calf pad to the calf pad bracket.
4. If necessary, repeat STEPS 1
-
3 to adjust remaining calf pad assembly.

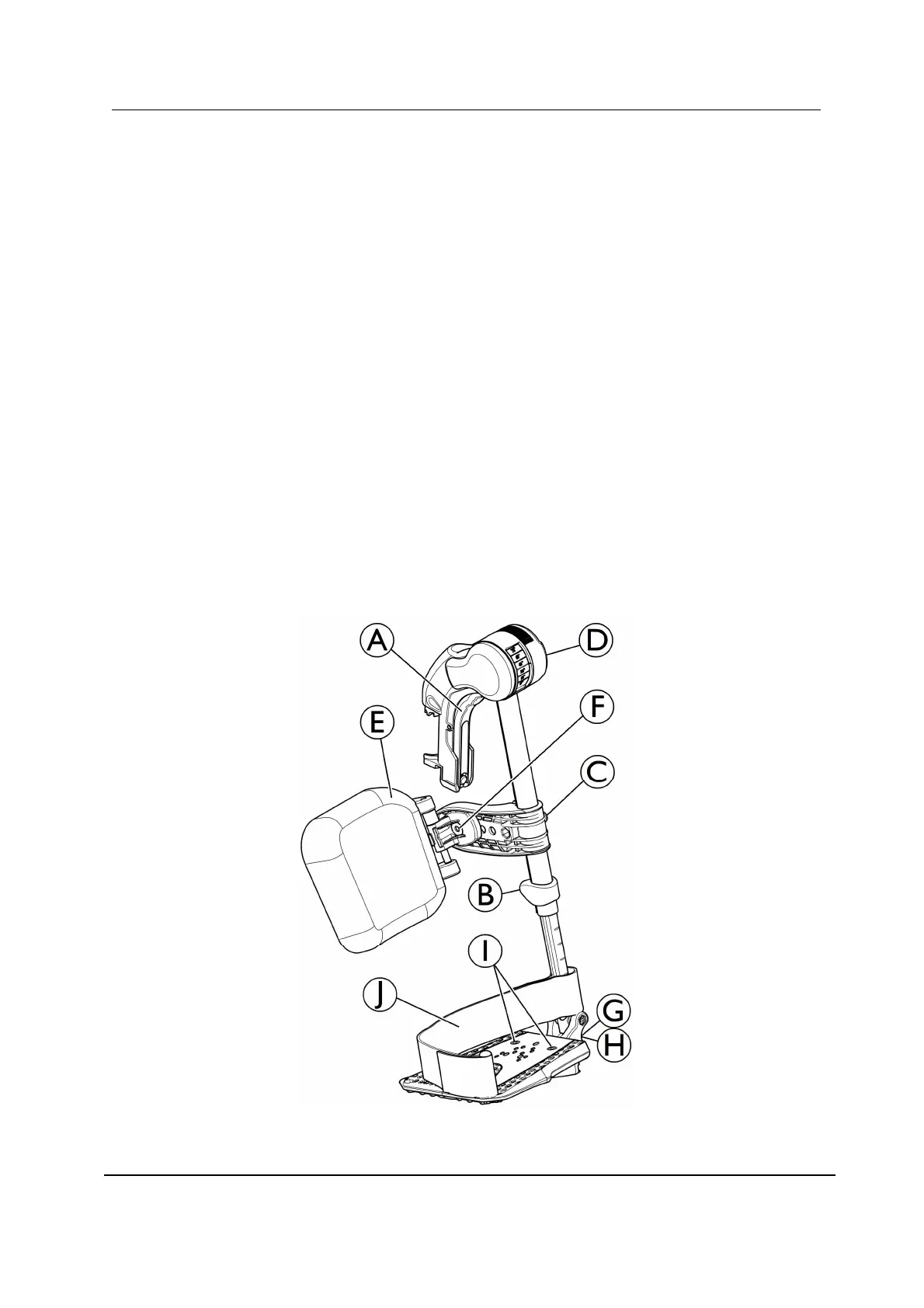

FIGURE 2.5 Adjusting Elevating Legrest Height and Calf pad Height/Depth
