47
SECTION 9—ANTI-TIPPERS
SE CTION 9—ANTI-TIPPER S
W A R N I N G
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Anti-tippers MUST be attached all times. Inasmuch as the anti-tippers are an
option on this wheelchair (you may order it with or without the anti-tippers),
Invacare strongly recommends ordering the anti-tippers as an additional safeguard
for the wheelchair user.
Anti-tippers MUST be fully engaged and release buttons fully protruding out of
adjustment holes.
Ensure both anti-tippers are adjusted to the same mounting hole.
Installing/Adjusting simple Anti-Tippers
Installing Anti-Tippers
NOTE: For this procedure, refer to
FIGURE 9.1.
1. Press release buttons in and insert anti-
tippers with the anti-tipper wheels
pointing toward ground/floor into the rear
frame tubing until bottom release button
locks in place.
2. Measure the distance between the
bottom of the anti
-tipper wheels and the
ground/floor.
3. NOTE: A 30 to 50 mm clearance
between the bottom of the anti-tipper
wheels and the ground/floor MUST be
maintained always.
4. If the distance between the bottom of
anti-tipper wheels and the ground/floor is
not 30 to 50 mm, adjust anti-tippers.
NOTE: Make sure that the anti-tipper wheel is ALWAYS located outside the rear wheel volume
(50 mm Minimum); refer to FIGURE 9.3.

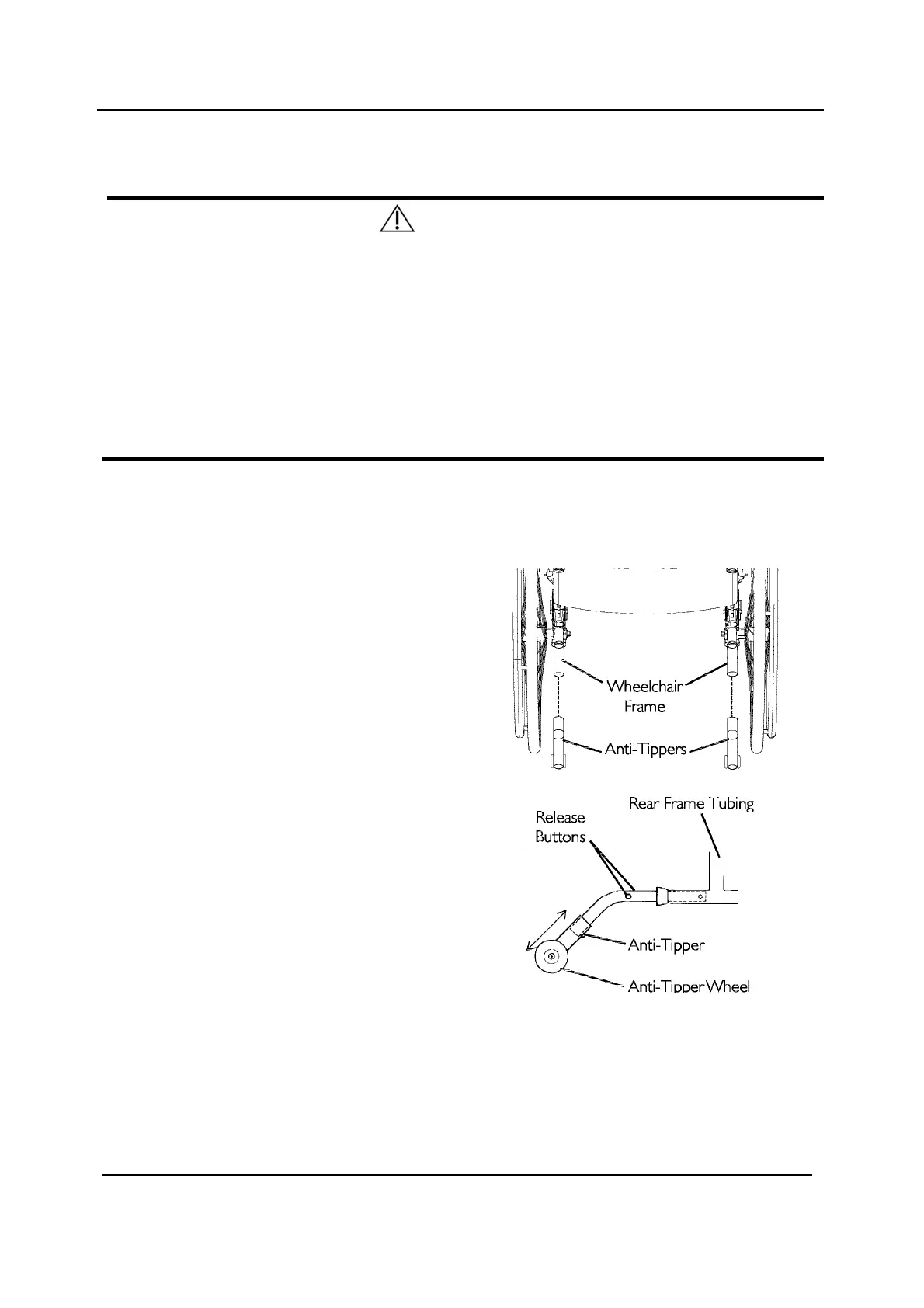

FIGURE 9.1 Installing Simple Anti-Tippers
