Invacare Action 3 NG Service Manual

4 4
SECTION 8—OPTIONS
Installing/Adjusting Hub Brake
NOTE: For this procedure, refer to FIGURE 7.5.
1. Install the hub brake lever with the cable on the backrest canes.
2. Secure the cable to the lever of the brake shoes support by tightening the cable bolt
3. Adjust the cable tension to desire brake effort by screw/unscrew the tensional bolt
situated on the brake shoes support.
4. Repeat STEPS 1 to 3 for the other side
NOTE: the cable adjustment MUST have the same brake effect on both sides.
Tensional Bolt
Cable
Brake Shoes Support
Backrest cane
Brake Lever

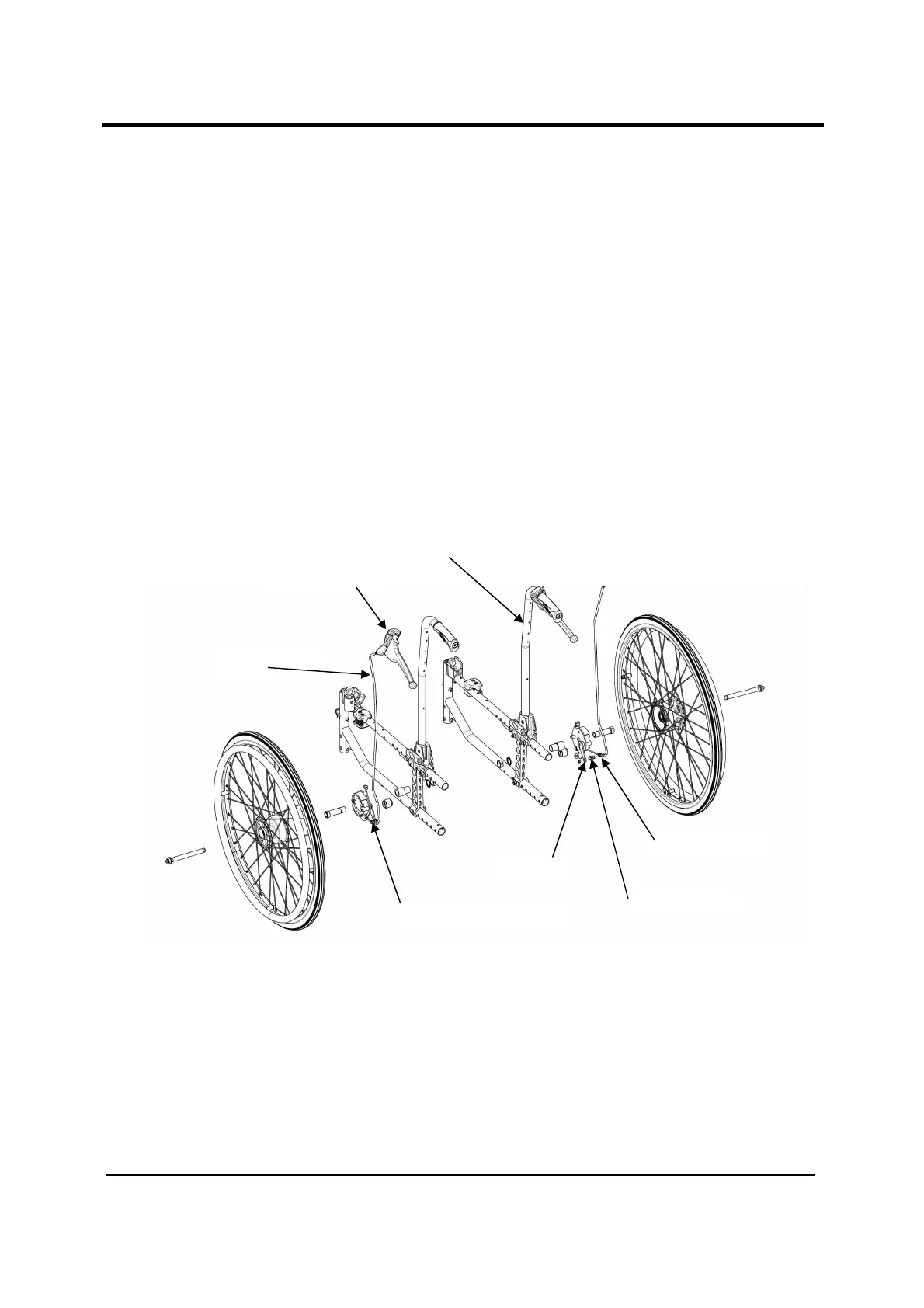

FIGURE 7.5 Installing/Adjusting Hub Brake
Lever
Cable Bolt

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
