SECTION 2—FRONT HANGERS
8
Replacing Heel Strap
NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove the locking screw that secure the footrest tube to the footrest support.
2. Remove the lower footrest assembly.
3. Remove the mounting screw, strap pin
that secure the heel strap to the
footplate.
4. Slide heel strap over footrest tube.
NOTE: When securing the heel strap to
the footrest assembly, tighten the
mounting screw and strap pin until they
are secure.
5. Using the mounting screw, strap pin,
secure the heel strap to the footplate.
6. Using the locking screw (M6), secure
the footrest tube to the footrest
support.
Installing Calf Strap
NOTE: For this procedure, refer to FIGURE 2.3.
1. Secure the optional calf strap around the hanger hook.
FIGURE 2.3 Installing Calf Strap
Hanger Hook
Calf Strap
Locking screw (M6)
Strap pin
Mounting screw
Heel strap

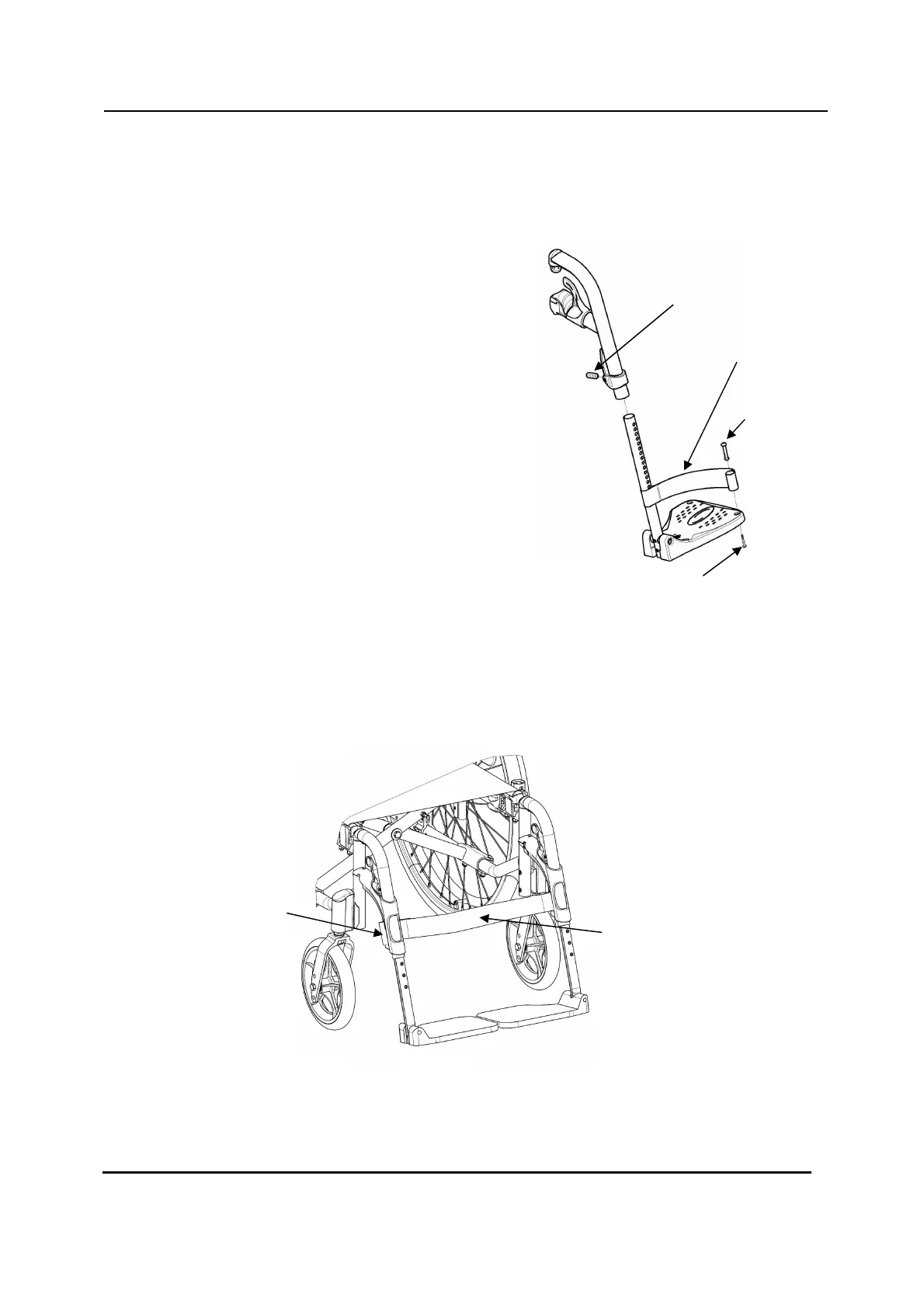

FIGURE 2.2 Replacing Heel Strap
