Invacare Action 3 NG Service Manual

SECTION 4—SEAT/BACK
2 6
Installing/Removing the Folding Back Brace
W A R N I N G
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
NOTE: For this procedure, refer to FIGURE 4.13.
NOTE: To remove the folding back brace, reverse this procedure.
5. Remove the upholstery from the back canes.
6. Install the 2 mounting screws (M5) through the holes of the back cane and into the
plastic inserts.
7. Secure the back brace to the back canes with the mounting screws (M5).
8. Reinstall back upholstery onto wheelchair.
Mounting
screws (M5)

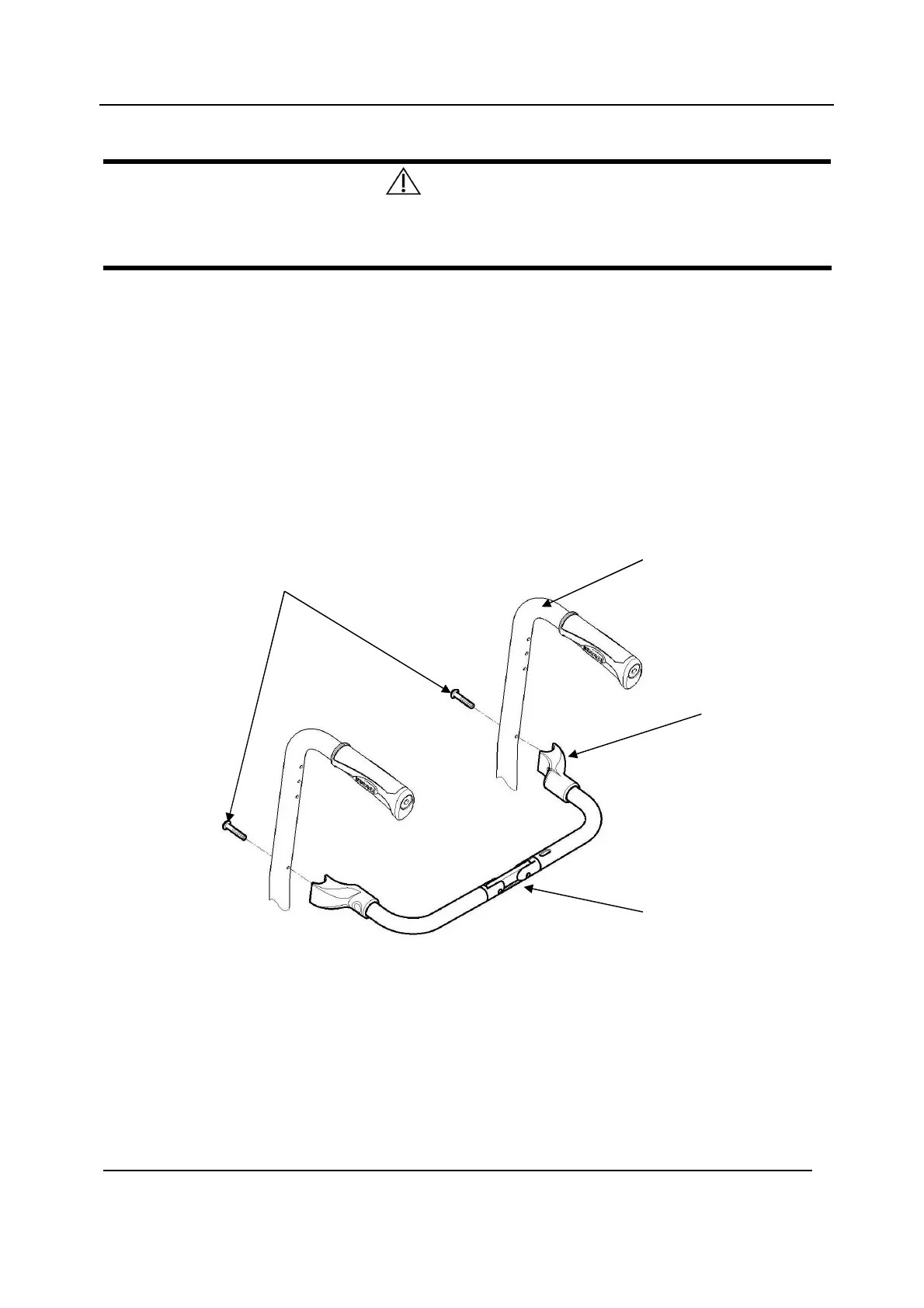

FIGURE 4.13 Installing/Removing the Folding Back Brace
Joint
Plastic insert
Back cane

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
