45
SECTION 8—OPTIONS
SE CTION 8—OPTIONS
W A R N I N G
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Make sure the detent pin and locking pins of the quick-release button are fully
released before operating the wheelchair.
The locking pins MUST be protruding past the inside of rear wheel hub for a positive
lock. Keep locking pins clean.
Ensure both wheels are adjusted to the same mounting hole.
Installing/Adjusting Dual Handrim (DHR)
Installing Dual Handrim (DHR)
NOTE: For this procedure, refer to FIGURE 8.1.
1. Remove the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
2. Remove the nut and washer that secures the axle bracket to the axle plate.
3. Align the DHR Axle bush with one of the five adjustment holes on the axle plate
4. Secure the DHR axle bush to the axle plate, at the desired height, with the nut and
washer. Insert the wheel with the axle DHR wheel axle into the DHR axle bush
5. Repeat STEPS 1 to 6 for the other rear wheel.
6. Insert the gear shaft onto the end of the wheel axle to connect both DHR wheels.

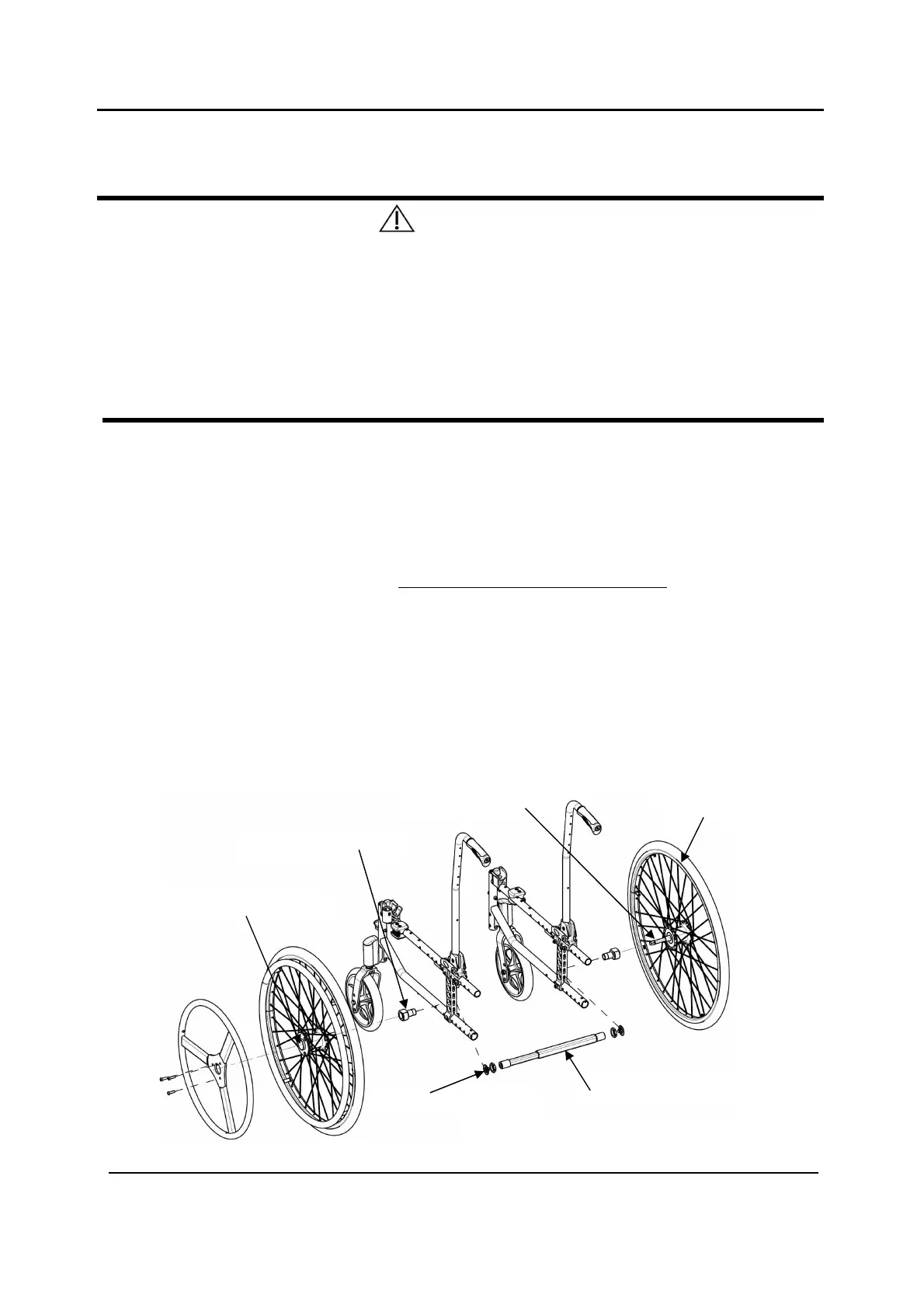

FIGURE 8.1 Installing Dual Handrim
