Invacare Action 3 NG Service Manual

33
SECTION 5—REAR WHEELS/FRONT CASTERS
Adjusting Rear Wheel Height
NOTE: For this procedure, refer to FIGURE 5.7.
1. Remove the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
2. Remove the locknut and washer that secures the axle bracket to the axle plate
3. Align the axle bracket with one of the five adjustment holes on the axle plate.
4. Secure the axle bracket to the axle plate, at the desired height, with the locknut
and washer.
5. Install the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
6. Repeat STEPS 1 to 5 for the other rear wheel.
NOTE: Both rear wheels should be set at the same position.

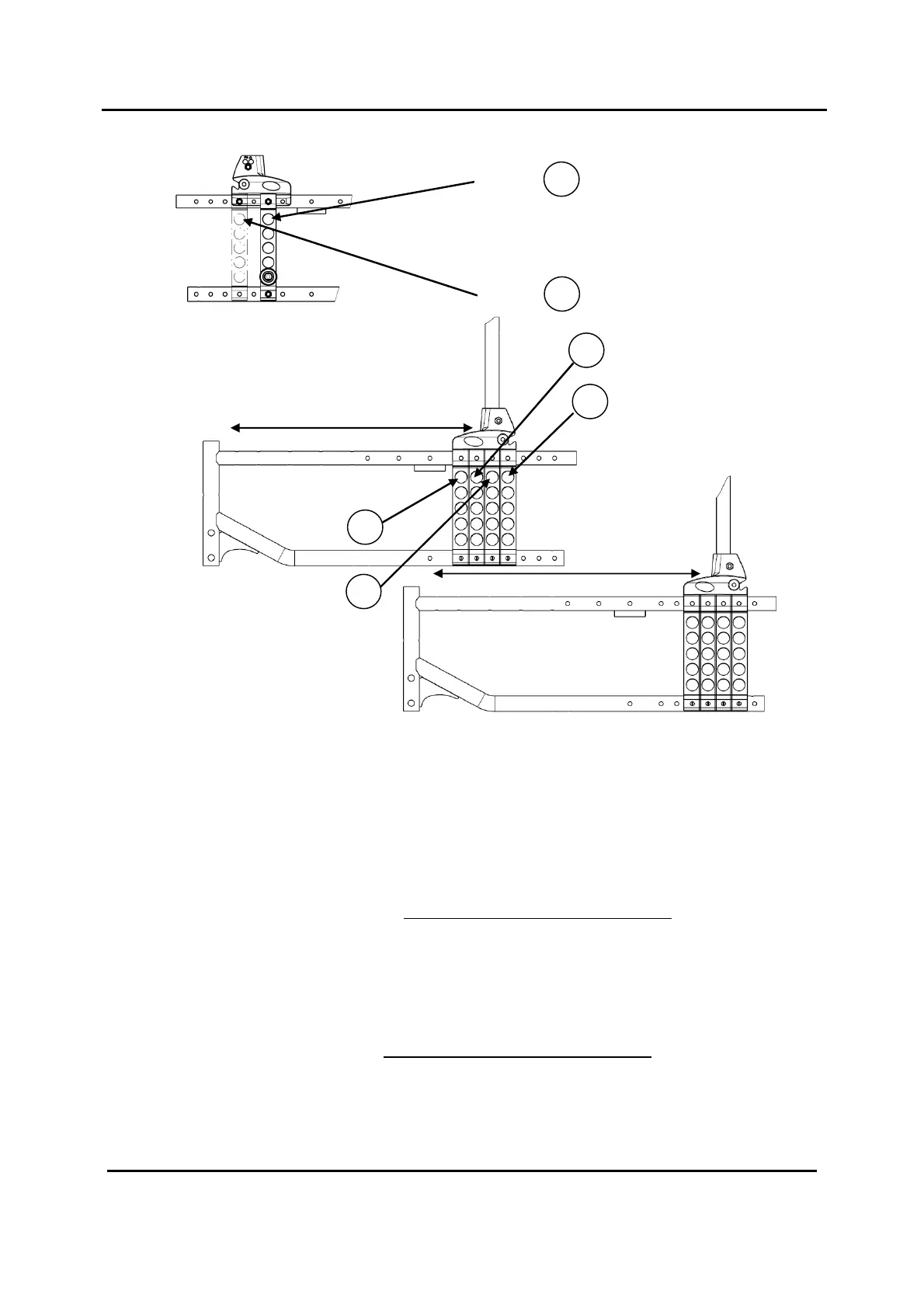

FIGURE 5.6 4 Possible Positions of Wheel Plate
Seat Depth =
40 cm +/
-
1cm
Seat Depth =
45 cm +/
-
1 cm
C
D
A
B
D
ETAIL “A” Factory Setting
Position Fixed backrest
A
Position Recliner backrest
B

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
