Invacare Action 3 NG Service Manual

1 6
SECTION 4—SEAT/BACK
1. Fold the wheelchair.
2. Remove the mounting screws (Torx) that secures the seat upholstery to the front and back
seat rails.
3. Remove the end caps from the front of the seat rails.
4. Slide the seat upholstery out of the seat rails.

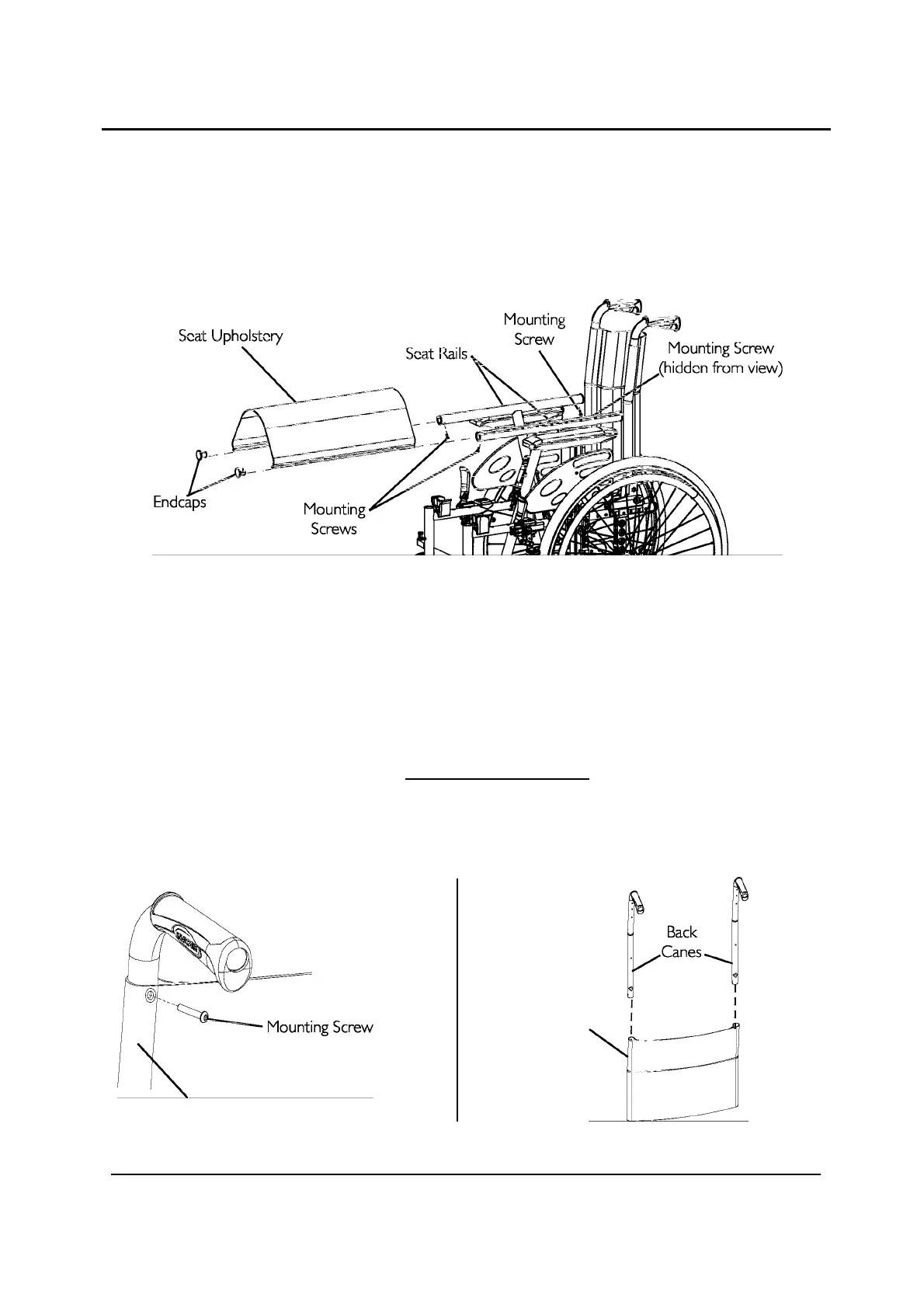

FIGURE 4.2 Removing/Installing Seat Upholstery
Removing/Installing Standard Back Upholstery
NOTE: For this procedure, refer to FIGURE 4.3.
Removing Back Upholster y
NOTE: To Install the Back Upholstery, reverse this procedure.
1. Remove the back canes. Refer to Removing Back Canes paragraph.
2. Remove the mounting screw that secures the back upholstery to the back canes.
Refer to Detail “A”.
3. Remove the back upholstery from the back canes. Refer to Detail “B”.
FIGURE 4.3 Removing/Installing Standard Back Upholstery
Back Cane
DETAI L “ A”
DE T AI L “B”
Upholstery

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
