Invacare Action 3 NG Service Manual

SECTION 4—SEAT/BACK
23
Removing/Installing/Adjusting the Back-Cane Bracket
NOTE: For this procedure, refer to FIGURE 4.10.
NOTE: To install the back-cane bracket, reverse this procedure.
4. Remove the back canes. Refer to Removing Back Canes paragraph.
5. Pull up on the seat upholstery.
6. Remove the two mounting screws and locknuts that secure the back-cane bracket to
the wheelchair frame.
7. Do one of the following:
• To Remove: the back-cane bracket by sliding it off the back of the wheelchair
frame.
• To Adjust: slide the back-cane bracket to one of the four adjustment holes on
the bracket.
NOTE: Both back canes should be set to the same adjustment hole.

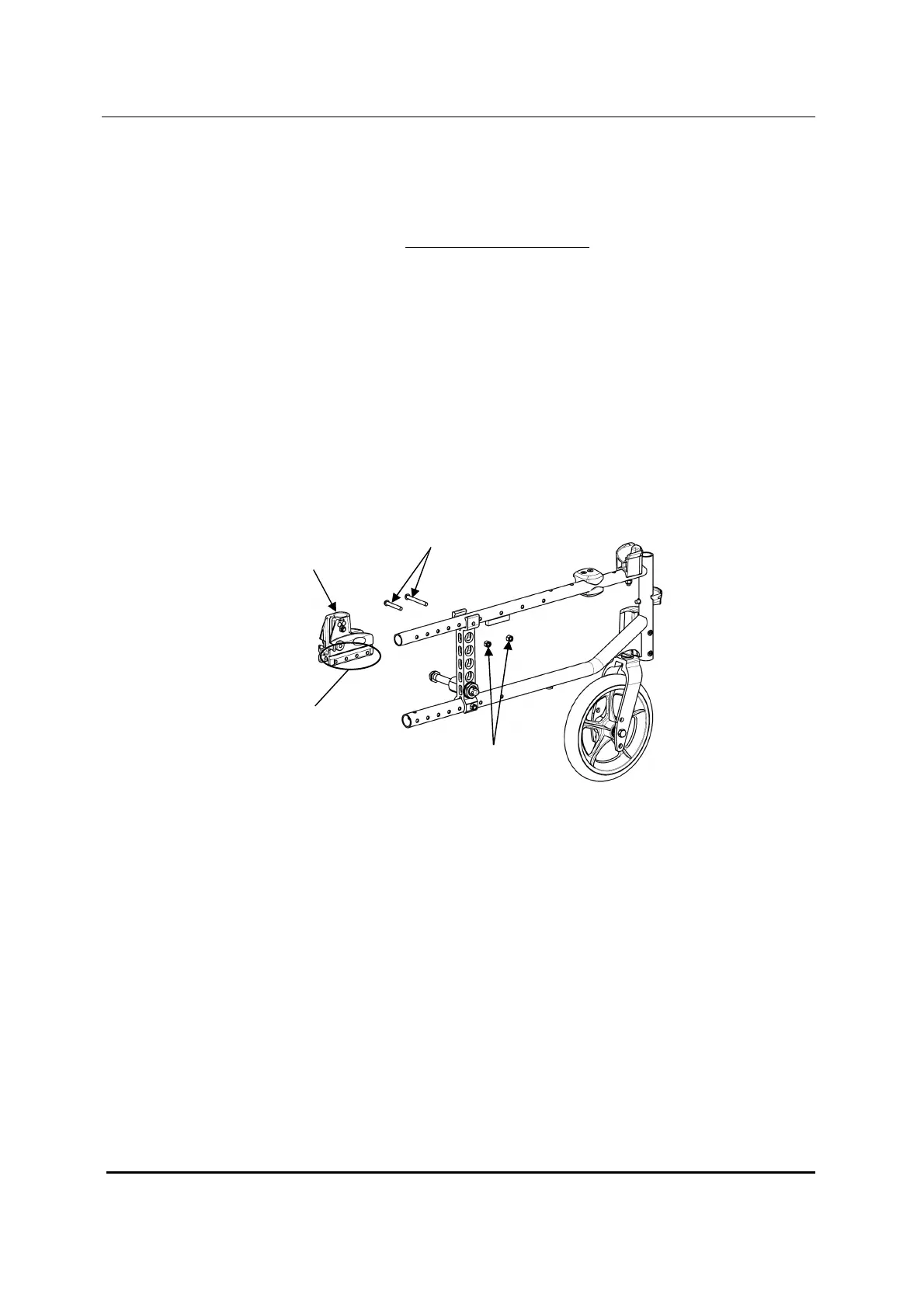

FIGURE 4.10 Removing/Installing/Adjusting the Back Cane Bracket
Back-Cane
Bracket
Mounting
Screws
Locknuts
Adjustment
Holes

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
