Invacare Action 3 NG Service Manual

1 5
SECTION 4—SEAT/ BACK
Removing Angle Adjustable Back Canes
NOTE: For this procedure, refer to FIGURE 4.1 B.
1. Remove the mounting screw and locknut (M6) that secures the back cane to the back
cane bracket.
2. Repeat STEP 1 for the other back cane.
3. Remove the back canes out of the back cane brackets.
Removing/Installing Seat Upholstery
NOTE: For this procedure, refer to FIGURE 4.2, next page.
Removing Seat Upholstery
NOTE: To install the seat upholstery, reverse this procedure.
Mounting
screw (M6)
Locknut (M6)
Back cane
bracket
Backrest
upholstery
Back cane

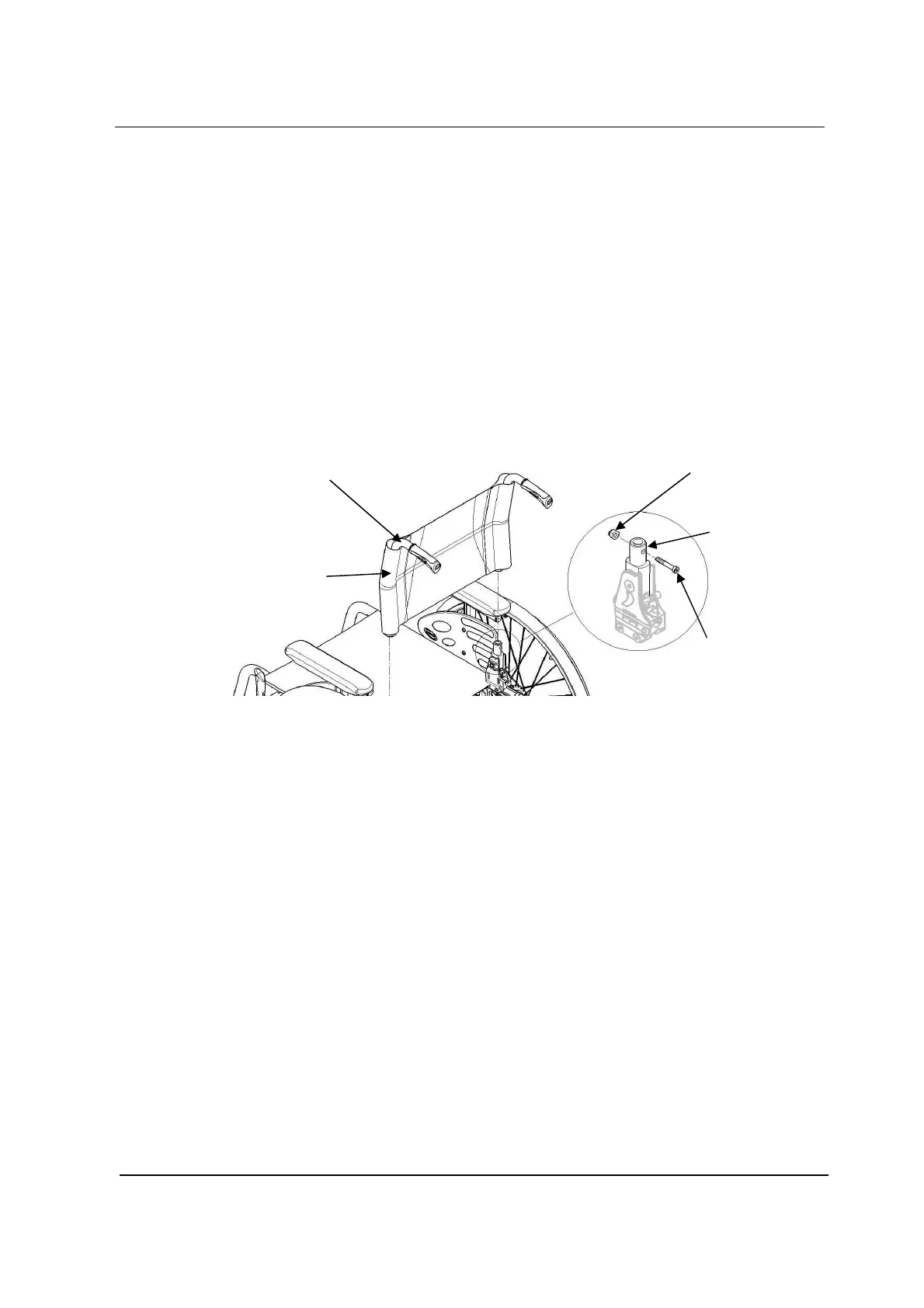

FIGURE 4.1 B Removing Angle Adjustable Back Canes

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
