SECTION 3—ARMRESTS
Replacing Armrest Arm pad
NOTE: For this procedure, refer to FIGURE 3.3.
1. Remove the mounting screws that secure the arm pad to the armrest assembly.
2. Replace arm pad and securely tighten with the existing mounting screws (M5).
3. Repeat STEPS 1 - 2 for the opposite side if necessary.

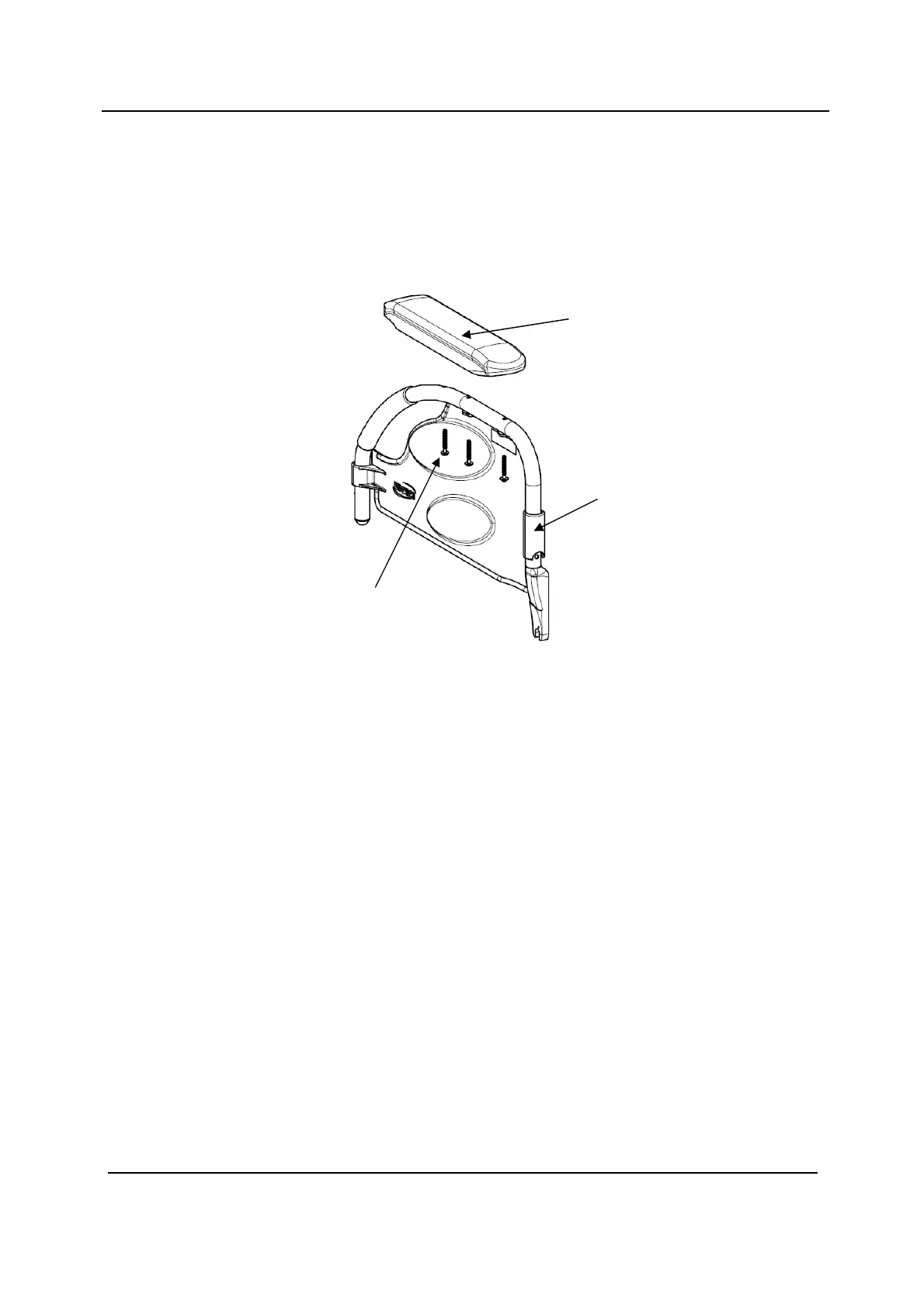

FIGURE 3.3 Replacing Armrest Arm Pad
Armrest assembly
Mounting screw (M5)
Armpad

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
