Invacare Action 3 NG Service Manual

4 6
SECTION 9—ANTI-TIPPERS
Installing/Adjusting Headrest
W A R N I N G
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
Installing Headrest
NOTE: For this procedure, refer to FIGURE 8.2.
1. Install the back brace. Refer to Installing removing the standard back brace
paragraph.
2. Set the Headrest bracket (mounting bolts, headrest bracket and the hand wheel A)
in the fixing holes on the standard back brace tube.
3. Introduce the vertical tube that support the headrest cushion into the headrest
bracket.
4. Adjust to the appropriate height position with the user sat into the chair, tighten the
hand wheel A.
5. Adjust the headrest cushion (depth and angle position) and tighten securely the
screws C and the handle D.

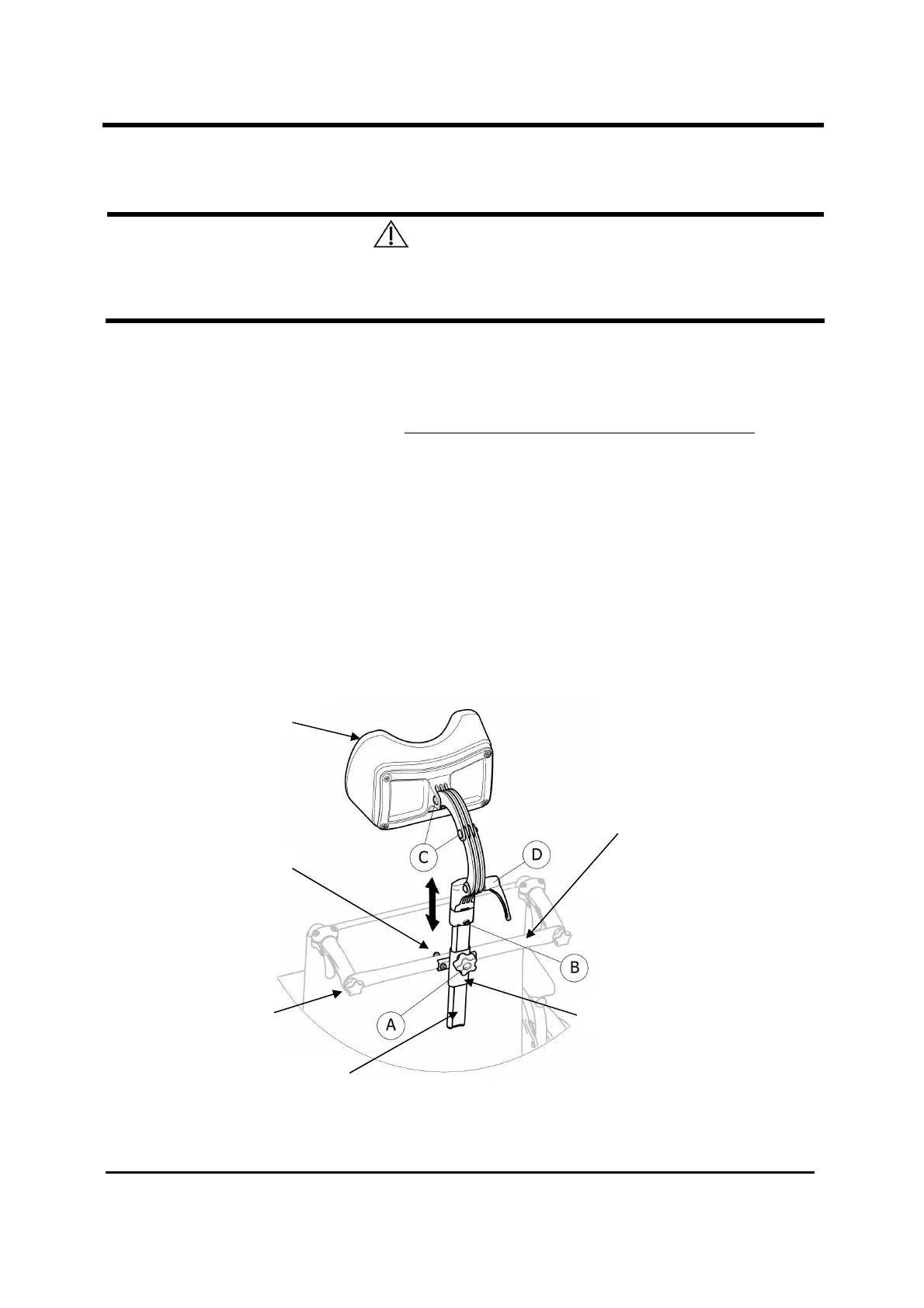

FIGURE 8.2 Installing Headrest
Headrest Cushion
Vertical tube
Headrest Bracket
Mounting
Bolt
s
Hand S
crews
B
ack
B
race

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
