Invacare Action 3 NG Service Manual

SECTION 4—SEAT/BACK
21
Removing/Installing different type of Backrests
Recliner backrest (Mechanical and Gas strut versions)
NOTE: For this procedure, refer to FIGURE 4.8.
To Install the Recliner backrest, reverse this procedure from STEP 1 to 3.
1. Remove the back-cane bracket. Refer to Removing Back-Cane Bracket paragraph.
2. Pull up on the seat upholstery.
3. Remove the two mounting screws and locknuts that secure the back-cane bracket
to the wheelchair frame.
4. Install the new set including the appropriate backrest upholstery
NOTE: Both back canes should be set to the same adjustment hole.

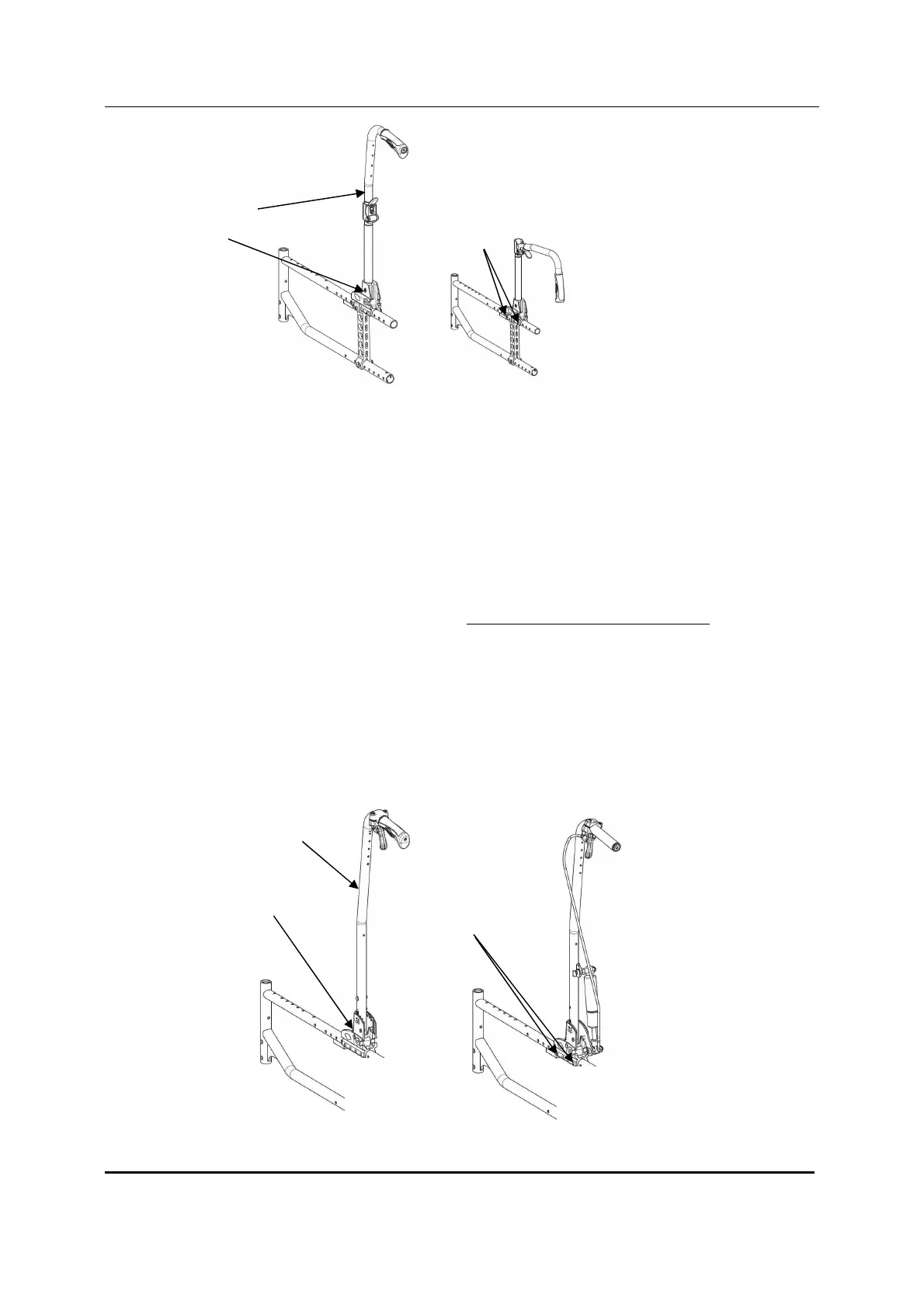

FIGURE 4.7 Fixed/Folding Backrest
Mounting
Screws
Back Cane
Bracket
Backrest Cane
Backrest Cane
Back-Cane
Bracket
Mounting
Screws
FIGURE 4.8 Recliner Backrests

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
