Invacare Action 3 NG Service Manual

SECTION 4—SEAT/BACK
25
Installing/Removing the Standard Back Brace
W A R N I N G
If a back brace is already installed, you don’t have to re-install the back cane
inserts (for fixed backrest canes only).
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is fitted and tightened securely - otherwise injury or
damage may occur.
NOTE: For this procedure, refer to FIGURE 4.12.
NOTE: To remove the back brace, reverse this procedure.
1. Remove the end caps from the back canes.
2. Remove the handles from the back canes (Cut the handle lengthwise thanks to
a sharp tool).
3. Install the inserts into the canes (fixed backrest canes only).
4. Secure the inserts with mounting screws (fixed backrest canes only).
5. Install the handles on the back canes (Previously, spray a solution
of neutral alcohol inside the handle and settle it immediately on the back cane).
6. Align the back brace ends with the handles of the back canes.
7. Secure the back brace to the back canes with the hand screws.

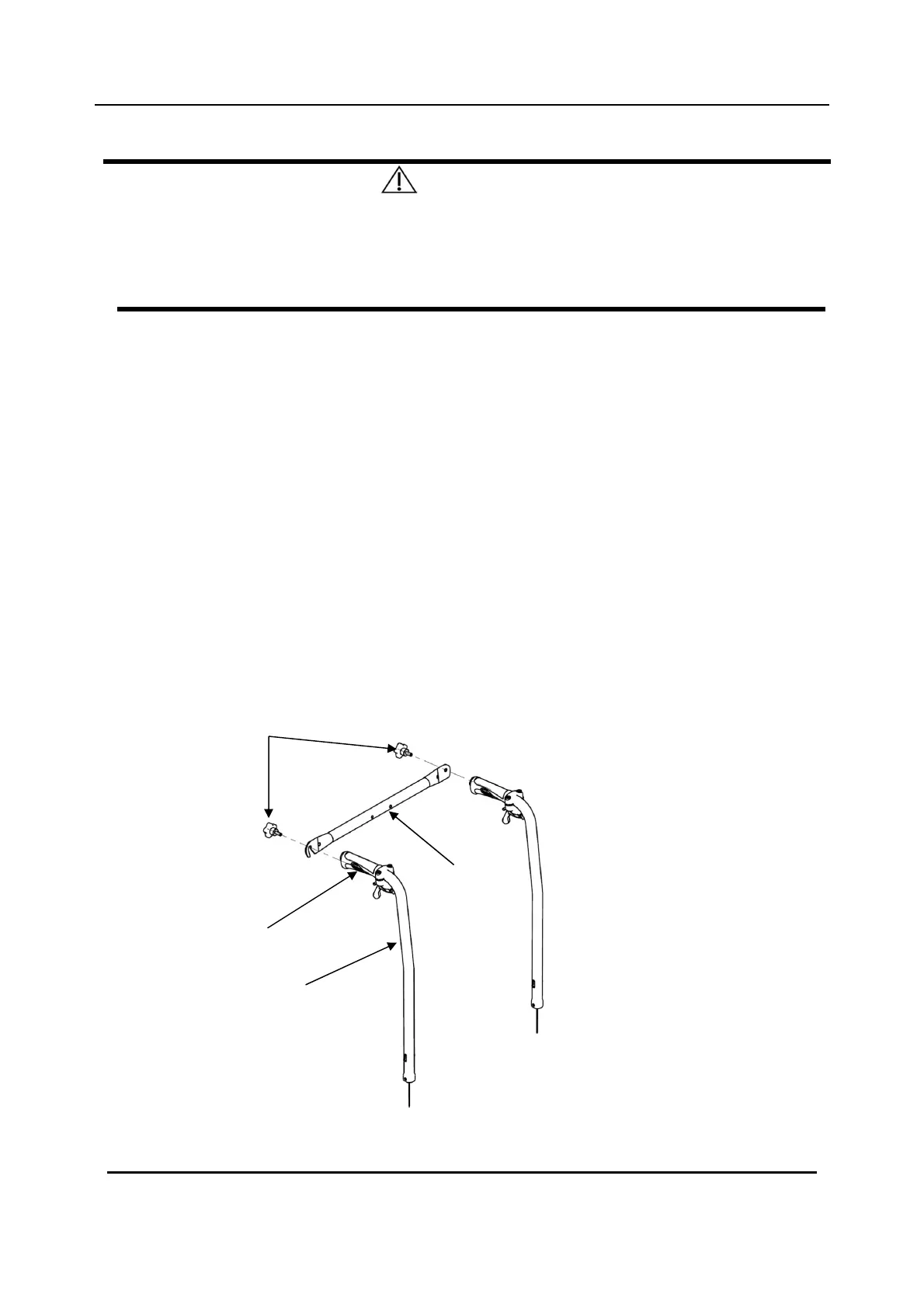

FIGURE 4.12
Installing/Removing the Back brace
Hand Screws
Handle
Back Brace
Back Canes

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
