SECTION 3—ARMRESTS
S E C T I O N 3 — A R M R E S T S
W A R N I N G
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Removing/Installing and Adjusting Removable Armrests (n°1 & n°4)
NOTE: For this procedure, refer to FIGURE 3.1.
Removing/Installing removable armrest (n°1 & n°4)
NOTE: To remove the removable armrest, reverse this procedure.
1. Previously press on the locking mechanism A located at the bottom of the armrest
vertical bracket.
2. Pull /Push the armrest by the arm cushion
out of the holder.
3. To adjust how easy or difficult it is to
pull/push the armrest out of the holder,
change the degree to which the 4 screws
D (M6) are tightened.
Adjusting removable armrest Height
NOTE: For this procedure, refer to FIGURE 3.1.
1. Remove the removable armrest. Refer to
Removing/Installing removable armrest
paragraph.
2. Loosen the screw B (M6) in the groove C of
the armrest tube.
3. Move the armrest upwards or downwards
until you reach the desired height, while
keeping screw B (M6) in place (at the top
edge of the holder).
4. Tighten firmly the screw B (M6).
5. Perform the setting on both sides.
6. Reinstall the removable armrest. Refer to
Removing/Installing removable armrest
paragraph.

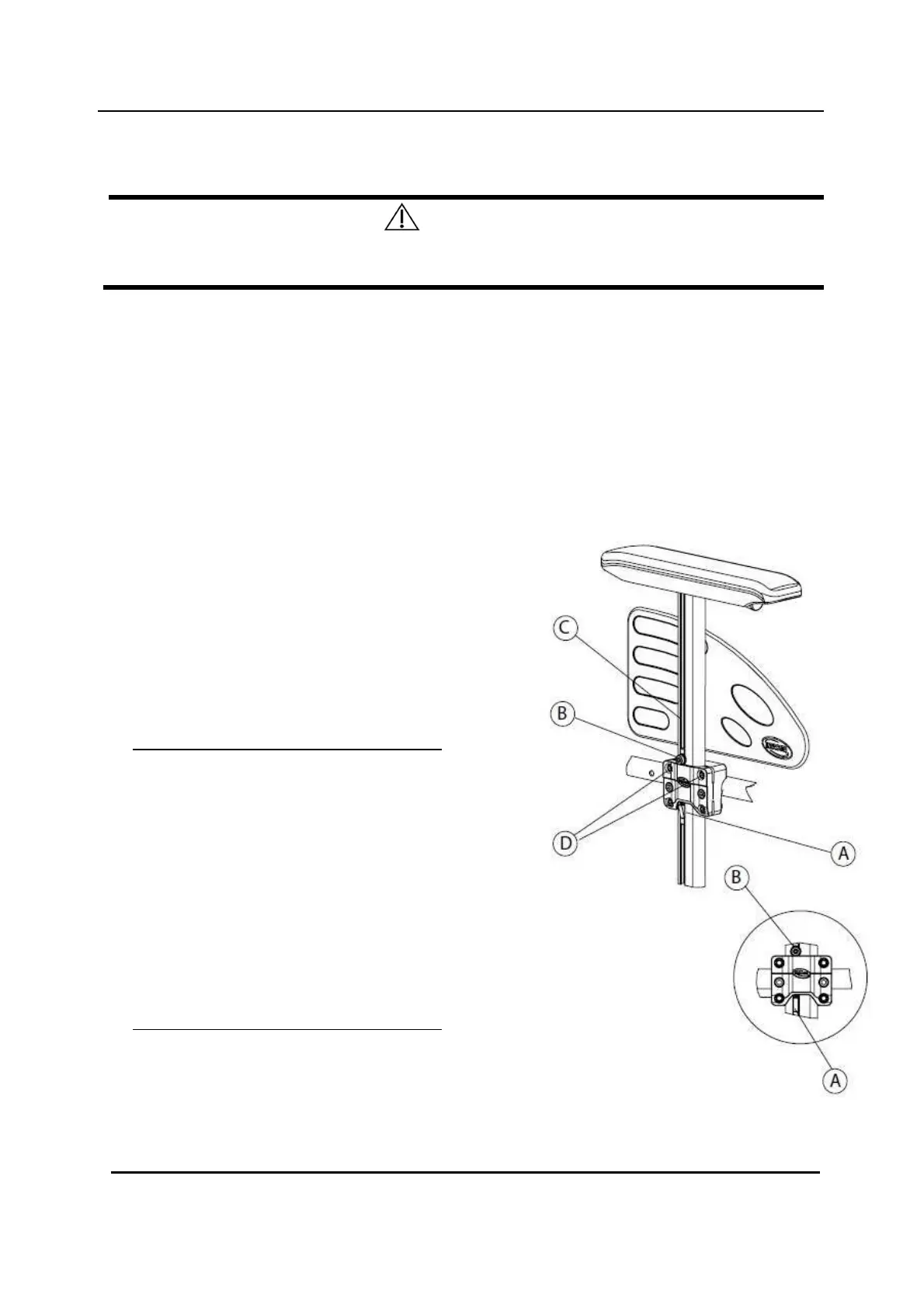

FIGURE 3.1
Removable Armrest
