Invacare Action 3 NG Service Manual

SECTION 2—FRONT HANGERS
9
Installing Angle Adjustable Footplate
NOTE: For this procedure, refer to FIGURE 2.4.
NOTE: This procedure is for individual Angle and Depth Adjustable Footrests standard
version (1) and new version (2) only.
1. Position the angle adjustable footplate on the footrest support tube at the desired
height.
2. Using the locking screw, loosely secure the angle adjustable footplate to the
footrest support tube.
NOTE: Refer to Adjusting Footrest Height paragraph on page 9.
3. Using the mounting screw, adjust to the desired angle by rotating the footplate and
depth by sliding the footplate into the tooth plates support.
4. Using the mounting screw G version (1) or H version (2), secure the Angle
Adjustable Footplate to the footrest tube. Securely tighten.
5. If necessary, repeat STEPS 1 - 4 to adjust remaining Angle Adjustable Footplate.

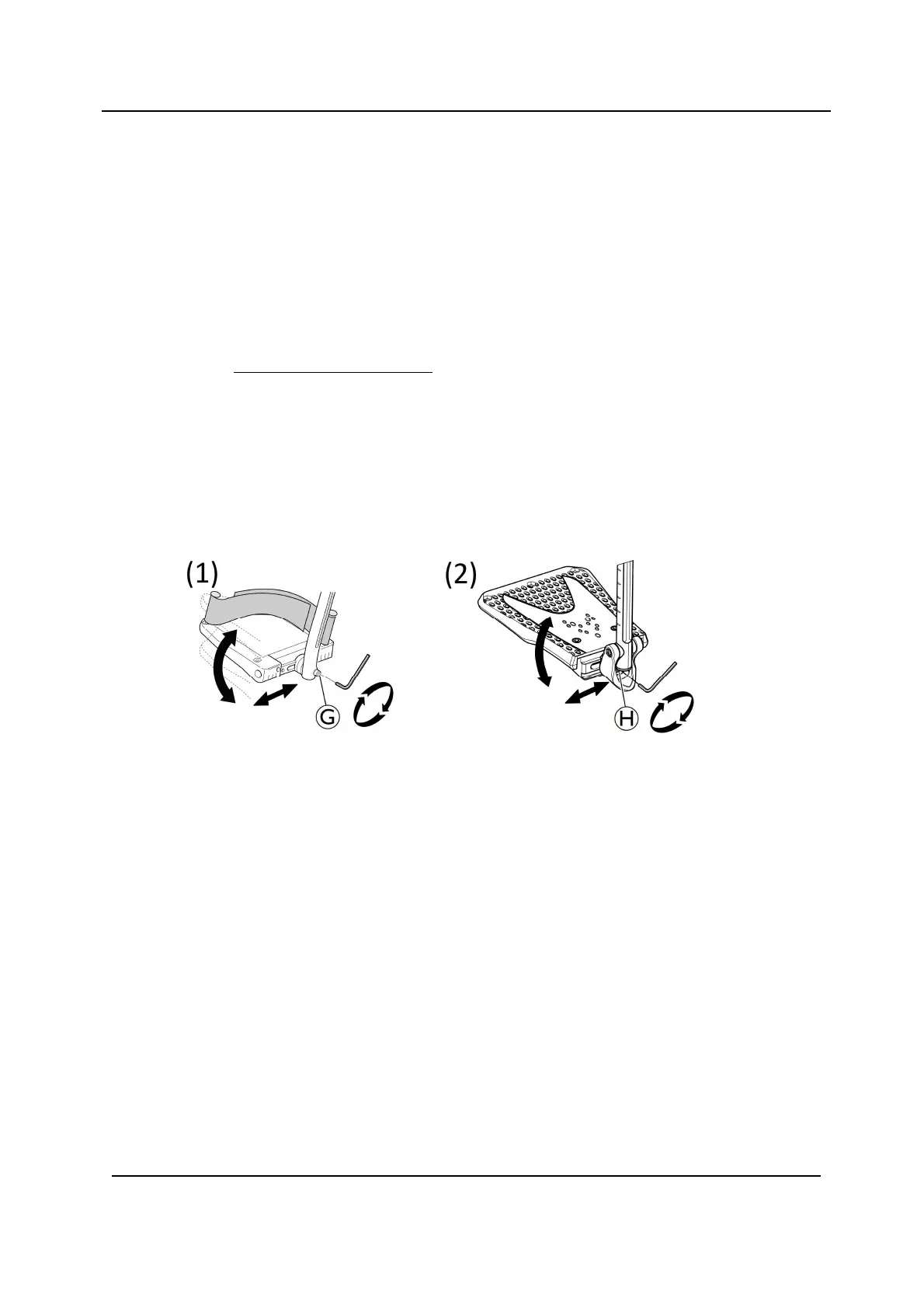

FIGURE 2.4 Installing Angle Adjustable Footplate
Adjusting Elevating Legrest Angle, Height and Calf
pad Height/Depth
NOTE: For this procedure, refer to FIGURE 2.5.
Adjusting the Legrest Angle
1. Loosen locking knob D securing the rotating axle of the elevating legrest.
2. Adjust to desired angle, securely engage the locking knob F.
3. If necessary, repeat STEPS 1 - 2 to adjust remaining elevating legrest angle.
Adjusting the Footplate Height
1. Loosen locking screw B securing the slide tube to the elevating legrest.

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
