Invacare Action 3 NG Service Manual

3 2

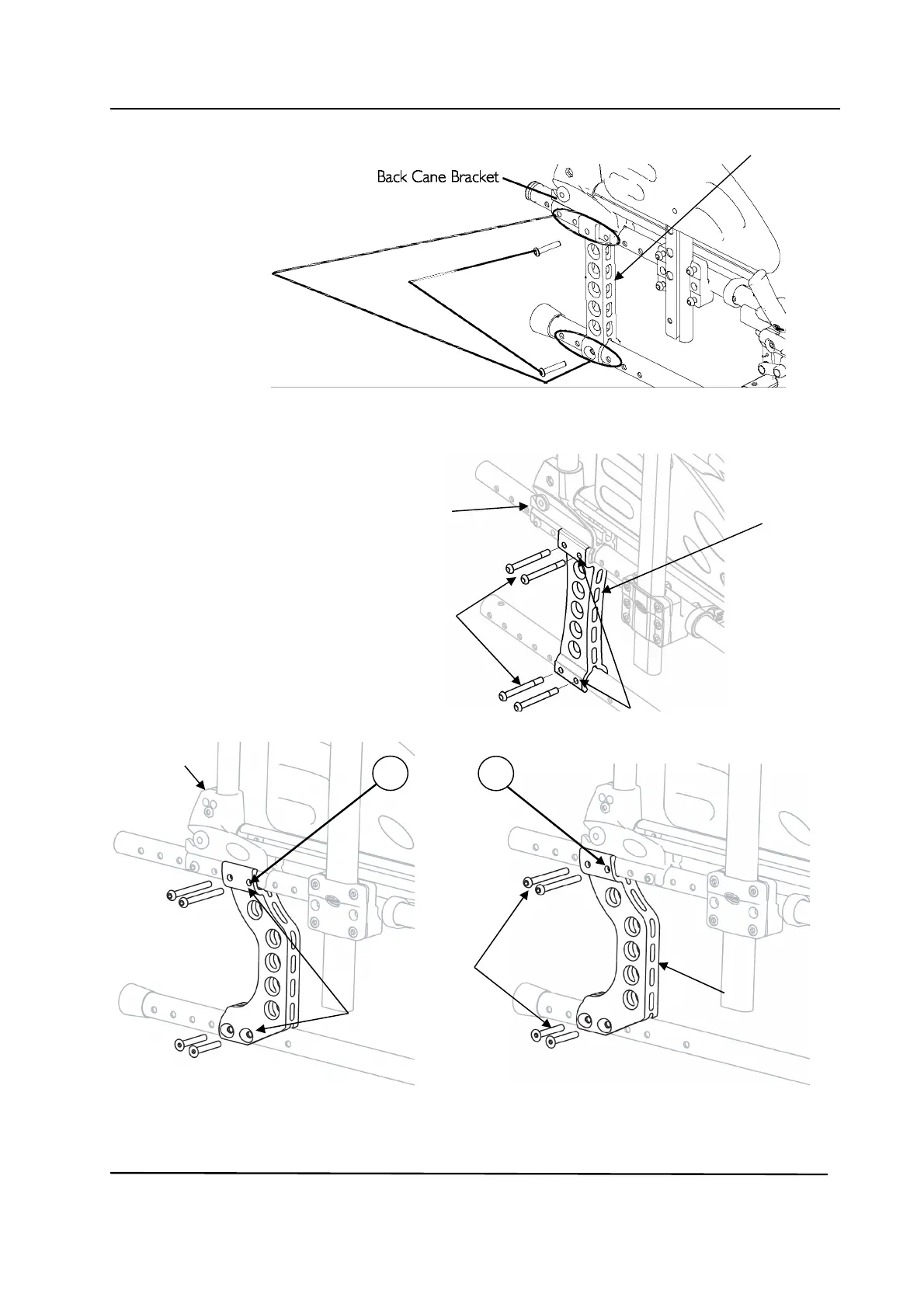

SECTION 5—REAR WHEELS/FRONT CASTERS
FIGURE 5.5 b
Adjusting the Wheelbase Length
Active Position
Adjustment Holes
Axle Plate
Standard
2 Mounting
Screws (M6)
4 Mounting
Screws (M6)
Adjustment Holes
Axle Plate
Active
Back Cane
Bracket
FIGURE 5.5 a
Adjusting the Wheelbase Length
A, B, C & D Positions
FIGURE 5.5 c
Adjusting the Wheelbase Length
Very Active (A) & Passive (B) Positions
4 Mounting
Screws (M6)
Adjustment Holes
Back Cane
Bracket
Axle Plate
Very Active
A
B

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
