Invacare Action 3 NG Service Manual

SECTION 5—REAR WHEELS/FRONT CASTERS
2 8
NOTE: To obtain the desired front seat to floor height (for details, see Seat-to Floor
Height paragraph), it will be necessary to perform one or both of the following:
• Changing the mounting position on the fork. Refer to
Removing/Installing/Repositioning the Caster Assemblies paragraph.
• Changing the fork size or adding/removing height adjustment spacers. Refer to
Adjusting Forks paragraph.
• Changing the rear height positioning and /or the seat angle. Refer to the table
below.
Fixed Axle

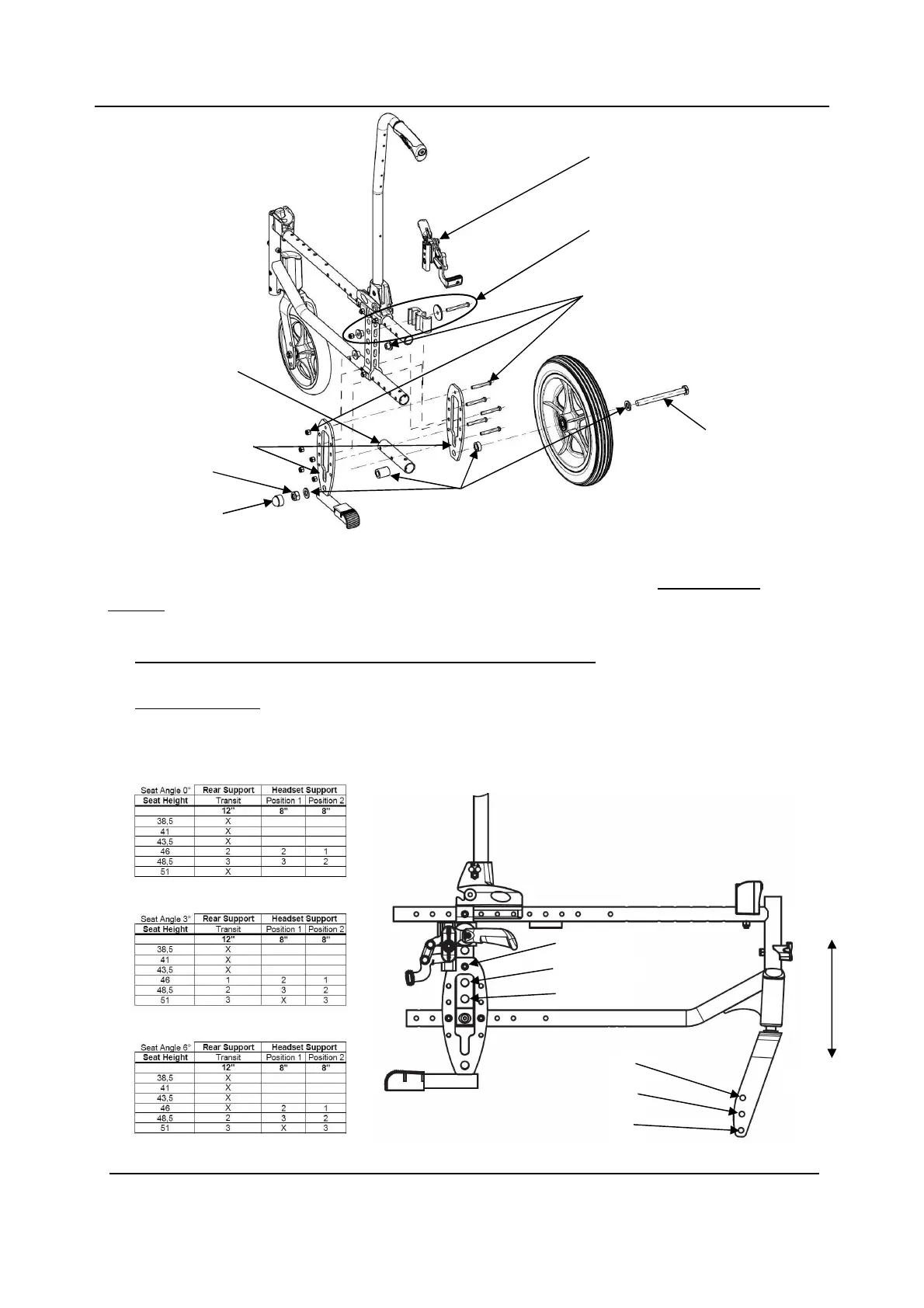

FIGURE 5.1 Removing/Installing Rear Wheels
Axle Brackets
Washers
Locknut
Dust Cap
Transit Brake
Brake Hardware
Axle Brackets
Hardware
Anti-Tippers
Bracket
1 = 46cm
1
2
3
2 = 48.5cm
3 = 51cm
POSITION 1
POSITION 2

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
