Componentsandtheirfunctions

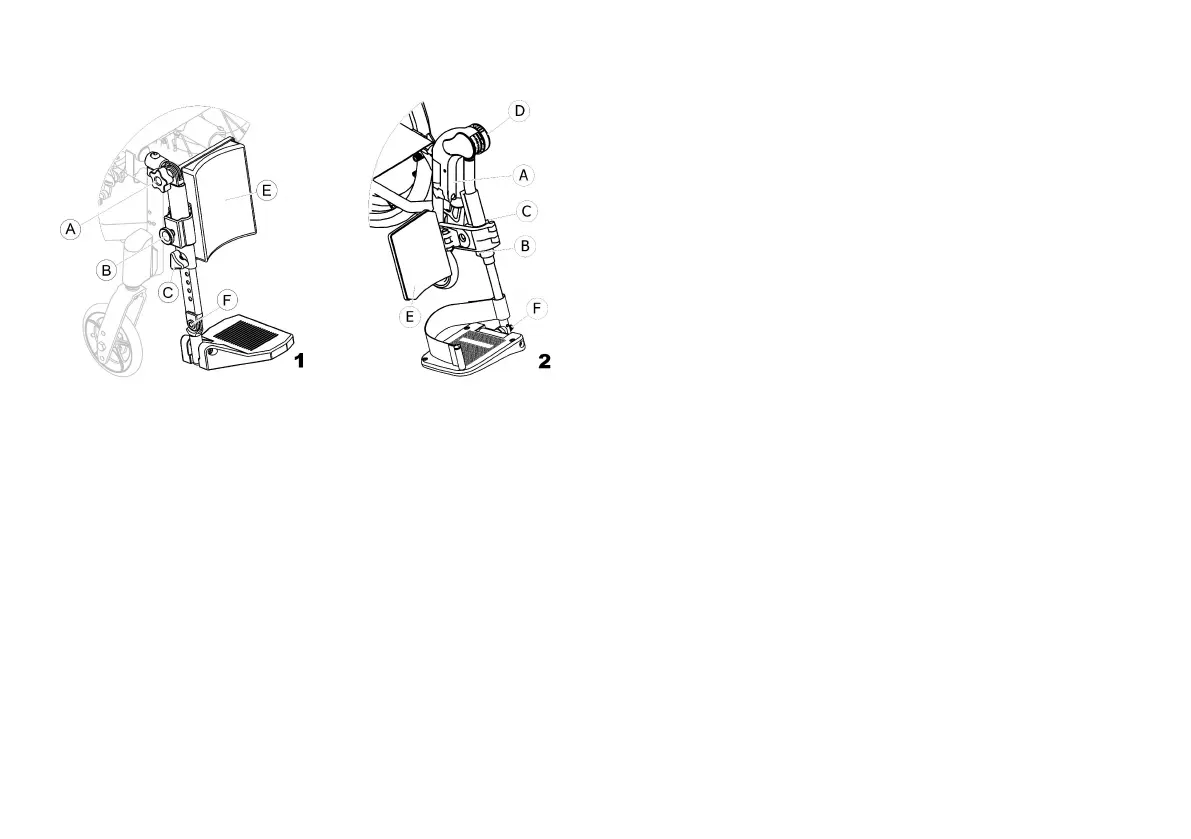

3.8.2Swiveling,elevatinglegrests
Swiveling
•Version1
1.Withonehand,sightlypullthelegrestupwards(up
to20mm)andswivelthelegresttotheoutside.
•Version2
1.ActivatethereleaseleverAandswiveltheleg
reststotheoutside.
Swivelingforwards
•Version1
1.Swivelthelegrestforwards.
2.Sightlypushthelegrestdownwardsuntilit
engages.
•Version2
1.Swivelthelegrestforwardsuntilitengages.
Unhinging
•Version1
1.Pullthelegrestupwards.
•Version2
1.ActivatethereleaseleverA.
2.Pullthelegrestupwards.
Hinging
•Version1
1.Hingethelegrestonthefrontoftheframeand
swivelit.
2.Sightlypushthelegrestdownwardsuntilit
engages.
•Version2
1.Hingethelegrestonthefrontoftheframeand
swivelitforwardsuntilitengages.
Angleadjustment
•Version1
1.RotatetheknobAwithonehandwhilesupporting
thelegrestwithyourotherhand.
2.Whenasuitableangleisobtained,locktheknob
Aintothedesiredposition.
•Version2
Therearesevenpresetpositionsavailableforangle
adjustment.
1.RotatetheknobDwithonehandwhilesupporting
thelegrestwithyourotherhand.
2.Whenasuitableangleisobtained,letgooffthe
knobandthelegrestwilllockintothedesired
position.
1640502-B29
