Invacare Robin Service Manual

Service

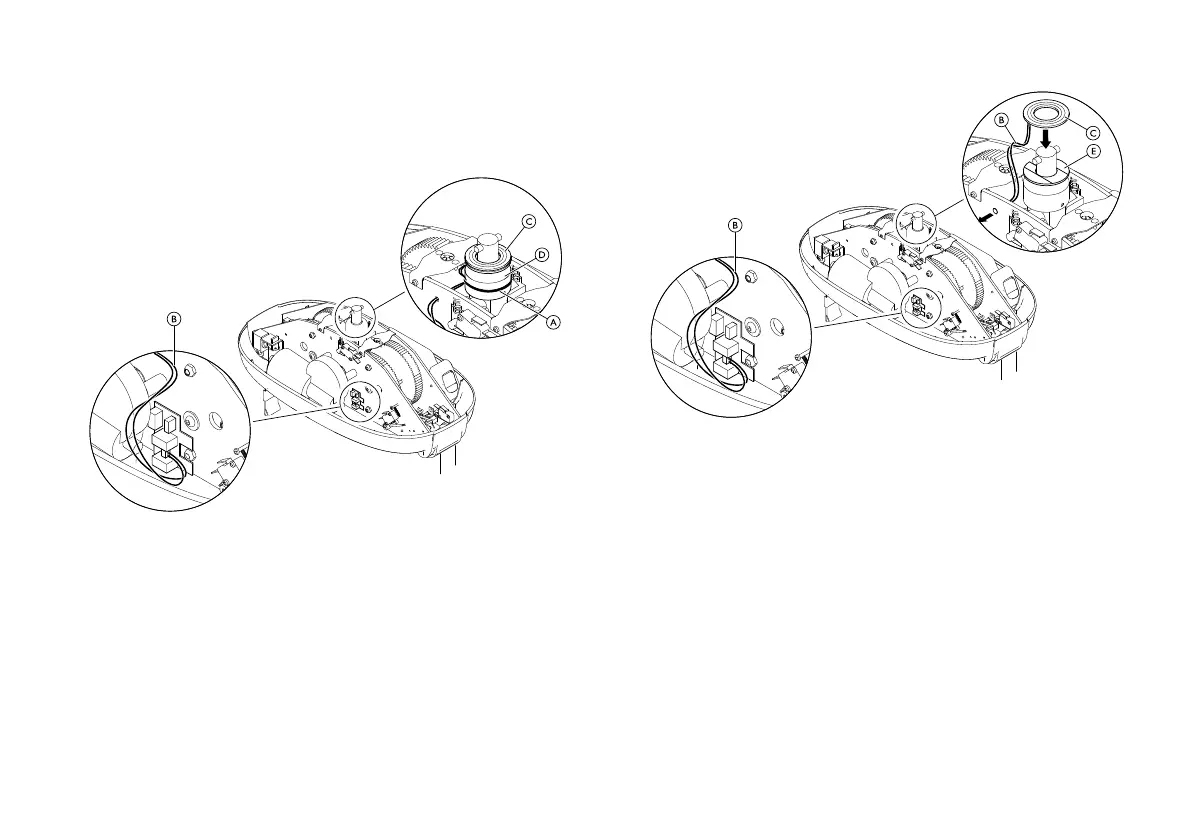

1.RemovethecabletieA.
2.RemovethecontactdisccablesBfromtheMoverPCB,using
aterminalscrewdriver.Notebrowncabletopandbluecable
bottom.
Feedthecablesthroughthechassisplate.
3.CarefullyseparateandremovethecompletecontactdiscC
fromthesuspensionbaseDbyreleasingtheself-adhesivetape.
4.Remove,cleanofftheremainsoftheselfadhesivetape.
5.FitthenewselfadhesivetapeEandthenewcontactdiscC.
6.FeedthecablesBthroughthechassisplateandconnectthem
totheMoverPCB.
7.Re-assemblethehoistandresettheemergencystop.
1586747-A19
