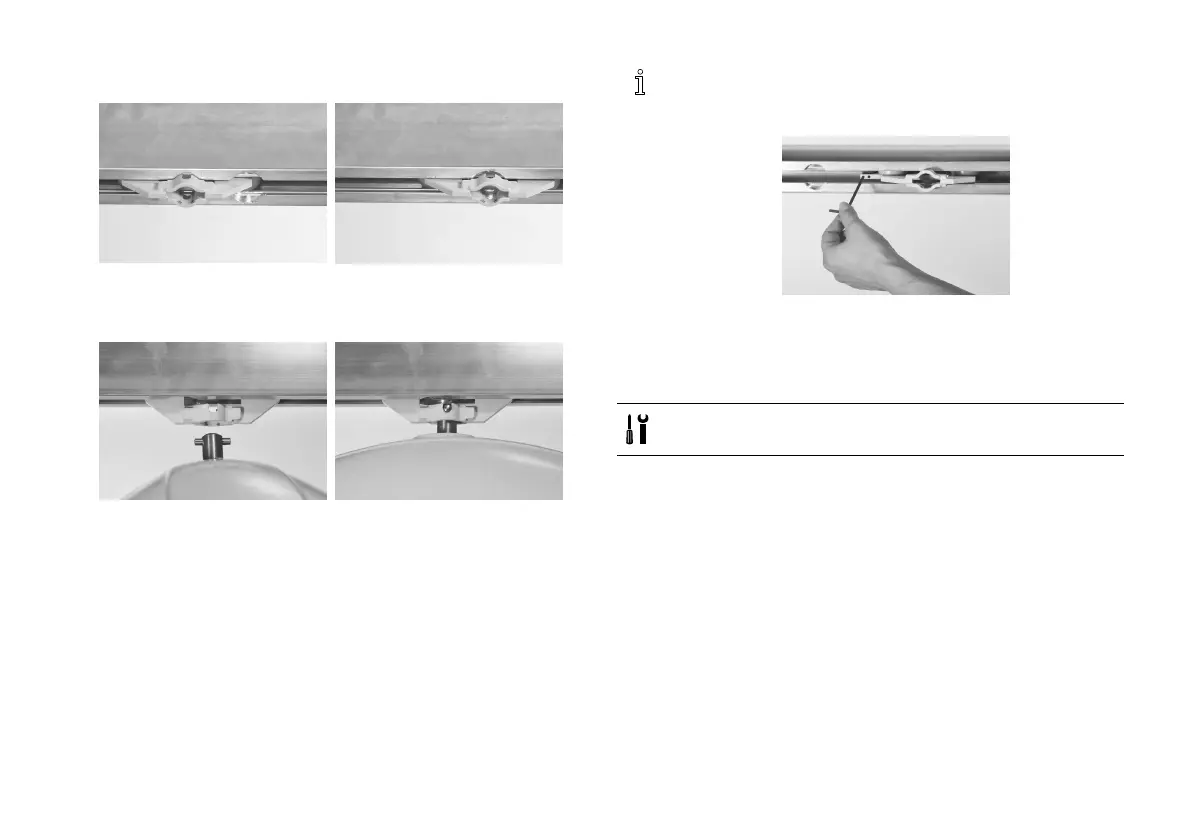

4.LocatethehoisttrolleyattheØ32mmroundrecessintherail.
5.Liftthehoistandpushthesuspensionpinthroughthetrolley
opening.
6.Turnthehoistby90degreestofixitinthetrolley.
7.Connectthehandcontrol.
8.Adjustthelengthoftheemergencystop/loweringcordtowithin
theuser’sreach.
Ifthereisexcessiveresistance,orifthetrolleyunintentionally
rollsbyitselfduetoimbalanceintherailsuspensions,adjust
thefrictionbrakeusinga4mmAllenkey.
3.1.2InstallingRobinMover
Thetrolleyisbuilt-inonthehoist,andcanthereforenotbepre
installedintherail.
Tools:4mmAllenkey;17mmsocketwrench
1.Removetheendstop.
81586747-A
