CHV180 series frequency inverter special for elevator Detailed function description
.38.
Function
Code
Name Description
Setting
Range
Factory
Setting
P1.11 Deceleration
0.001~10.000 0.001~10.000
0.700m/sP
2
P
P1.12
Stop quadric
deceleration
0.001~10.000 0.001~10.000
0.350m/sP
3
P
P1.13
Stop
deceleration
0.001~10.000 0.001~10.000
0.700m/sP
2
P
P1.14 Start speed
0.000~0.250 0.000~0.250
0.000m/s
P1.15
Start holding
time
0.0~5.0s 0.0~5.0s 0.0s
The sharp of S-curve was decided by P1.08~P1.13, the quality of S-curve can directly
affect the comfortable feeling of elevator’s start and stop. The parameters of S-curve
were comprised of start quadric acceleration (P1.08), start acceleration (P1.09),
speed-down quadric deceleration (P1.10), deceleration (P1.11), stop quadric
deceleration (P1.12), stop deceleration (P1.13), start speed (P1.14) and start holding
time (P1.15). The correspondence relation of the parameters and S-curve is as follow:
P1.08
P1.09
P1.08
P1.10
P1.11
P1.10
P1.12
P1.13
P1.12
P1.14
v
t
P1.15

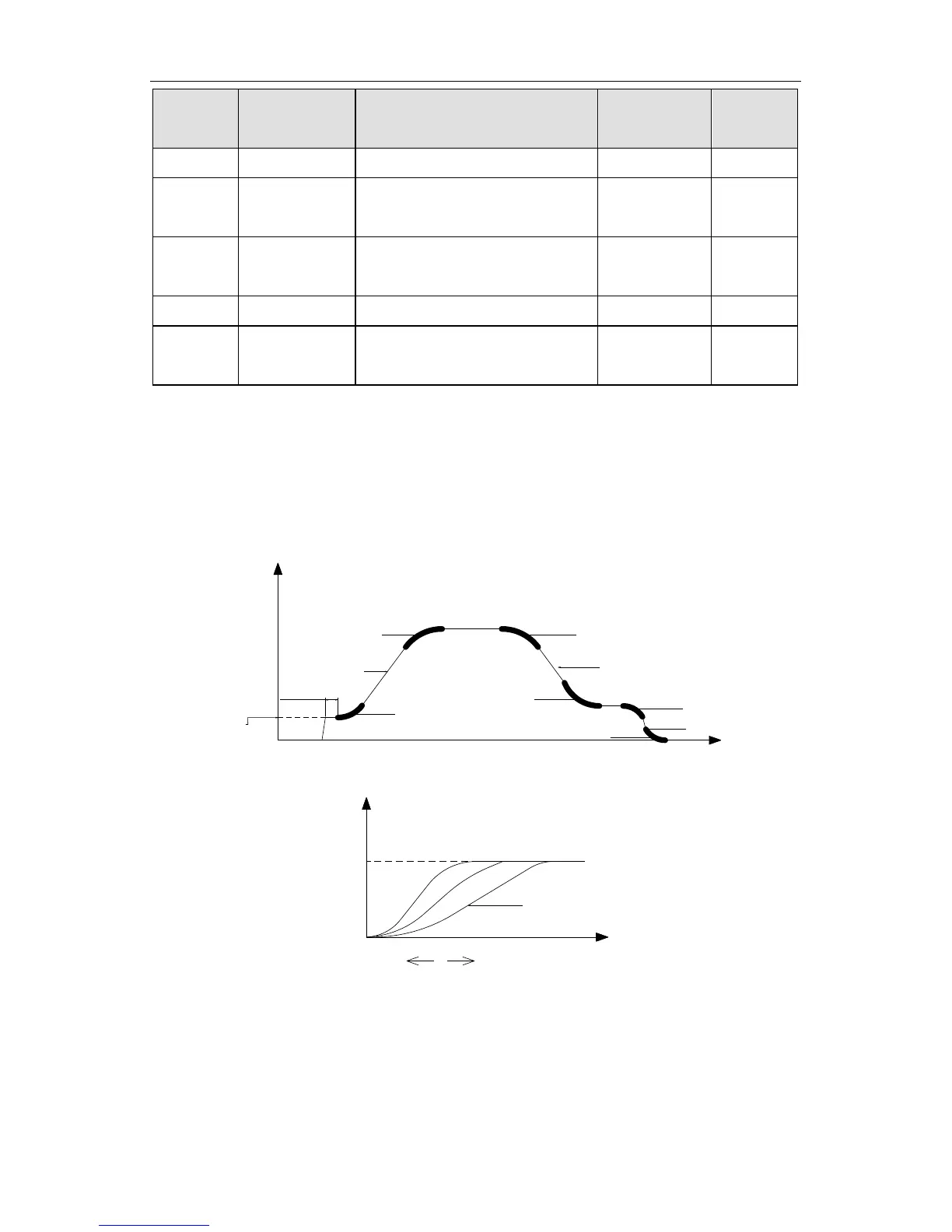

Figure 6.3 S - curve running diagram.
v
t
P1.09
Turn down
Turn up
Figure 6.4 S - curve setting sketch map description.
The above diagram is the sketch map of setting s-curve of accelerated portion, the
s-curve steepens as the parameter was increased, and the s-curve slackens as the
parameter was decreased. S-curve adjustment principle of deceleration segment and
stop segment is the same with principle of acceleration.
