CHV180 series frequency inverter special for elevator Detailed function description
.40.
Function
Code
Name Description
Setting
Range
Factory
Setting
P1.19
Motor
autotuning
acceleration
0.001~10.000 0.001~10.000
0.600
m/sP
2
P
P1.20
Motor
autotuning
deceleration
0.001~10.000 0.001~10.000
0.600m/sP
2
P
These parameters are used to set acceleration and deceleration of motor’s parameter
autotuning.
Function
Code
Name Description
Setting
Range
Factory
Setting
P1.21
Emergency running
speed
0.000~P0.02 0.000~P0.02
0.300m/s
P1.22
Emergency running
acceleration/deceleration
0.001~10.000 0.001~10.000
1.000m/sP
2
P
These parameters are used to set the emergency running speed, acceleration and
deceleration of emergency running.
1. The description of emergency running is as follow: at the time of power-off, the
control system accesses the accumulator into (+) and (-) terminals with bypass
switch. The inverter receives the command of emergency running speed and
running direction from controller and the elevator will stop to the closer aiming
storey automatically.
2. The wiring of emergency running:
AC 3PH
380V±15%
50/60Hz
CHV180
series
KM2
M
KM1
U
V
WT
S
R
KM3
Emergency power
+
-
(+)
(-)
EMER

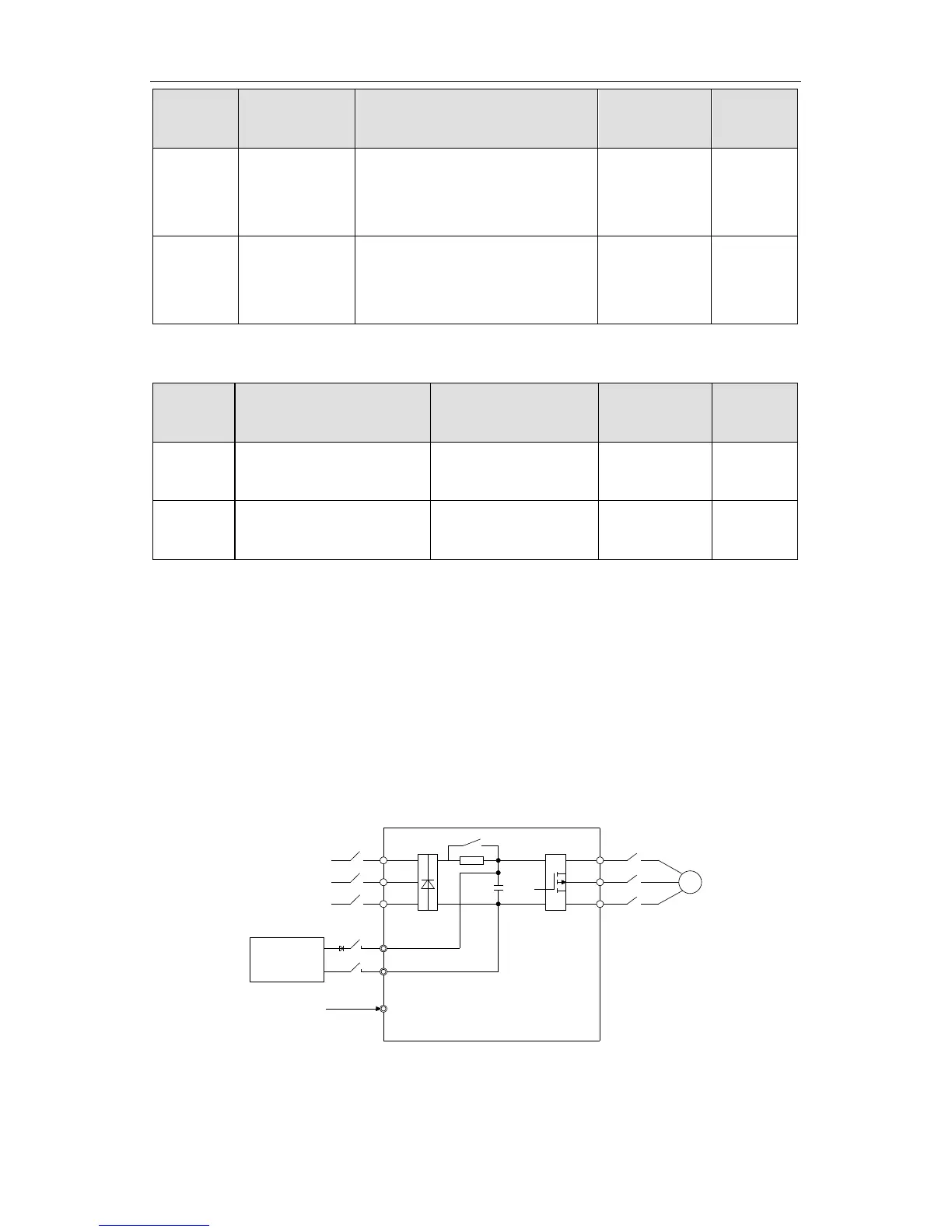

Figure 6.6 The wiring of emergency running.
3. The curve and sequence diagram of emergency running:
