INVT CHV180-004G-4 User Manual

CHV180 series frequency inverter special for elevator Detailed function description
.41.
EMER
FWD/REV
V
P1.22
P1.21
P1.22

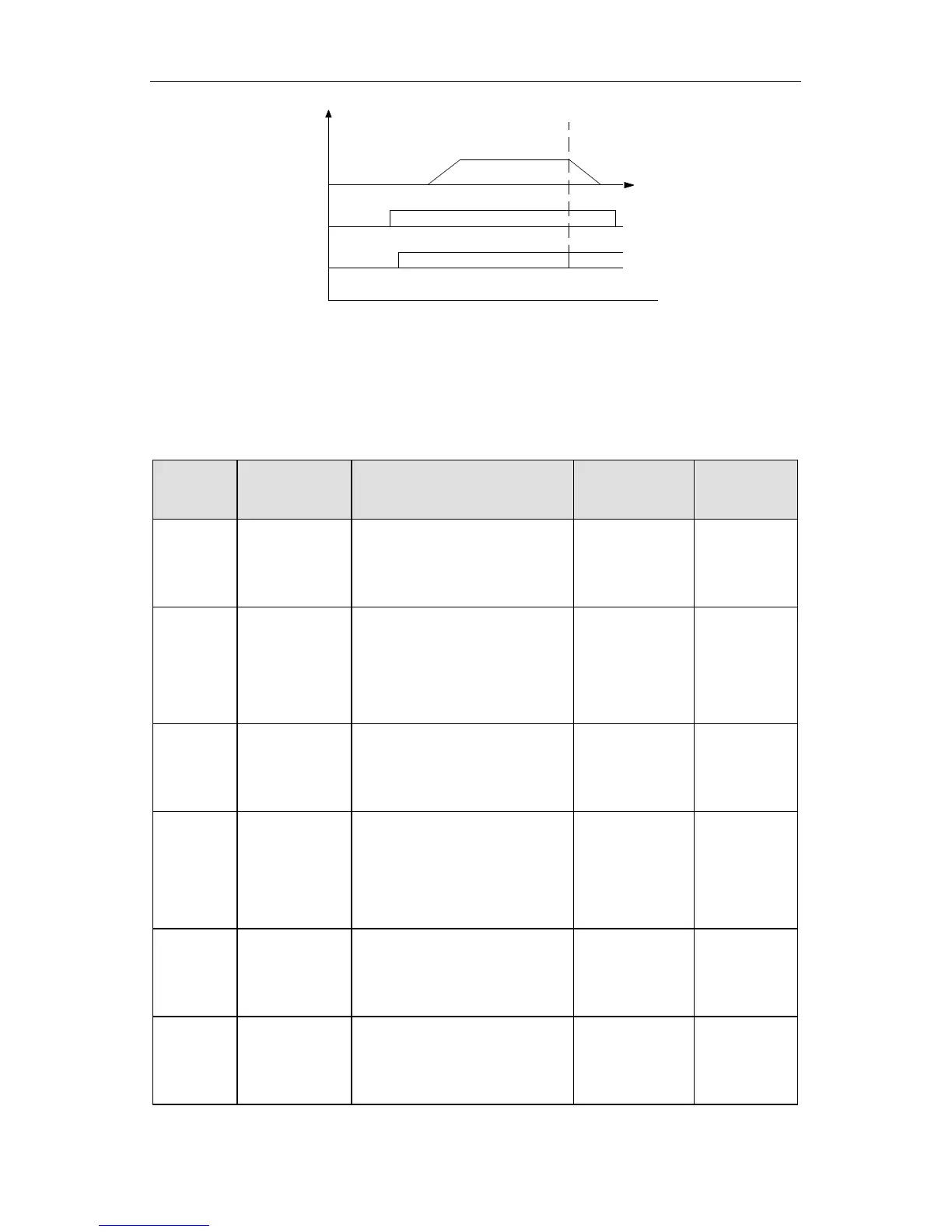

Figure 6.7 The emergency running curve.
Please refer to chapter A.2.4 for detailed emergency running.
Note: if use the function of emergency running, need shield the inverter
protection function of input open-phase (P9.00=0).
The emergency voltage is requested to be greater than DC 250V.
Function
Code
Name Description
Setting
Range
Factory
Setting
P1.23
Forced
deceleration
speed 1
P1.25~10.000 P1.25~10.000
1.000m/s
2
P1.24
Forced
deceleration
speed 1
detection
0.0~P1.26 0.0~P1.26 20.0%
P1.25
Forced
deceleration
speed 2
P1.27~P1.23 P1.27~P1.23
0.900m/s
2
P1.26
Forced
deceleration
speed 2
detection
P1.24~P1.28 P1.24~P1.28
40.0%
P1.27
Forced
deceleration
speed 3
0.001~P1.25 0.001~P1.25
0.700m/sP
2P
P1.28
Forced
deceleration
speed 3
P1.26~100.0% P1.26~100.0%
80.0%
