INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Installation instruction
‐12‐

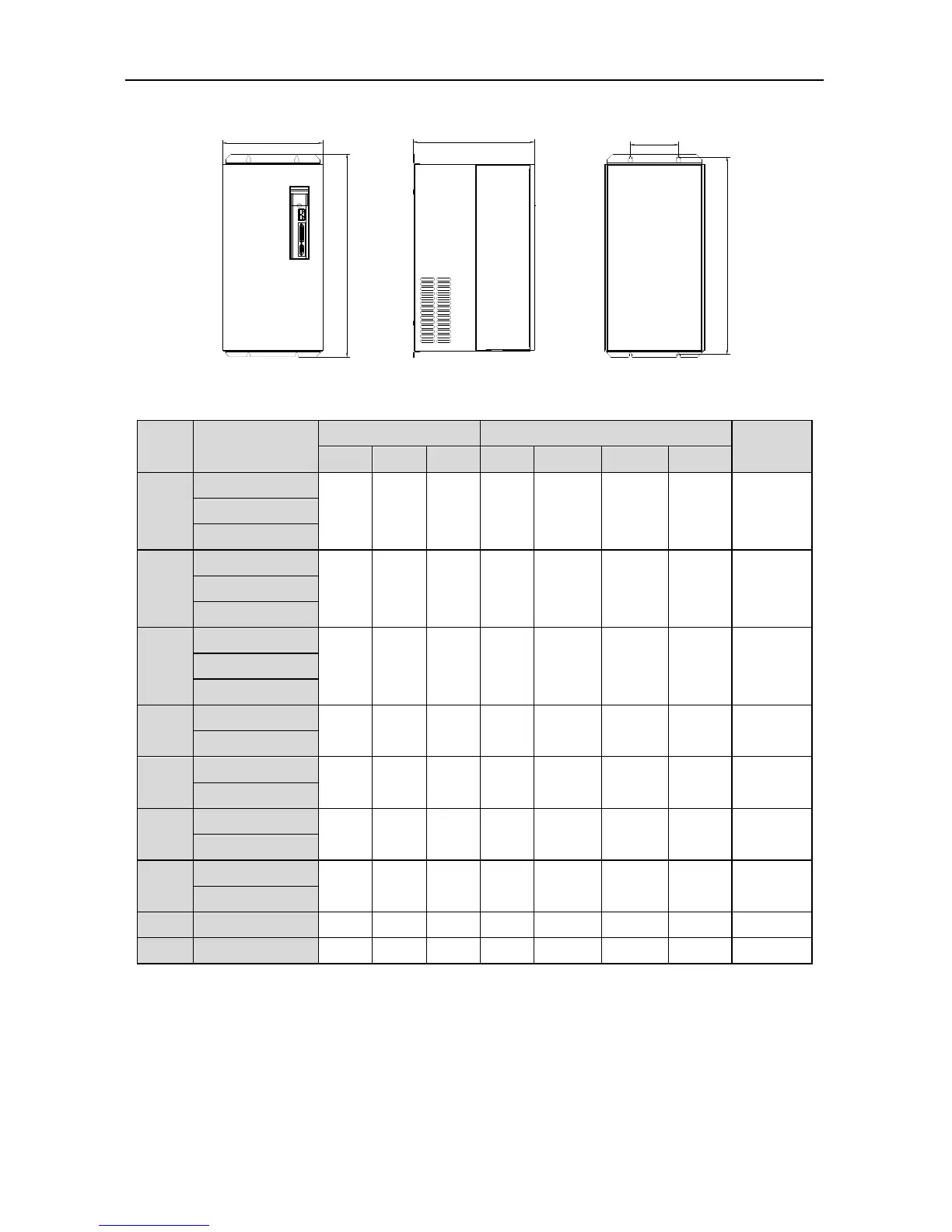

2.1.4 G volume and dimension diagram
H
W
B
A
D
2.1.5 Detailed dimension table
Volume Model
External dimension Installation dimension
Installation
hole (mm)
H(mm) W(mm) D(mm) A (mm) B1 (mm) B2 (mm) W1(mm)
A
SV-DA200-0R1-2
170 45 170 33 162 185 22.5 M4(Φ5)SV-DA200-0R2-2
SV-DA200-0R4-2
B
SV-DA200-0R7-2
170 67 180 54 162 185 25 M4(Φ5)SV-DA200-1R0-2
SV-DA200-1R5-2
D
SV-DA200-2R0-2
245 92 190 79 237 260 45 M4(Φ5)SV-DA200-3R0-2
SV-DA200-4R4-2
B
SV-DA200-1R0-4
170 67 180 54 162 185 25 M4(Φ5)
SV-DA200-1R5-4
C
SV-DA200-2R0-4
170 84 180 71 162 185 42 M4(Φ5)
SV-DA200-3R0-4
D
SV-DA200-4R4-4
245 92 190 79 237 260 45 M4(Φ5)
SV-DA200-5R5-4
F
SV-DA200-7R5-4
342 230 208 210 311 / / M5(Φ6)
SV-DA200-011-4
F2 SV-DA200-015-4 407 255 238 237 384 / / M6(Φ7)
G SV-DA200-022-4 555 270 325 130 540 / / M6(Φ7)
