SV-DA200 series AC servo drives Wiring instruction

‐30‐

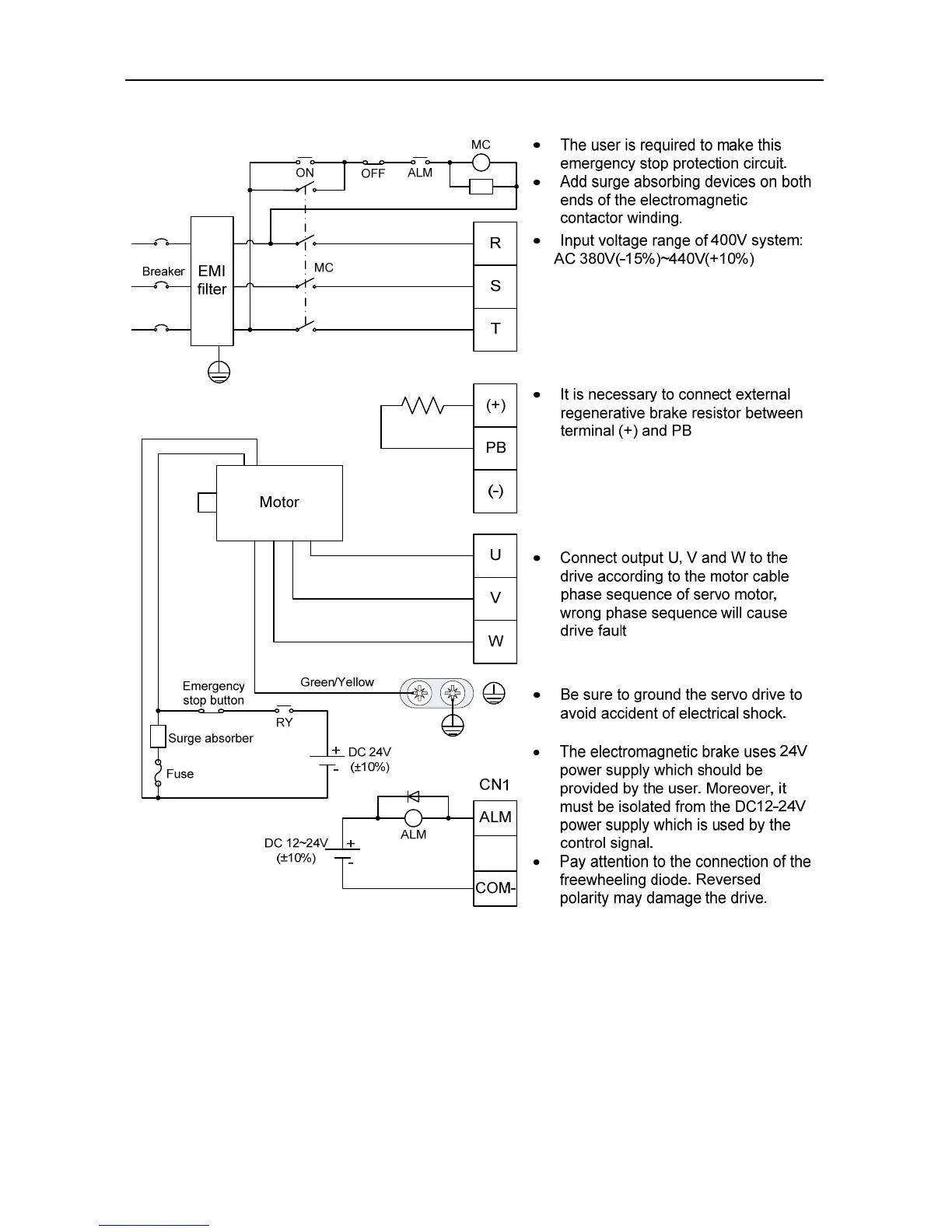

3.2.3 Wiring diagram of three phase 400V (medium power range: 7.5kW~22kW)


